TUPDJN3940027 RC Car Block Diagram - FCC ID RJ2TUPDJN-3940027
FCC ID RJ2TUPDJN-3940027

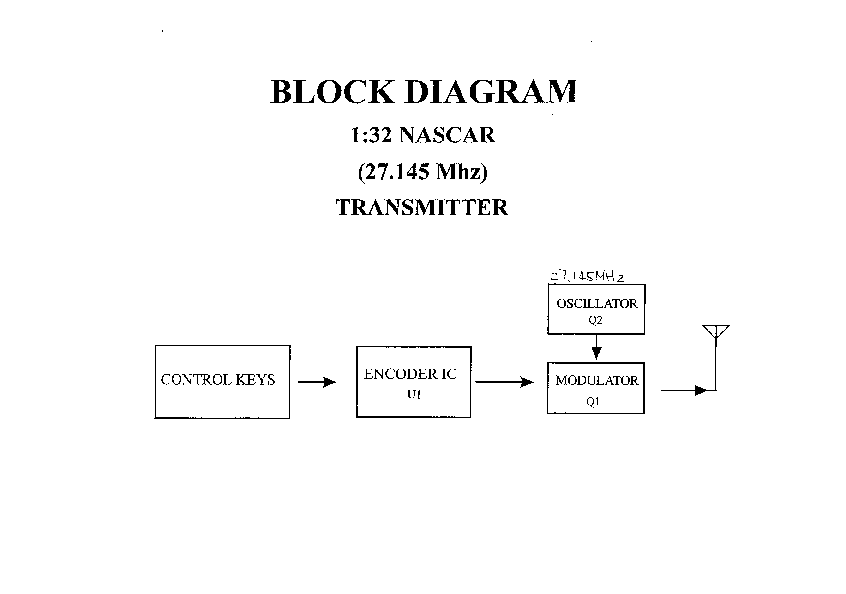

Block Diagram
RC Car
Document preview loads when visible.
Document Details
| FCC ID | RJ2TUPDJN-3940027 |
|---|---|
| Document ID | 369082 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Team Up Product Dev. Co. Ltd. |
| Equipment Class | RC Car |
| Product Code | TUPDJN3940027 |
| Application ID | XmoXIhJQ0EEITLjmwHzHJA== |
| Application Purpose | Original Equipment |
| Application Date | 2003-10-28 |
| Frequency Range | 27.145 MHz |
| FRN | 0003786449 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilbur Ng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-10-28 |
| Available | 2003-10-28 |
| Created | 2003-10-21 |
| Modified | 2003-10-21 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 10831 |
| File SHA-256 | a1ac52e2de00090507becdb3e9f06c955d4a8923a7aeadbcc8fd2837c0b79dfc |
| PDF Metadata Author | ITS ELECTRIC TOY |
| PDF Metadata Producer | HP 9100C Digital Sender |
| FCC.gov Sources | FCC.gov 369082 |
