18000 On board vehicle Wireless Charging Unit... - FCC ID RK7180-00

FCC ID RK7180-00

External photos

On board vehicle Wireless Charging Unit

by Molex CVS Dabendorf GmbH

Document preview loads when visible.

Document Details

FCC IDRK7180-00
Document ID2956326
Document TypeExternal Photos
DescriptionExternal photos

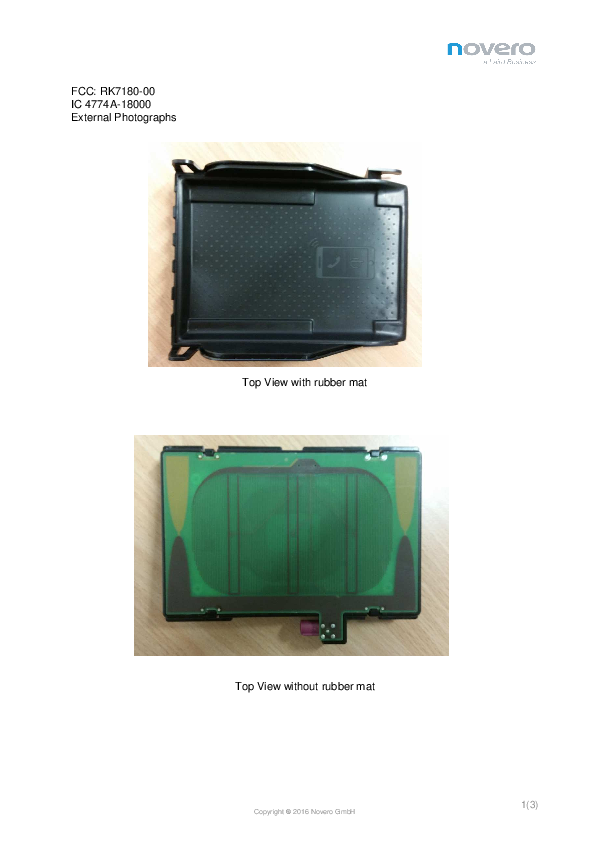

Document TitleExhibit_14_RK7180-00_external_photographs_01
ApplicantMolex CVS Dabendorf GmbH
Equipment ClassOn board vehicle Wireless Charging Unit
Product Code18000
Application ID4dRdfieeB1eARJRT6vc6Zw==
Application PurposeOriginal Equipment
Application Date2016-04-14
Frequency Range0.111 MHz
FRN0009779075
Test FirmLaird Bochum GmbH
Certified ByInes Baufeld Product Acceptance Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2016-04-12
Available2016-04-14
Created2016-04-06
Modified2016-04-06
Pages3
File TypeAdobe Acrobat PDF
File Size433981
File SHA-256550a8068b51e8d04483689c4f0fed68c4741ef0469fe726bbb14aa300071f6df
PDF Metadata Authorbaufeld
PDF Metadata ProducerPDFCreator 2.2.2.0 baufeld
FCC.gov SourcesFCC.gov 2956326
