FRS02 2 Ways Radio Block Diagram - FCC ID RMVFRS02

FCC ID RMVFRS02

block diagram

2 Ways Radio

by Coby Manufacturing Co Ltd

Document preview loads when visible.

Document Details

FCC IDRMVFRS02
Document ID423420
Document TypeBlock Diagram
Descriptionblock diagram

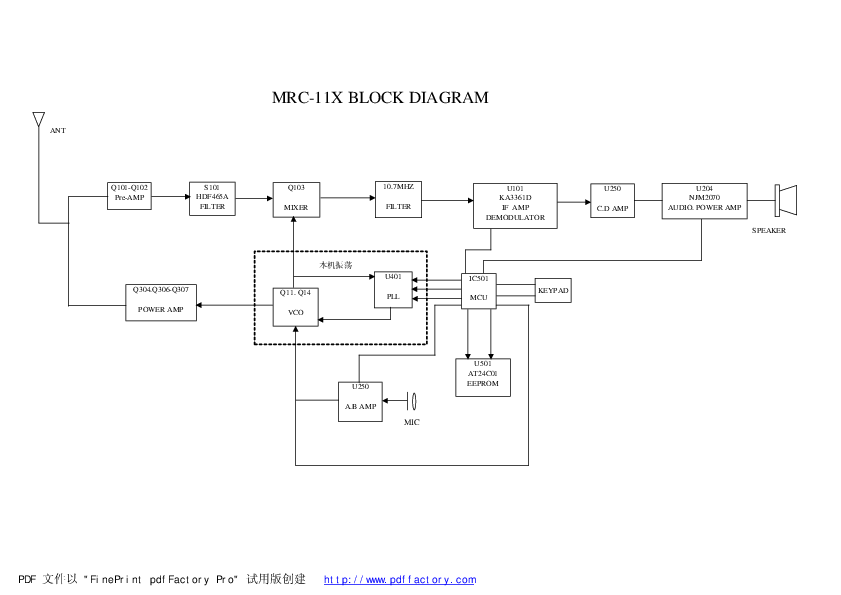

Document TitleMRC-11X BLOCK DIAGRAM.xls
ApplicantCoby Manufacturing Co Ltd
Equipment Class2 Ways Radio
Product CodeFRS02
Application IDI5jqblaRXXTHTIENId/d0Q==
Application PurposeOriginal Equipment
Application Date2004-05-17
Frequency Range462.563-467.713 MHz
FRN0009845710
Test FirmBay Area Compliance Laboratory
Certified BySalley Wong
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-05-17
Available2004-05-17
Created2004-03-30
Modified2004-03-30
Pages1
File TypeAdobe Acrobat PDF
File Size9339
File SHA-256ddf92215532da3d949f6b194fe92fabe3a85c19f10a4f05986d3559ada1df0d1
PDF Metadata Authorsuper man
PDF Metadata ProducerpdfFactory Pro http://www.pdffactory.com pdfFactory Pro v1.57 (Windows XP Chinese)
FCC.gov SourcesFCC.gov 423420
