DS2075 Wireless Optical Mouse Block Diagram - FCC ID RNKDS-2075
FCC ID RNKDS-2075

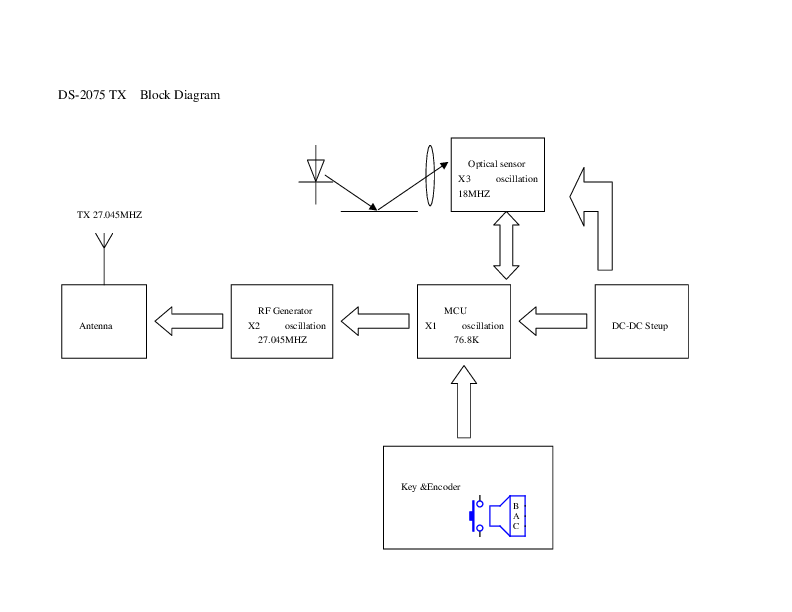

Block Diagram
Wireless Optical Mouse
Document preview loads when visible.
Document Details
| FCC ID | RNKDS-2075 |
|---|---|
| Document ID | 474990 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | DS-2075 Block Diagram |
| Applicant | Eastern Times Technology Co., Ltd |
| Equipment Class | Wireless Optical Mouse |
| Product Code | DS2075 |
| Application ID | DERQeXZpSIeZ9uuLYzl6lw== |
| Application Purpose | Original Equipment |
| Application Date | 2004-09-30 |
| Frequency Range | 27.045 MHz |
| FRN | 0009885336 |
| Test Firm | Bay Area Compliance Laboratory |
| Certified By | Hang Lu |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2004-10-01 |
| Available | 2004-09-30 |
| Created | 2004-09-29 |
| Modified | 2004-09-29 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 11905 |
| File SHA-256 | fa1a3784a8da6c98c694aa80ad2e01ac58f4dd43d4581f6819e5e53368dab158 |
| PDF Metadata Author | agnesf |
| PDF Metadata Producer | Acrobat Distiller 6.0 (Windows) agnesf |
| FCC.gov Sources | FCC.gov 474990 |
