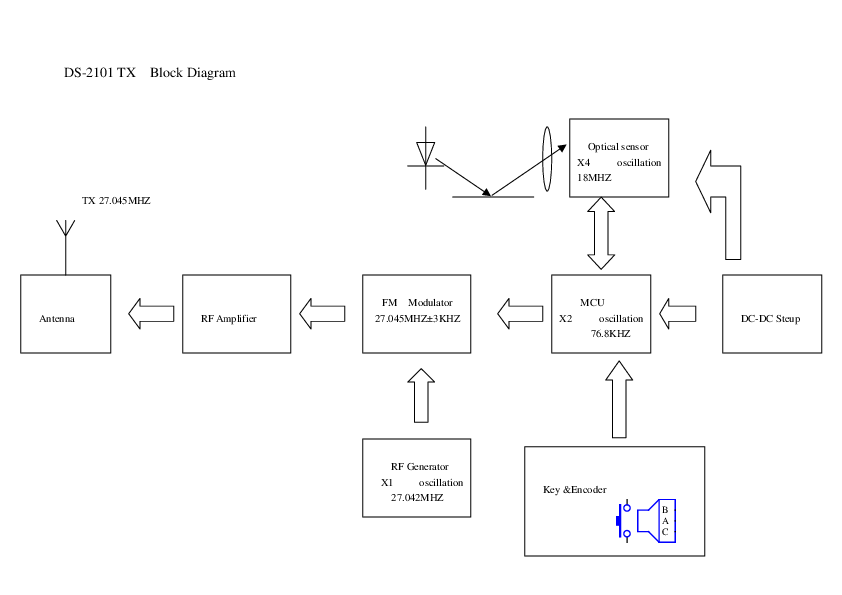

DS2101 Mini RF Wireless Optical Mouse Block... - FCC ID RNKDS-2101

FCC ID RNKDS-2101

Block Diagram

Mini RF Wireless Optical Mouse

by Eastern Times Technology Co., Ltd

Document preview loads when visible.

Document Details

FCC IDRNKDS-2101
Document ID536478
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantEastern Times Technology Co., Ltd
Equipment ClassMini RF Wireless Optical Mouse
Product CodeDS2101
Application IDAGNMBjqrCxQUiFBC1A34LQ==
Application PurposeOriginal Equipment
Application Date2005-04-26
Frequency Range27.042-27.048 MHz
FRN0009885336
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByHang Lu
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-04-27
Available2005-04-26
Created2005-04-22
Modified2005-04-22
Pages1
File TypeAdobe Acrobat PDF
File Size7986
File SHA-256b6a09b3ffe9765b4647a5696550044a0ffdc2a6e47d10dde207b37200ce9e97f
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows)
FCC.gov SourcesFCC.gov 536478
