TX9000TX Thermostat with RF (Transmitter)... - FCC ID RNL-TX9000TX

FCC ID RNL-TX9000TX

Label Artwork and Location

Thermostat with RF (Transmitter)

by Johnson Controls, Inc.

Document preview loads when visible.

Document Details

FCC IDRNL-TX9000TX
Document ID452648
Document TypeID Label/Location Info

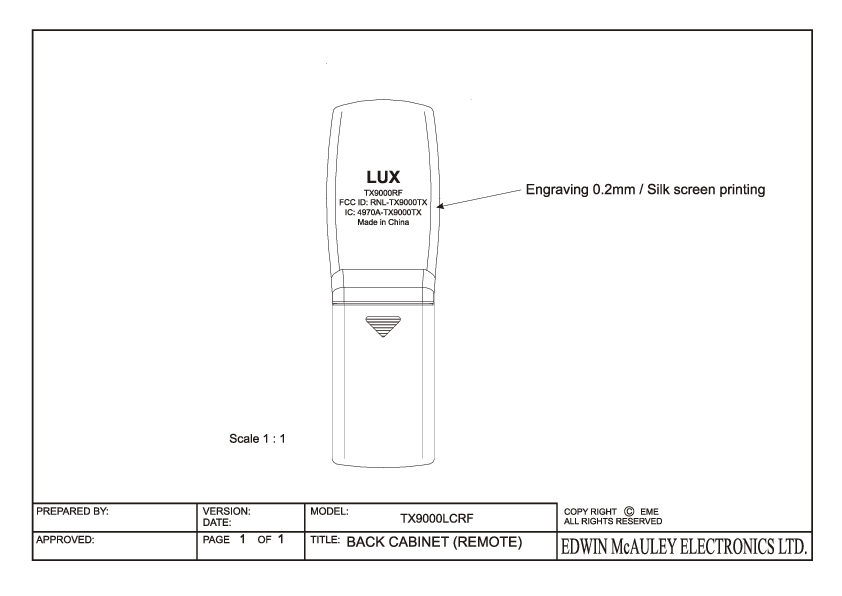

DescriptionLabel Artwork and Location
Document TitleGraphic1
ApplicantJohnson Controls, Inc.
Equipment ClassThermostat with RF (Transmitter)
Product CodeTX9000TX
Application IDAenVEJI7IS9rCiYelsvWgw==
Application PurposeOriginal Equipment
Application Date2004-07-23
Frequency Range315 MHz
FRN0022500060
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-07-23
Available2004-07-23
Created2004-03-24
Modified2004-03-26
Pages1
File TypeAdobe Acrobat PDF
File Size71560
File SHA-256745240eceb97fa8a2c96fa883c4158887af82b8bbbd1207c9cabbbfce40be6a0
PDF Metadata Authorkl
PDF Metadata ProducerCorel PDF Engine Version 10.427 kl
FCC.gov SourcesFCC.gov 452648
