16965R1 RC Toy Block Diagram - FCC ID RNX16965R1
FCC ID RNX16965R1

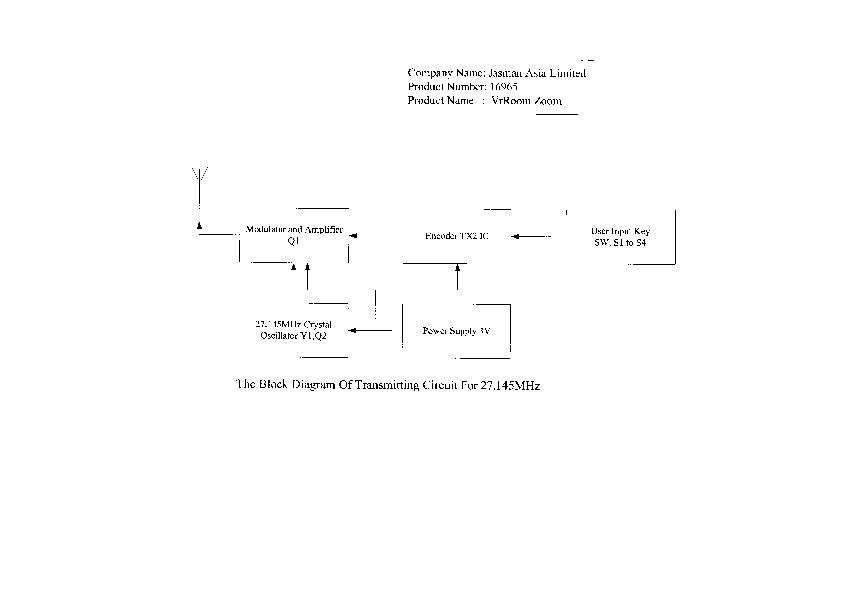

Block Diagram
RC Toy
Document preview loads when visible.
Document Details
| FCC ID | RNX16965R1 |
|---|---|
| Document ID | 475206 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Jasman Asia Ltd. |
| Equipment Class | RC Toy |
| Product Code | 16965R1 |
| Application ID | ojyejT5YKuUDTkg6+Y6o1A== |
| Application Purpose | Original Equipment |
| Application Date | 2004-10-04 |
| Frequency Range | 27.145 MHz |
| FRN | 0017803958 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilbur Ng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2004-10-04 |
| Available | 2004-10-04 |
| Created | 2004-09-24 |
| Modified | 2004-09-24 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 10996 |
| File SHA-256 | 3101d647a4a45121d98a9ab4e7b367d7cda32eee8d01827bb5cedeebc976ce4d |
| PDF Metadata Author | ITS ELECTRIC TOY |
| PDF Metadata Producer | HP 9100C Digital Sender |
| FCC.gov Sources | FCC.gov 475206 |
