IS2102T Instant Switch (433.8MHz Tx) Block... - FCC ID ROC-IS2102T

FCC ID ROC-IS2102T

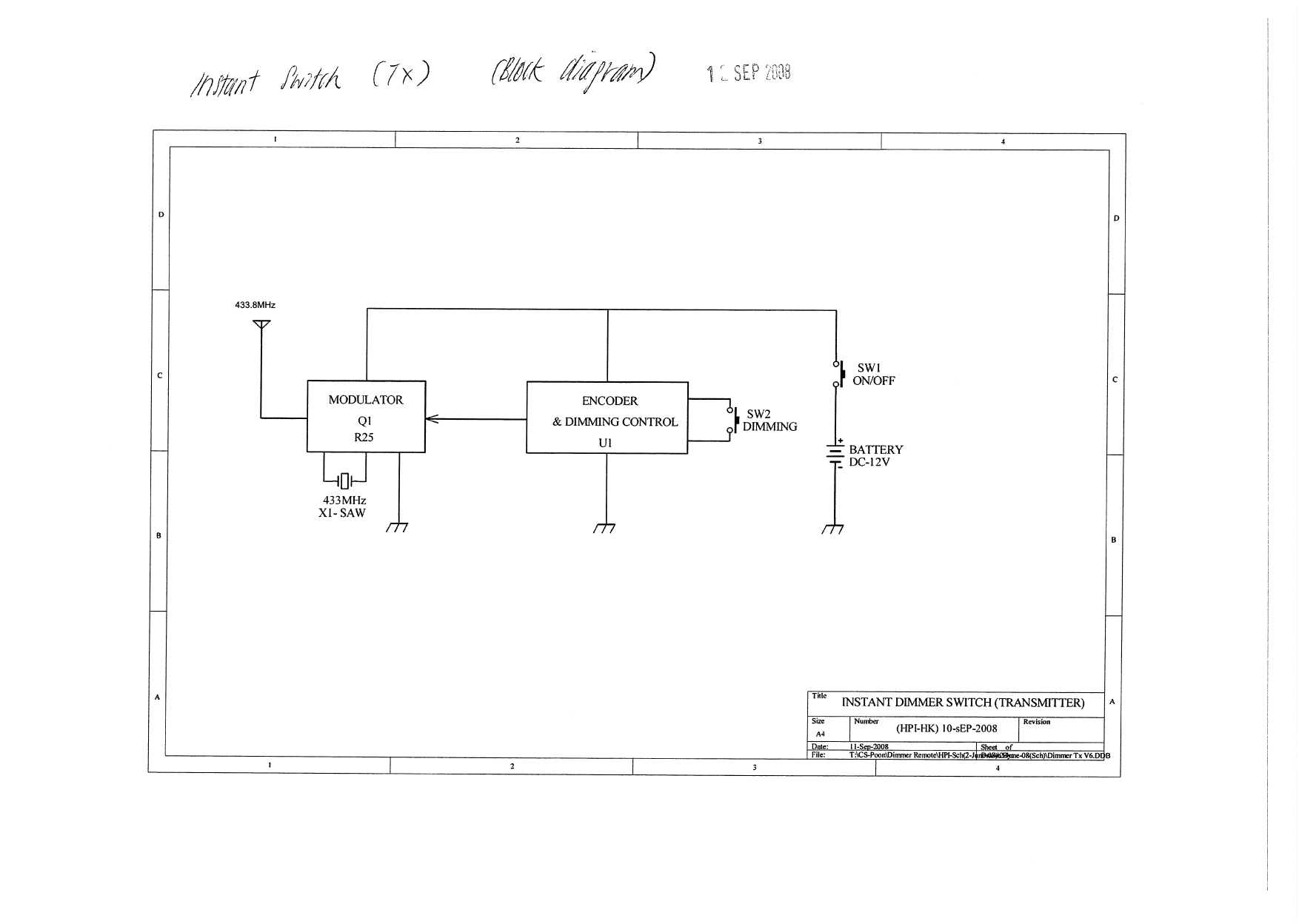

Block Diagram

Instant Switch (433.8MHz Tx)

by HPI Hong Kong Limited

Document preview loads when visible.

Document Details

FCC IDROC-IS2102T
Document ID1014855
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantHPI Hong Kong Limited
Equipment ClassInstant Switch (433.8MHz Tx)
Product CodeIS2102T
Application IDU3LsM1qsE/eoaPQ+8510YA==
Application PurposeOriginal Equipment
Application Date2008-10-15
Frequency Range433.8 MHz
FRN0021007067
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByBen Ho Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-10-15
Available2008-10-15
Created2008-10-02
Modified2008-10-02
Pages1
File TypeAdobe Acrobat PDF
File Size155290
File SHA-2560fc06dbe0804119742d82cddc6a1afe568bb54a67e1cd14ad3b0b1b06e528484
PDF Metadata AuthorNone
PDF Metadata CreatorNone
PDF Metadata ProducerNone
FCC.gov SourcesFCC.gov 1014855
