FCC ID RRKWAPAC14
11ac 4T4R enterprise AP
by Alpha Networks Inc.
Grantee Code: RRK Product Code: WAPAC14
Latest application date: 2015-11-24
Device Images
FCC ID Device Details
| FCC ID | RRKWAPAC14 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | RRK |
| Product Code | WAPAC14 |
| Applicant Business | Alpha Networks Inc. 🇹🇼 |
| Related Domains |  alphanetworks.com |
| Equipment Class | 11ac 4T4R enterprise AP |
| Test Firm | Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-11-24 |
| 5180-5240 MHz | Original Equipment | 2015-11-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual.pdf | Users Manual | 2015-11-24 | PDF 1,021 KB |

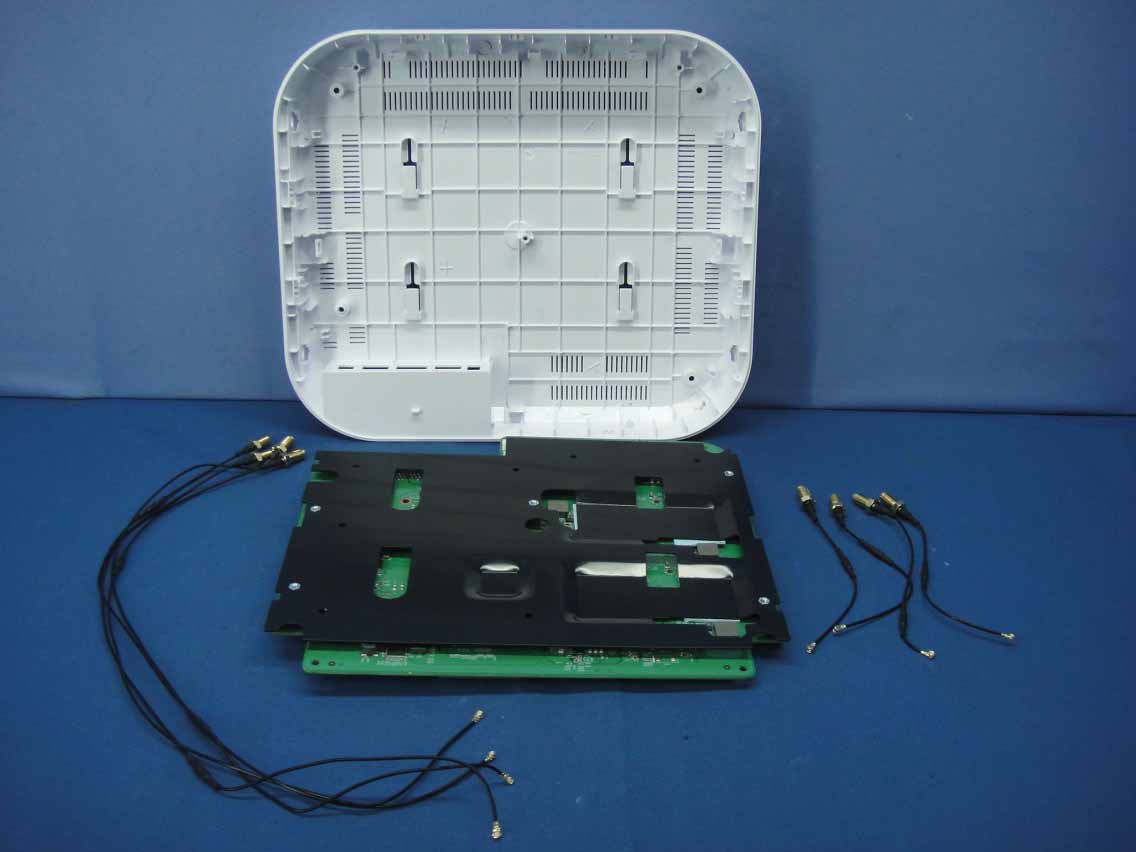

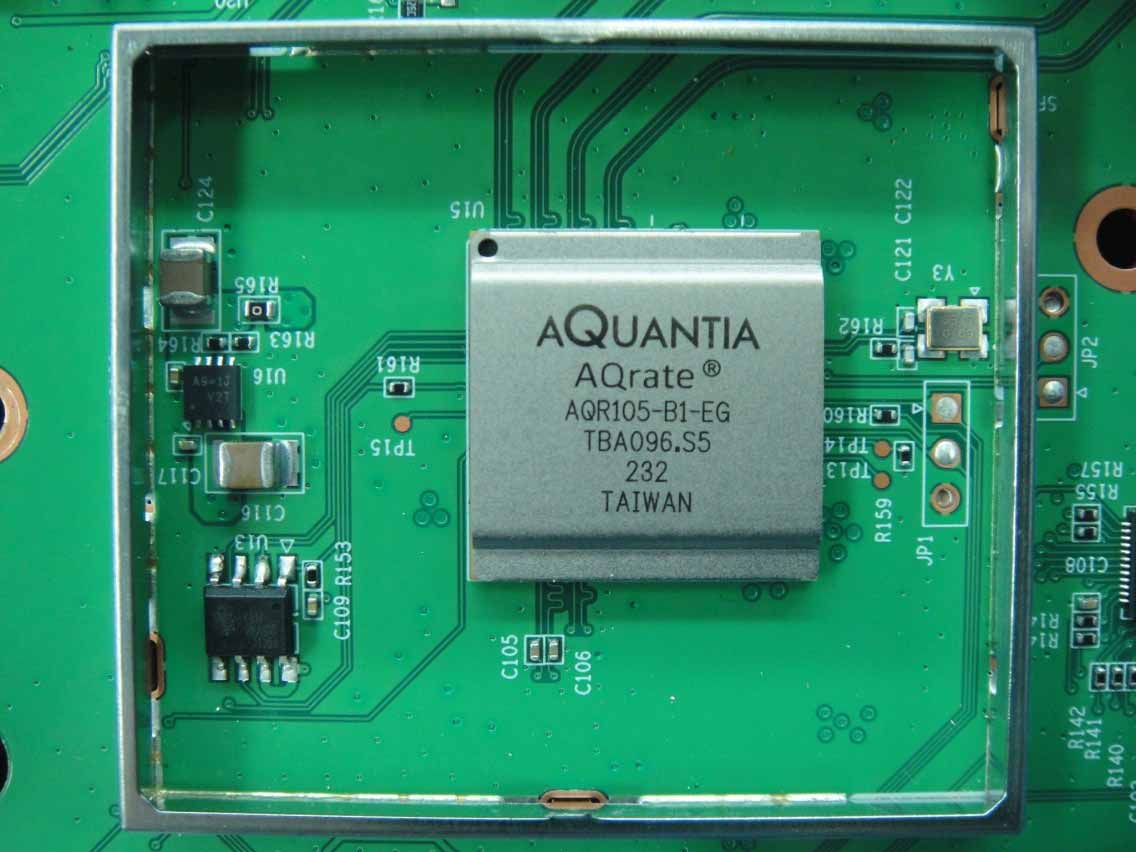

| Internal Photos.pdf | Internal Photos | 2015-11-24 | PDF 2.4 MB |
| External Photos.pdf | External Photos | 2015-11-24 | PDF 514.5 KB |
| ID Label Location Information.pdf | ID Label/Location Info | 2015-11-24 | PDF 593.6 KB |
| Test Setup Photo.pdf | Test Setup Photos | 2015-11-24 | PDF 357.3 KB |
| Test Report (DTS).pdf | Test Report | 2015-11-24 | PDF 3.1 MB |
| Test Report (NII).pdf | Test Report | 2015-11-24 | PDF 1 MB |
| Attestation - Channel and Mode Declaration.pdf | Attestation Statements | 2015-11-24 | PDF 87.5 KB |
| Cover Letter - Agent Authorization.pdf | Cover Letter(s) | 2015-11-24 | PDF 98.8 KB |
| Cover Letter - Confidentiality Request - Long Term.pdf | Cover Letter(s) | 2015-11-24 | PDF 86 KB |
| RF Exposure Information (MPE).pdf | RF Exposure Info | 2015-11-24 | PDF 328.1 KB |
| Block Diagram rev.pdf Metadata only | Block Diagram | PDF 330 KB | |
| Schematics for 2.4G rev.pdf Metadata only | Schematics | PDF 264.1 KB | |
| Schematics for 5G rev.pdf Metadata only | Schematics | PDF 236.5 KB | |
| Operational Description_rev.pdf Metadata only | Operational Description | PDF 97.8 KB | |
| Software Operating Description rev.pdf Metadata only | Operational Description | PDF 119.5 KB |
Application Information
| Application ID | z+VzF6OCL2erSsCoM2m+qg== |
|---|---|
| Final Action Date | 2015-11-24 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0010111144 |
| Model | WAPAC14 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 11ac 4T4R enterprise AP |
| Responsible Party | Kelly Tsai, Director, kelly_tsai@alphanetworks.com , 886-3-5636666 |
| Test Firm | Richard Chen, Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch, richard.chen@bureauveritas.com  , +886-3-2600884 |
| TCB Email | certification@curtis-straus.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 37 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz and 40 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| z+VzF6OCL2erSsCoM2m+qg== | 2015-11-24 | Original Equipment |
| PPKfbMYpMeFlfid5F2iTFA== | 2015-11-24 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application z+VzF6OCL2erSsCoM2m+qg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Alpha Networks Inc. |
| No.8, Li-shing 7th Rd., |
| Science-based Industrial Park |
| Hsinchu, 300 Taiwan |
| Attention: Kelly Tsai , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RRKWAPAC14 |
| Name of Grantee: | Alpha Networks Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 11ac 4T4R enterprise AP |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.743 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 37 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application z+VzF6OCL2erSsCoM2m+qg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Alpha Networks Inc. No.8, Li-shing 7th Rd., Science-based Industrial Park Hsinchu, 300 Taiwan |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Attention: Kelly Tsai , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RRKWAPAC14 |
| Name of Grantee: | Alpha Networks Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 11ac 4T4R enterprise AP |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.743 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 37 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Alpha Networks Inc. |
| No.8, Li-shing 7th Rd., |
| Science-based Industrial Park |
| Hsinchu, 300 Taiwan |
| Attention: Kelly Tsai , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RRKWAPAC14 |
| Name of Grantee: | Alpha Networks Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 11ac 4T4R enterprise AP |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.577 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.858 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 37 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application PPKfbMYpMeFlfid5F2iTFA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Alpha Networks Inc. No.8, Li-shing 7th Rd., Science-based Industrial Park Hsinchu, 300 Taiwan |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Attention: Kelly Tsai , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RRKWAPAC14 |
| Name of Grantee: | Alpha Networks Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 11ac 4T4R enterprise AP |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.577 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.858 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 37 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
