S619S620R PS2 Host Wireless Controller... - FCC ID RUPS619S620R

FCC ID RUPS619S620R

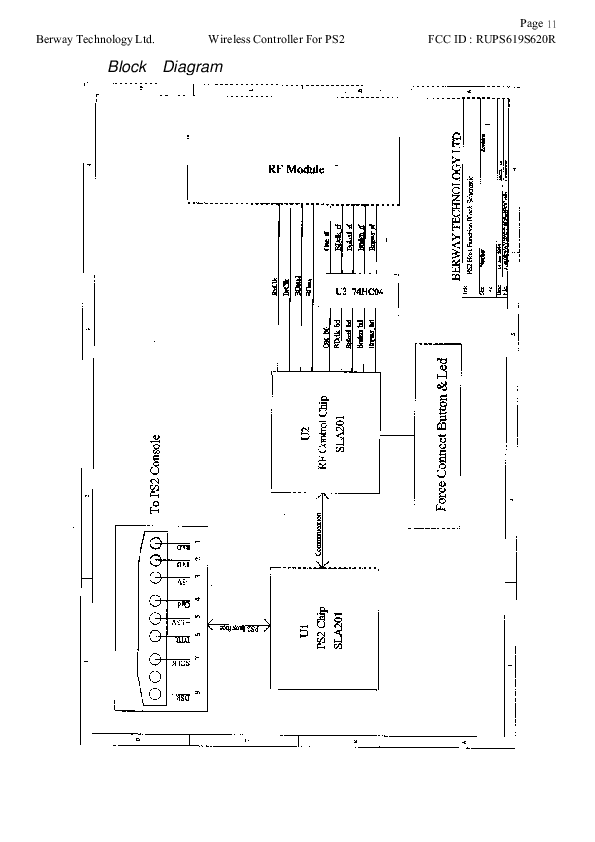

BLOCK DIAGRAM

PS2 Host Wireless Controller

by Berway Technology Ltd.

Document preview loads when visible.

Document Details

FCC IDRUPS619S620R
Document ID404846
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
ApplicantBerway Technology Ltd.
Equipment ClassPS2 Host Wireless Controller
Product CodeS619S620R
Application IDtFk81CixRmssPtfE1o/OQQ==
Application PurposeOriginal Equipment
Application Date2004-03-12
Frequency Range2402-2481 MHz
FRN0010342194
Test FirmAudix Technology (Shenzhen) Co.
Certified ByHau Kit Lam Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-03-15
Available2004-03-12
Created2004-03-10
Modified2004-03-10
Pages1
File TypeAdobe Acrobat PDF
File Size28209
File SHA-2562bb18fdfbb386ff1a5ef59b18a5187ebdb53032da8ea453e96ea1d44b5096577
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 404846
