2579 RFID TRANSMITTER Block Diagram - FCC ID RUQ2579
FCC ID RUQ2579

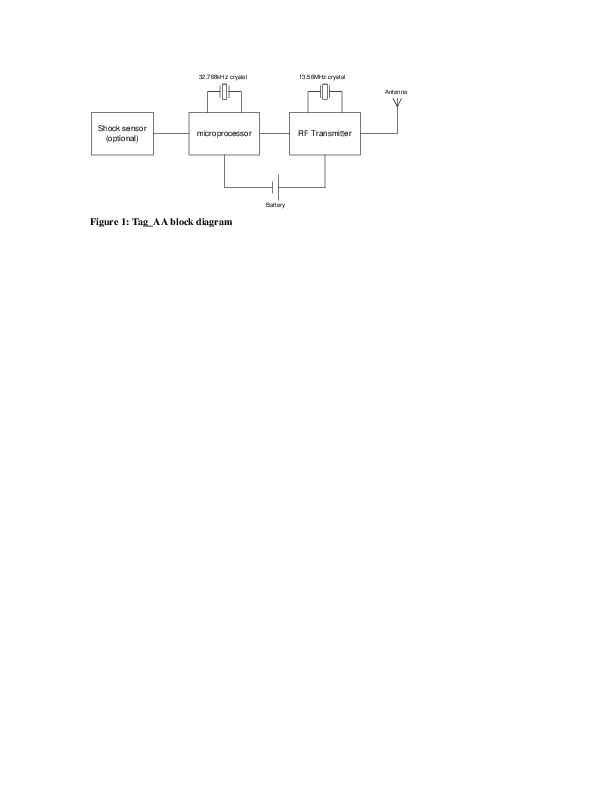

BLOCK DIAGRAM
RFID TRANSMITTER
by Scanpak Inc.
Document preview loads when visible.
Document Details
| FCC ID | RUQ2579 |
|---|---|
| Document ID | 628277 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Document Title | 2534ZUT5BlockDiagram |
| Applicant | Scanpak Inc. |
| Equipment Class | RFID TRANSMITTER |
| Product Code | 2579 |
| Application ID | Qb9lVpULcDVoct56d7OrLQ== |
| Application Purpose | Original Equipment |
| Application Date | 2006-02-10 |
| Frequency Range | 433.92 MHz |
| FRN | 0010354975 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | TUE HOANG |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-02-13 |
| Available | 2006-02-10 |
| Created | 2006-02-09 |
| Modified | 2006-02-09 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 7566 |
| File SHA-256 | eae292d5f371d68e7f7ce63b997200b8a0ed8d1317d6343f3785dc1ee0fc960c |
| PDF Metadata Author | rita |
| PDF Metadata Producer | Acrobat Distiller 6.0 (Windows) rita |
| FCC.gov Sources | FCC.gov 628277 |
