25A1 433.92MHz RFID, TRANSMITTER Teardown... - FCC ID RUQ25A1
FCC ID RUQ25A1
INTERNAL PHOTOS

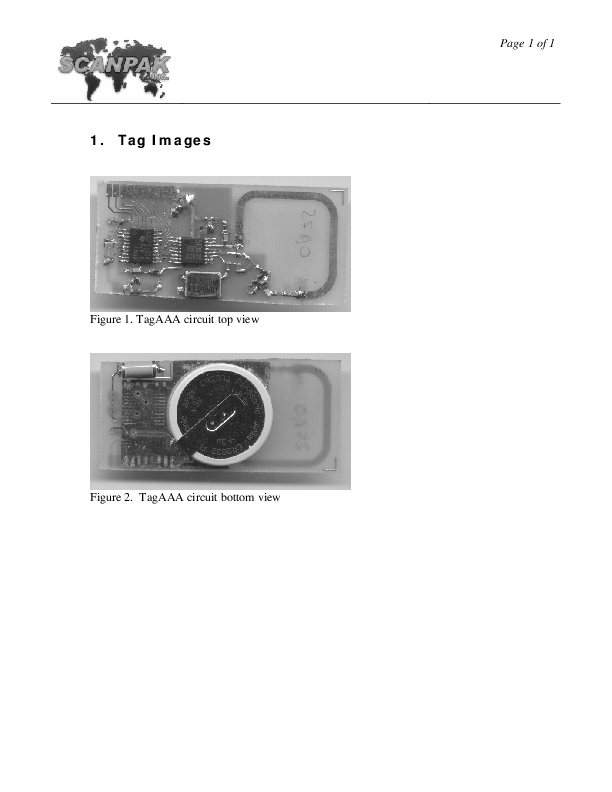

433.92MHz RFID, TRANSMITTER
by Scanpak Inc.
Document preview loads when visible.
Document Details
| FCC ID | RUQ25A1 |
|---|---|
| Document ID | 647060 |
| Document Type | Internal Photos |
| Description | INTERNAL PHOTOS |
| Document Title | 521AUT6 Internal |
| Applicant | Scanpak Inc. |
| Equipment Class | 433.92MHz RFID, TRANSMITTER |
| Product Code | 25A1 |
| Application ID | KRsDlksj4Ps+6c/O9lbo3w== |
| Application Purpose | Original Equipment |
| Application Date | 2006-04-13 |
| Frequency Range | 433.4-434.42 MHz |
| FRN | 0010354975 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | KOON LEE SENIOR ENGINEER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-04-13 |
| Available | 2006-04-13 |
| Created | 2006-03-27 |
| Modified | 2006-03-27 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 255782 |
| File SHA-256 | 16bc45d10d22959ead561c08e97daed0a6fd4bba7d0b80abbc6af8927a7b742c |
| PDF Metadata Author | rita |
| PDF Metadata Producer | Acrobat Distiller 6.0 (Windows) rita |
| FCC.gov Sources | FCC.gov 647060 |
