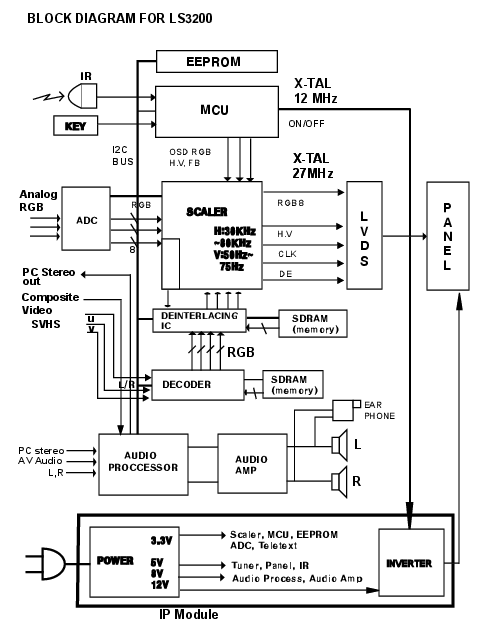

LS3200 32 Inch TFT-LCD Monitor Block Diagram - FCC ID RWWLS3200

FCC ID RWWLS3200

Block Diagram

32 Inch TFT-LCD Monitor

by Orion Technology Inc.

Document preview loads when visible.

Document Details

FCC IDRWWLS3200
Document ID532681
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleLS2600 BLOCK
ApplicantOrion Technology Inc.
Equipment Class32 Inch TFT-LCD Monitor
Product CodeLS3200
Application IDLSnvK9eZl1S0BAOYw6s+MQ==
Application PurposeOriginal Equipment
Application Date2005-04-14
FRN0010493724
Test FirmIST Co., Ltd
Certified ByJoon H. Lee Chief (Agent)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-04-14
Available2005-04-14
Created2004-11-29
Modified2005-04-08
Pages1
File TypeAdobe Acrobat PDF
File Size225861
File SHA-256e21baec1f638aac3aec1da9eda99ecb0f7620922a3d0ce4ecd9d1f9ebe333da5
PDF Metadata ProducerAdobe Illustrator 9.0 Adobe PDF library 4.800
FCC.gov SourcesFCC.gov 532681
