04EDWC01PRO108 Remote Control... - FCC ID RWX04EDWC01PRO108

FCC ID RWX04EDWC01PRO108

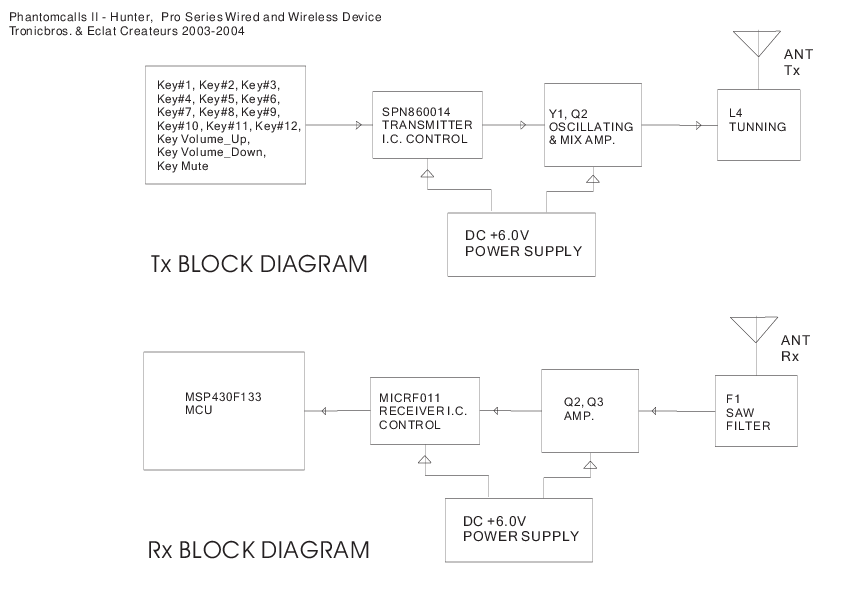

Block Diagram

Remote Control Transmitter

by Tronicbros & Eclat Createurs Holdings

Document preview loads when visible.

Document Details

FCC IDRWX04EDWC01PRO108
Document ID401576
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitlelogicB.cdr
ApplicantTronicbros & Eclat Createurs Holdings
Equipment ClassRemote Control Transmitter
Product Code04EDWC01PRO108
Application IDayu8MVew24Hp2vZIW/Hh3Q==
Application PurposeOriginal Equipment
Application Date2004-03-04
Frequency Range418 MHz
FRN0010073112
Test FirmSGS-CSTC Standards Technical Standards
Certified ByJerry Chen Superviser (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-03-04
Available2004-03-04
Created2004-01-15
Modified2004-01-16
Pages1
File TypeAdobe Acrobat PDF
File Size14513
File SHA-256bd21ccd9d39af4d584faa0fe03dab5660ea8328f0057339f105100975aa7d73e
PDF Metadata Author<BED6A6B3AACC>
PDF Metadata ProducerAcrobat Distiller 5.0 for Windows <BED6A6B3AACC>
FCC.gov SourcesFCC.gov 401576
