FCC ID RX3-WBU034
2x2 dual-band IEEE 802.11 a/b/g/n/ac and BT4.2 Combo Module
by Hon Hai Precision Industry Co., Ltd.
Grantee Code: RX3 Product Code: WBU034
Latest application date: 2016-08-29
Device Images
FCC ID Device Details
| FCC ID | RX3-WBU034 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | RX3 |
| Product Code | WBU034 |
| Applicant Business | Hon Hai Precision Industry Co., Ltd. 🇹🇼 |
| Related Domains |  foxconn.com  sgs.com |
| Equipment Class | 2x2 dual-band IEEE 802.11 a/b/g/n/ac and BT4.2 Combo Module |
| Test Firm | SGS Taiwan Ltd. Electronics & Communication Lab |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-08-29 |
| 2402-2480 MHz | Original Equipment | 2016-08-29 |
| 2402-2480 MHz | Original Equipment | 2016-08-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

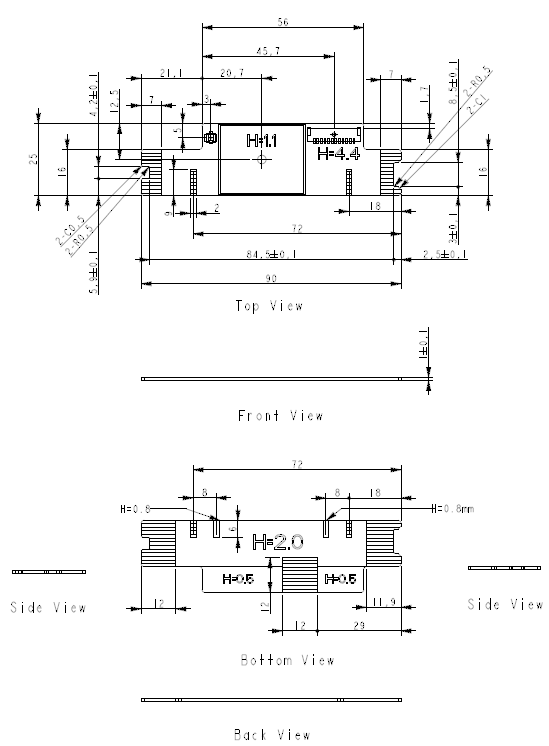

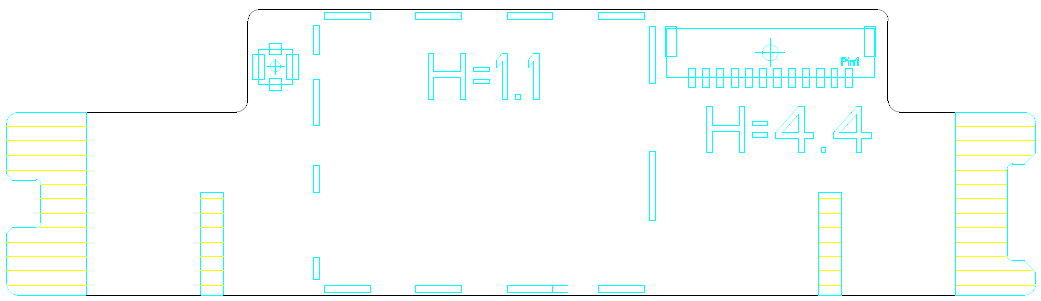

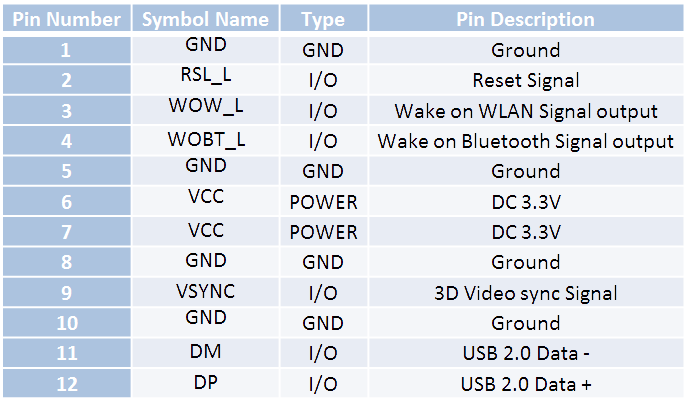

| Users Manual | Users Manual | 2016-08-29 | PDF 1.1 MB |
| Internal Photos | Internal Photos | 2016-08-29 | PDF 281.9 KB |
| External Photos | External Photos | 2016-08-29 | PDF 253.3 KB |
| ID Label/Location Info | ID Label/Location Info | 2016-08-29 | PDF 112.1 KB |
| ID Label/Location Info_revised0826 | ID Label/Location Info | 2016-08-29 | PDF 112.3 KB |
| ID Label/Location Info_revised0830 | ID Label/Location Info | 2016-08-29 | PDF 112.1 KB |

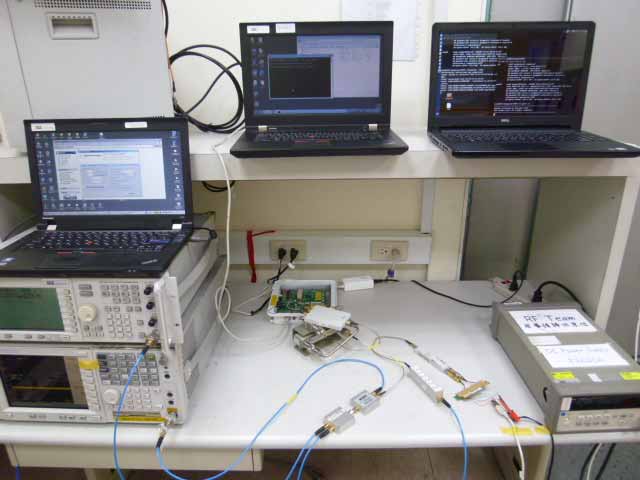

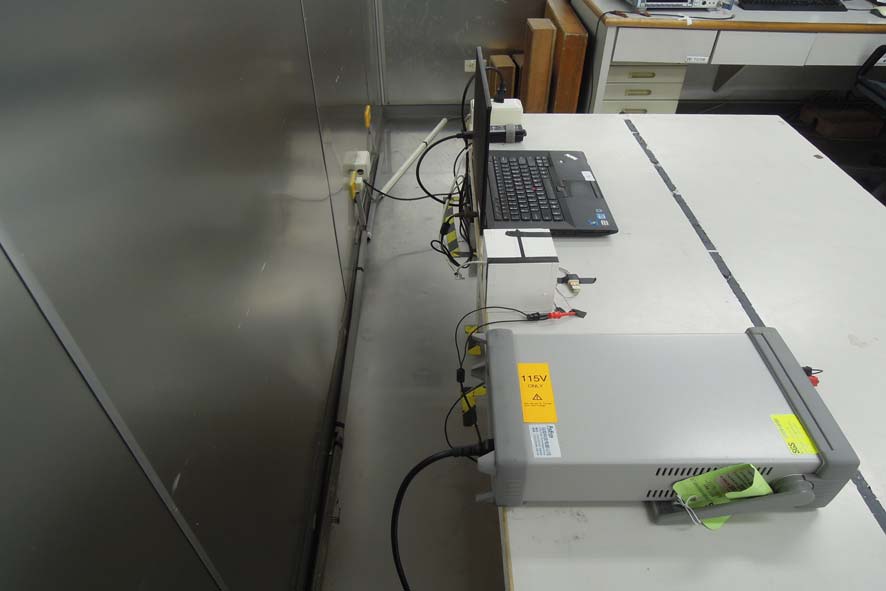

| Test Setup Photos | Test Setup Photos | 2016-08-29 | PDF 445.3 KB |
| Test Setup Photos for DFS | Test Setup Photos | 2016-08-29 | PDF 137.3 KB |
| ER-2016-80036-01 P15.247 WLAN | Test Report | 2016-08-29 | PDF 2.7 MB |
| ER-2016-80036-01 P15.247 WLAN test report | Test Report | 2016-08-29 | PDF 2.7 MB |
| ER-2016-80037-01 P15.407 UNII | Test Report | 2016-08-29 | PDF 5 MB |
| ER-2016-80037-01 P15.407 UNII test report | Test Report | 2016-08-29 | PDF 5 MB |
| ER-2016-80038-01 P15.247 BTEDR test report | Test Report | 2016-08-29 | PDF 4.1 MB |
| ER-2016-80039-01 P15.247 BLE | Test Report | 2016-08-29 | PDF 2 MB |
| ER-2016-80039-01 P15.247 BLE test report | Test Report | 2016-08-29 | PDF 2 MB |
| Test Report | Test Report | 2016-08-29 | PDF 4.9 MB |
| Test Report | Test Report | 2016-08-29 | PDF 1.8 MB |
| Test Report for BLE | Test Report | 2016-08-29 | PDF 1.9 MB |
| Test Report for DFS | Test Report | 2016-08-29 | PDF 889.1 KB |
| Test Report for WLAN | Test Report | 2016-08-29 | PDF 2.7 MB |
| FCC Justfication of Supersession_RX3-WBU034 | Attestation Statements | 2016-08-29 | PDF 255.3 KB |
| Confidentiality | Cover Letter(s) | 2016-08-29 | PDF 495.5 KB |
| DTS-UNII_Declaration Letter | Cover Letter(s) | 2016-08-29 | PDF 241.8 KB |
| Declaration of authorization | Cover Letter(s) | 2016-08-29 | PDF 97.1 KB |
| DoC Letter | Cover Letter(s) | 2016-08-29 | PDF 24.5 KB |
| Module Approval Request | Cover Letter(s) | 2016-08-29 | PDF 185.2 KB |
| WLAN channel 12 13 declaration letter | Cover Letter(s) | 2016-08-29 | PDF 287.6 KB |
| MPE | RF Exposure Info | 2016-08-29 | PDF 154.8 KB |
| MPE | RF Exposure Info | 2016-08-29 | PDF 171.1 KB |
| MPE | RF Exposure Info | 2016-08-29 | PDF 227.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 114.6 KB | |
| Schematics Metadata only | Schematics | PDF 151.9 KB | |
| Antenna Spec. Metadata only | Operational Description | PDF 1.3 MB | |
| DFS client device channel plan and software operational declaration Metadata only | Operational Description | PDF 100.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 155 KB |
Application Information
| Application ID | ZGknVtnuq6p8ipjhf8pGNA== |
|---|---|
| Final Action Date | 2016-08-29 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022375083 |
| Model | WBU034 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 2x2 dual-band IEEE 802.11 a/b/g/n/ac and BT4.2 Combo Module |
| Responsible Party | Cathy Kuo, cathy.cj.kuo@foxconn.com , +886-2-2268-3466 |
| Technical Contact | Willis Chen, SGS Taiwan Ltd., willis.chen@sgs.com , 886222993279 |
| Non-Technical Contact | Willis Chen, SGS Taiwan Ltd., willis.chen@sgs.com , 886222993279 |
| Test Firm | Ryan WANG, SGS Taiwan Ltd. Electronics & Communication Lab, ryan-ec.wang@sgs.com , +886-2-2299-3279 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Modular Approval. Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions.OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| ZGknVtnuq6p8ipjhf8pGNA== | 2016-08-29 | Original Equipment |
| UNsv+dUc4wJ6stmUS2umgA== | 2016-08-29 | Original Equipment |
| Hpud0YYNKVaoMWuJPj9J7w== | 2016-08-29 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application ZGknVtnuq6p8ipjhf8pGNA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 08/29/2016 Application Dated: 08/26/2016 |
| Hon Hai Precision Industry Co., Ltd. |
| No.151, Sec. 1, Nankan Rd., Lujhu Dist., |
| Taoyuan City, 33859 Taiwan |
| Attention: Cathy Kuo |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RX3-WBU034 |
| Name of Grantee: | Hon Hai Precision Industry Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 2x2 dual-band IEEE 802.11 a/b/g/n/ac and BT4.2 Combo Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.028 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.028 | ||
| 38 CC MO ND | 15E | 5500.0 - 5700.0 | 0.028 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.028 |
| Modular Approval. Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions.OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
