KWTX10 Musical Instrument Digital... - FCC ID RX5-KWTX10

FCC ID RX5-KWTX10

Technical description

Musical Instrument Digital Interface--MidiStream

by Kenton Electronics (J K Price t/a)

Document preview loads when visible.

Document Details

FCC IDRX5-KWTX10
Document ID412212
Document TypeOperational Description

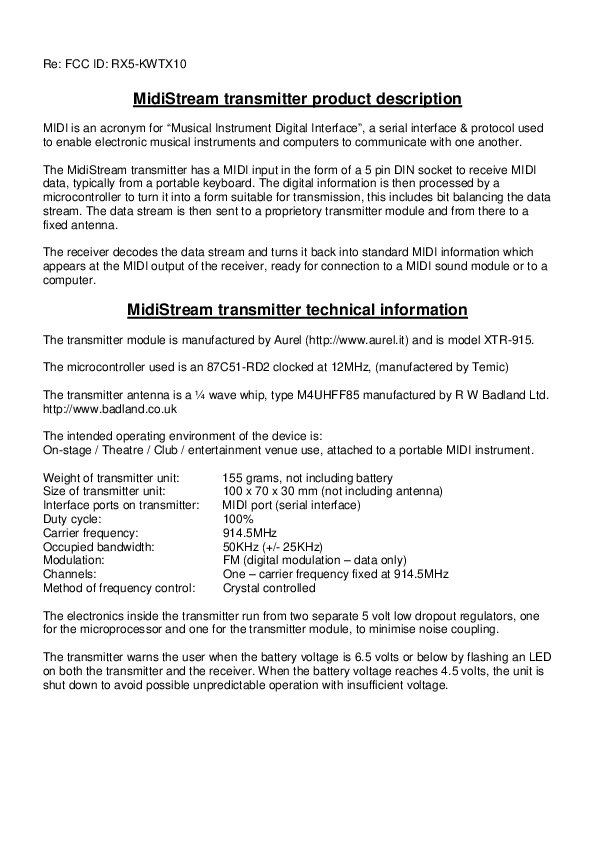

DescriptionTechnical description
ApplicantKenton Electronics (J K Price t/a)
Equipment ClassMusical Instrument Digital Interface--MidiStream
Product CodeKWTX10
Application IDywh5yMiY271Ysn4ZH6UFkw==
Application PurposeOriginal Equipment
Application Date2004-04-07
Frequency Range914.404-914.524 MHz
FRN0010138352
Test FirmTRL EMC Limited
Certified ByJohn Kenton Price Proprietor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-04-07
Available2004-04-07
Created2004-03-16
Modified2004-03-16
Pages1
File TypeAdobe Acrobat PDF
File Size8497
File SHA-2563687e9fadd0cdebb3a67b7cf5cb22337e6c3c0224ced8ec0c4c2e0728be94bac
PDF Metadata AuthorJohn Kenton Price
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows Microsoft Word 9.0
FCC.gov SourcesFCC.gov 412212
