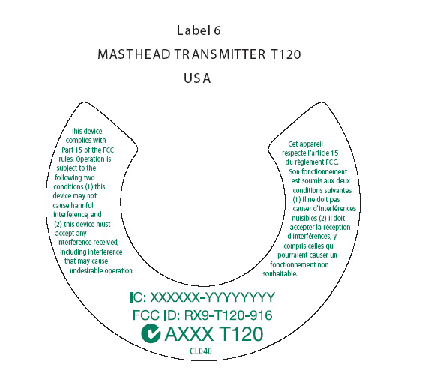

T120916 mn100 Wind Transmitter Label Diagram - FCC ID RX9-T120-916

FCC ID RX9-T120-916

Label

mn100 Wind Transmitter

by Raymarine Belgium Bvba

Document preview loads when visible.

Document Details

FCC IDRX9-T120-916
Document ID448436
Document TypeID Label/Location Info
DescriptionLabel
ApplicantRaymarine Belgium Bvba
Equipment Classmn100 Wind Transmitter
Product CodeT120916
Application IDNogsQGLbm8oKRSiKKu89Yg==
Application PurposeOriginal Equipment
Application Date2004-07-09
Frequency Range916 MHz
FRN0018547216
Test FirmRFI Global Services Ltd.
Certified ByPaul Jennings Design Consultant
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-07-09
Available2004-07-09
Created2004-07-08
Modified2004-07-08
Pages1
File TypeAdobe Acrobat PDF
File Size81563
File SHA-256f3f52be4982b53bfd72827df4cef6362dfef9a23e6b6704292e5a41dc587e1aa
PDF Metadata ProducerAdobe Acrobat 6.0 Adobe Acrobat 6.0 Image Conversion Plug-in
FCC.gov SourcesFCC.gov 448436
