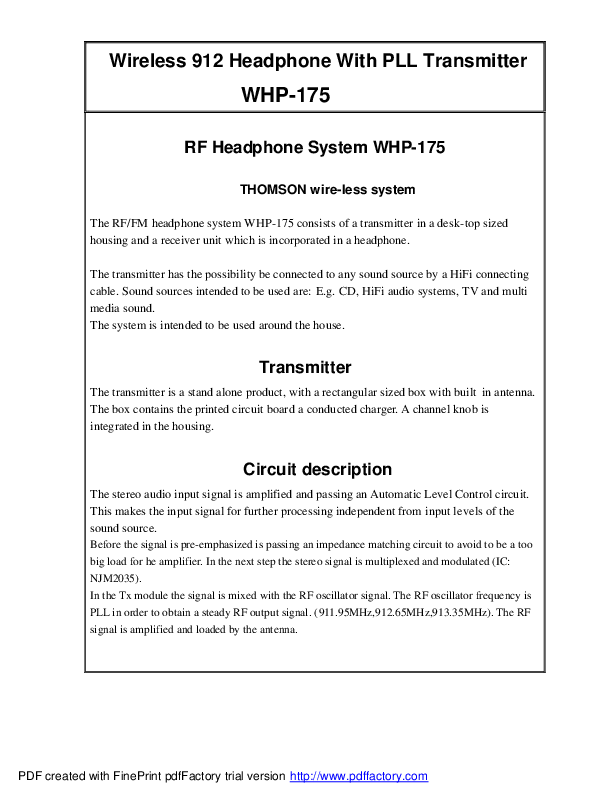

WHP175 900MHz Transmitter Operational Description - FCC ID RXWWHP175

FCC ID RXWWHP175

Technical Description

900MHz Transmitter

by TWD Acoustic Products Limited

Document preview loads when visible.

Document Details

FCC IDRXWWHP175
Document ID442292
Document TypeOperational Description
DescriptionTechnical Description
Document TitleWHP-175 Approbation File
ApplicantTWD Acoustic Products Limited
Equipment Class900MHz Transmitter
Product CodeWHP175
Application IDdtn6B/cwD/WKZ63LbWo6Yw==
Application PurposeOriginal Equipment
Application Date2004-06-21
Frequency Range911.9-913.3 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByAlfred Lo Senior Technical Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2004-06-21
Available2004-06-21
Created2004-05-13
Modified2004-05-13
Pages1
File TypeAdobe Acrobat PDF
File Size846705
File SHA-256e64d3185ab7f047db867f5192fdb5cee209b39b20f6ef20a624bc0b4d096b268
PDF Metadata AuthorMERD3
PDF Metadata ProducerpdfFactory v1.57 (Windows XP Chinese) MERD3
FCC.gov SourcesFCC.gov 442292
