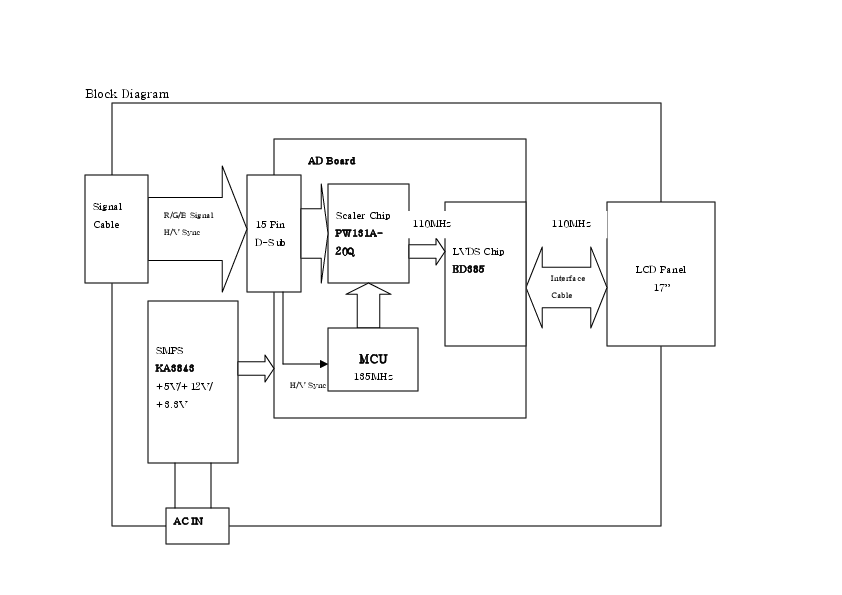

EFL1702X LCD Monitor Block Diagram - FCC ID RY8EFL1702X

FCC ID RY8EFL1702X

Block Diagram

LCD Monitor

by Effinet Systems, Inc.

Document preview loads when visible.

Document Details

FCC IDRY8EFL1702X
Document ID424855
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleBlock Diagram
ApplicantEffinet Systems, Inc.
Equipment ClassLCD Monitor
Product CodeEFL1702X
Application IDSKzOP+zHOj8Xy0Mgx31nXQ==
Application PurposeOriginal Equipment
Application Date2004-05-22
FRN0010623833
Test FirmIST Co., Ltd
Certified ByH.C. Kim Manager ( AGENT )
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-05-24
Available2004-05-22
Created2004-03-17
Modified2004-03-17
Pages1
File TypeAdobe Acrobat PDF
File Size55964
File SHA-256e539b1c866c6a5f60d6477fd0ca79b892a504ccf0bca7f36b1b12ce6abccf802
PDF Metadata Author<BDC9BAB8BCB1>
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows) <BDC9BAB8BCB1>
FCC.gov SourcesFCC.gov 424855
