FCC ID RYK-WUBM273ACN
802.11ac/b/g/n USB module
by SparkLAN Communications, Inc.
Grantee Code: RYK Product Code: WUBM273ACN
Latest application date: 2018-07-17
Device Images
FCC ID Device Details
| FCC ID | RYK-WUBM273ACN |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | RYK |
| Product Code | WUBM273ACN |
| Applicant Business | SparkLAN Communications, Inc. 🇹🇼 |
| Related Domains |  sparklan.com |
| Equipment Class | 802.11ac/b/g/n USB module |
| Test Firm | Intertek Testing Services Taiwan Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2018-07-17 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2018-07-17 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-01-15 |
| 2412-2462 MHz | Original Equipment | 2015-02-08 |
| 5180-5240 MHz | Original Equipment | 2015-02-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| WUBM-273ACN User Manual | Users Manual | 2016-01-15 | PDF 271.5 KB |
| User Manual | Users Manual | 2015-03-25 | PDF 271.5 KB |
| WUBM-273ACN Internal Photo | Internal Photos | 2016-01-15 | PDF 1.6 MB |
| Internal Photos | Internal Photos | 2015-03-25 | PDF 380.7 KB |
| WUBM-273ACN External Photo | External Photos | 2016-01-15 | PDF 981.5 KB |
| External Photos | External Photos | 2015-03-25 | PDF 209.5 KB |
| WUBM-273ACN Label Sample & Location | ID Label/Location Info | 2016-01-15 | PDF 1.1 MB |
| Label | ID Label/Location Info | 2015-02-08 | PDF 283.3 KB |
| WUBM-273ACN Test Setup Photo | Test Setup Photos | 2016-01-15 | PDF 781.4 KB |

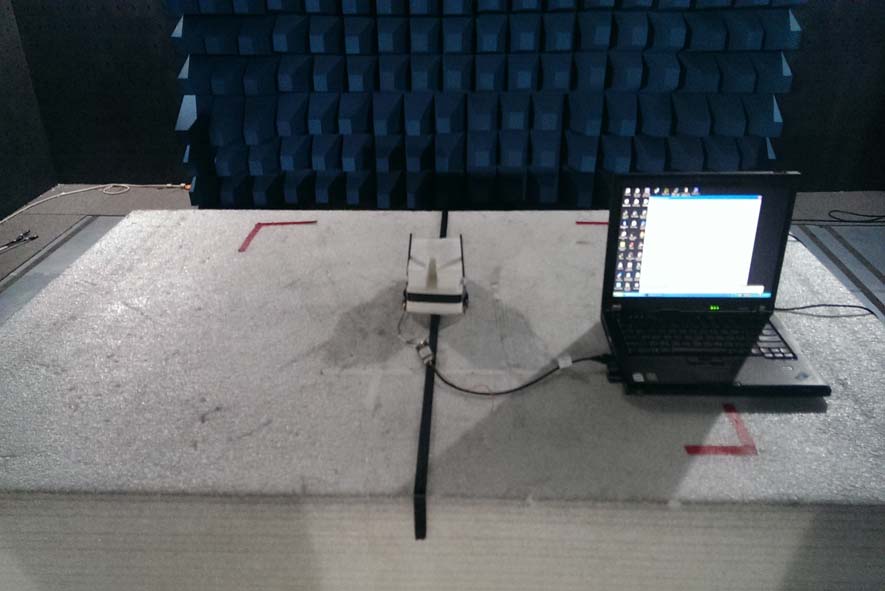

| Test Setup Photos | Test Setup Photos | 2015-03-25 | PDF 155.1 KB |
| Test Setup Photos | Test Setup Photos | 2015-02-08 | PDF 155 KB |
| RF Test Report | Test Report | 2018-07-17 | PDF 1.6 MB |
| RF Test Report | Test Report | 2018-07-17 | PDF 1.6 MB |
| WUBM-273ACN Test Report | Test Report | 2016-01-15 | PDF 2.5 MB |
| WUBM-273ACN Test Report for MPE | RF Exposure Info | 2016-01-15 | PDF 173.6 KB |
| Test Report | Test Report | 2015-02-08 | PDF 4.8 MB |
| Test Report Part 1 | Test Report | 2015-02-08 | PDF 5.2 MB |
| Test Report Part 2 | Test Report | 2015-02-08 | PDF 3.9 MB |
| Test Report Part 3 | Test Report | 2015-02-08 | PDF 4.3 MB |
| Test Report Part 4 | Test Report | 2015-02-08 | PDF 4.3 MB |
| Test Report Part 5 | Test Report | 2015-02-08 | PDF 3.7 MB |
| WUBM-273ACN Federal Communications Commission (DoC) US address | Attestation Statements | 2016-01-15 | PDF 22.8 KB |
| DoC Attestation | Attestation Statements | 2015-02-08 | PDF 146 KB |
| Authorization Letter | Cover Letter(s) | 2018-07-17 | PDF 76.1 KB |
| Class II Permissive change letter | Cover Letter(s) | 2018-07-17 | PDF 1.7 MB |
| LTC Letter | Cover Letter(s) | 2018-07-17 | PDF 170.2 KB |
| POA | Cover Letter(s) | 2018-07-17 | PDF 843 KB |
| WUBM-273ACN Class II Change letter | Cover Letter(s) | 2016-01-15 | PDF 26.9 KB |
| WUBM-273ACN Confidentiality Template | Cover Letter(s) | 2016-01-15 | PDF 29.4 KB |
| WUBM-273ACN Model difference Letter | Cover Letter(s) | 2016-01-15 | PDF 27.1 KB |
| WUBM-273ACN Modular_Approval_per_section_15 212_requirements | Cover Letter(s) | 2016-01-15 | PDF 124.8 KB |
| WUBM-273ACN POA | Cover Letter(s) | 2016-01-15 | PDF 22.7 KB |
| WUBM-273ACN Software Security Description KDB 594280 D02v01r01 Section ... | Cover Letter(s) | 2016-01-15 | PDF 55.7 KB |
| WUBM-273ACN Software Security Description KDB 594280 D02v01r01 Section II | Cover Letter(s) | 2016-01-15 | PDF 62.2 KB |
| Agents Letter | Cover Letter(s) | 2015-02-08 | PDF 3 MB |
| Confidentiality Letter | Cover Letter(s) | 2015-02-08 | PDF 2.9 MB |
| Modular Approval Letter | Cover Letter(s) | 2015-02-08 | PDF 3.3 MB |
| RF Exposure Report | RF Exposure Info | 2015-02-08 | PDF 155.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 394.5 KB | |
| Schematics Metadata only | Schematics | PDF 5.5 MB | |
| Antenna Details Metadata only | Operational Description | PDF 5.7 MB | |
| Antenna Details II Part 1 Metadata only | Operational Description | PDF 2.2 MB | |
| Antenna Details II Part 2 Metadata only | Operational Description | PDF 4.3 MB | |
| Operating Description Metadata only | Operational Description | PDF 62.9 KB | |
| Operational Description-Antenna 1002633 1002635 Metadata only | Operational Description | PDF 851.6 KB | |
| Operational Description-Antenna 1002991-1002994 Metadata only | Operational Description | PDF 964.3 KB | |
| Software Security description Metadata only | Operational Description | PDF 3.8 MB | |
| WUBM-273ACN Antenna Specification for Dipole Antenna Metadata only | Operational Description | PDF 2.1 MB | |
| WUBM-273ACN Antenna Specification for printed Antenna Metadata only | Operational Description | PDF 5.7 MB | |
| WUBM-273ACN Operation Description Metadata only | Operational Description | PDF 49.7 KB | |
| Tune Up Metadata only | Parts List/Tune Up Info | PDF 9 KB | |
| WUBM-273ACN Tune up Process Metadata only | Parts List/Tune Up Info | PDF 17.8 KB |
Application Information
| Application ID | umt/KIJSLxNyGpjl18VkEg== |
|---|---|
| Final Action Date | 2018-07-17 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0010534840 |
| Model | WUBM273ACN |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 802.11ac/b/g/n USB module |
| Responsible Party | Grady Lin, Manager, grady.lin@sparklan.com , +886-2-2659-1880 |
| Test Firm | Lily Shih, Intertek Testing Services Taiwan Ltd., lily.shih@intertek.com  , 886-2-6602-2780 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | C2PC to add antenna type. Modular Approval. Power Output is conducted. This device has 20, and 40 MHz BW modes. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| umt/KIJSLxNyGpjl18VkEg== | 2018-07-17 | Class II permissive change or modification of presently authorized equipment |
| NFF/HzoD/2e8wv7k9y/Fqg== | 2018-07-17 | Class II permissive change or modification of presently authorized equipment |
| ShAjP4+r927kRApyLbqnbQ== | 2016-01-15 | Class II permissive change or modification of presently authorized equipment |
| ZEGh2s+WTsH/DauwvZ0Abg== | 2015-02-08 | Original Equipment |
| YZxQWDlpEMetWxFHtIc2QQ== | 2015-02-08 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2412-2462 MHz | 0.5998 | 15C | CC, MO |
| 2422-2452 MHz | 0.3396 | 15C | CC, MO |
| 5180-5240 MHz | 0.1393 | 15E | CC, MO |
| 5190-5230 MHz | 0.0753 | 15E | 38, CC, MO |
| 5190-5230 MHz | 0.0753 | 15E | CC, MO |
| 5210 MHz | 0.036 | 15E | 38, CC, MO |
| 5210 MHz | 0.036 | 15E | CC, MO |
| 5260-5320 MHz | 0.0767 | 15E | 38, CC, MO, ND |
| 5260-5320 MHz | 0.0767 | 15E | 38, CC, MO |
| 5270-5310 MHz | 0.0561 | 15E | 38, CC, MO, ND |
| 5270-5310 MHz | 0.0561 | 15E | 38, CC, MO |
| 5290 MHz | 0.0105 | 15E | 38, CC, MO, ND |
| 5290 MHz | 0.0105 | 15E | 38, CC, MO |
| 5500-5700 MHz | 0.0818 | 15E | 38, CC, MO, ND |
| 5500-5700 MHz | 0.0818 | 15E | 38, CC, MO |
| 5510-5670 MHz | 0.0443 | 15E | 38, CC, MO, ND |
| 5510-5670 MHz | 0.0443 | 15E | 38, CC, MO |
| 5530 MHz | 0.0061 | 15E | 38, CC, MO, ND |
| 5530 MHz | 0.0061 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.1622 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.1622 | 15E | CC, MO |
| 5755-5795 MHz | 0.0703 | 15E | 38, CC, MO |
| 5755-5795 MHz | 0.0703 | 15E | CC, MO |
| 5775 MHz | 0.054 | 15E | 38, CC, MO |
| 5775 MHz | 0.054 | 15E | CC, MO |
Grants
TCB Grant - Application ZEGh2s+WTsH/DauwvZ0Abg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL United Kingdom |
Date of Grant: 02/08/2015 Application Dated: 02/08/2015 |
| SparkLAN Communications, Inc. |
| 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, |
| Taipei, Taiwan |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.5998 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.3396 |
| Modular Approval. Power Output is conducted. This device has 20, and 40 MHz BW modes. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application ZEGh2s+WTsH/DauwvZ0Abg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan |
Date of Grant: 02/08/2015 Application Dated: 02/08/2015 |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.5998 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.3396 |
| Modular Approval. Power Output is conducted. This device has 20, and 40 MHz BW modes. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL United Kingdom |
Date of Grant: 02/08/2015 Application Dated: 02/08/2015 |
| SparkLAN Communications, Inc. |
| 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, |
| Taipei, Taiwan |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.1393 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0753 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.036 | ||
| CC MO | 15E | 5745.0 - 5825.0 | 0.1622 | ||
| CC MO | 15E | 5755.0 - 5795.0 | 0.0703 | ||
| CC MO | 15E | 5775.0 - 5775.0 | 0.054 |
| Modular Approval. Power listed is conducted. Operations in the band 5.15-5.25GHz is restricted to indoor usage only. This device is a client device without radar detection per 15.407 definition. This device has 20, 40 and 80 MHz BW modes. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application, except in accordance with FCC multi-transmitter RF exposure procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application YZxQWDlpEMetWxFHtIc2QQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan |
Date of Grant: 02/08/2015 Application Dated: 02/08/2015 |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.1393 | ||
| CC MO | 15E | 5190.0 - 5230.0 | 0.0753 | ||
| CC MO | 15E | 5210.0 - 5210.0 | 0.036 | ||
| CC MO | 15E | 5745.0 - 5825.0 | 0.1622 | ||
| CC MO | 15E | 5755.0 - 5795.0 | 0.0703 | ||
| CC MO | 15E | 5775.0 - 5775.0 | 0.054 |
| Modular Approval. Power listed is conducted. Operations in the band 5.15-5.25GHz is restricted to indoor usage only. This device is a client device without radar detection per 15.407 definition. This device has 20, 40 and 80 MHz BW modes. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application, except in accordance with FCC multi-transmitter RF exposure procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 07/17/2018 Application Dated: 07/17/2018 |
| SparkLAN Communications, Inc. |
| 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, |
| Taipei, Taiwan |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.5998 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.3396 |
| C2PC to add antenna type. Modular Approval. Power Output is conducted. This device has 20, and 40 MHz BW modes. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application umt/KIJSLxNyGpjl18VkEg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan |
Date of Grant: 07/17/2018 Application Dated: 07/17/2018 |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.5998 | ||
| CC MO | 15C | 2422.0 - 2452.0 | 0.3396 |
| C2PC to add antenna type. Modular Approval. Power Output is conducted. This device has 20, and 40 MHz BW modes. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL United Kingdom |
Date of Grant: 01/15/2016 Application Dated: 01/15/2016 |
| SparkLAN Communications, Inc. |
| 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, |
| Taipei, Taiwan |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac/b/g/n USB module |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.1393 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.0753 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.036 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1622 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.0703 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.054 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.0767 | ||
| 38 CC MO | 15E | 5270.0 - 5310.0 | 0.0561 | ||
| 38 CC MO | 15E | 5290.0 - 5290.0 | 0.0105 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.0818 | ||
| 38 CC MO | 15E | 5510.0 - 5670.0 | 0.0443 | ||
| 38 CC MO | 15E | 5530.0 - 5530.0 | 0.0061 |
| C2PC as described in this filing. Modular Approval. Power listed is conducted. This device has 20, 40 and 80 MHz BW modes. This equipment complies with the Dynamic Frequency Selection (DFS) requirements of Report and Order FCC 14-30 as a Client only device without Radar Detection. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application ShAjP4+r927kRApyLbqnbQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan |
Date of Grant: 01/15/2016 Application Dated: 01/15/2016 |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.1393 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.0753 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.036 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1622 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.0703 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.054 | ||
| 38 CC MO | 15E | 5260.0 - 5320.0 | 0.0767 | ||
| 38 CC MO | 15E | 5270.0 - 5310.0 | 0.0561 | ||
| 38 CC MO | 15E | 5290.0 - 5290.0 | 0.0105 | ||
| 38 CC MO | 15E | 5500.0 - 5700.0 | 0.0818 | ||
| 38 CC MO | 15E | 5510.0 - 5670.0 | 0.0443 | ||
| 38 CC MO | 15E | 5530.0 - 5530.0 | 0.0061 |
| C2PC as described in this filing. Modular Approval. Power listed is conducted. This device has 20, 40 and 80 MHz BW modes. This equipment complies with the Dynamic Frequency Selection (DFS) requirements of Report and Order FCC 14-30 as a Client only device without Radar Detection. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 07/17/2018 Application Dated: 07/17/2018 |
| SparkLAN Communications, Inc. |
| 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, |
| Taipei, Taiwan |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.1393 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.0753 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.036 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1622 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.0703 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.054 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.0767 | ||
| 38 CC MO ND | 15E | 5270.0 - 5310.0 | 0.0561 | ||
| 38 CC MO ND | 15E | 5290.0 - 5290.0 | 0.0105 | ||
| 38 CC MO ND | 15E | 5500.0 - 5700.0 | 0.0818 | ||
| 38 CC MO ND | 15E | 5510.0 - 5670.0 | 0.0443 | ||
| 38 CC MO ND | 15E | 5530.0 - 5530.0 | 0.0061 |
| C2PC to add antenna type. C2PC as described in this filing. Modular Approval. Power listed is conducted. This device has 20, 40 and 80 MHz BW modes. This equipment complies with the Dynamic Frequency Selection (DFS) requirements of Report and Order FCC 14-30 as a Client only device without Radar Detection. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application NFF/HzoD/2e8wv7k9y/Fqg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan |
Date of Grant: 07/17/2018 Application Dated: 07/17/2018 |
| Attention: Grady Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | RYK-WUBM273ACN |
| Name of Grantee: | SparkLAN Communications, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac/b/g/n USB module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.1393 | ||
| 38 CC MO | 15E | 5190.0 - 5230.0 | 0.0753 | ||
| 38 CC MO | 15E | 5210.0 - 5210.0 | 0.036 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.1622 | ||
| 38 CC MO | 15E | 5755.0 - 5795.0 | 0.0703 | ||
| 38 CC MO | 15E | 5775.0 - 5775.0 | 0.054 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.0767 | ||
| 38 CC MO ND | 15E | 5270.0 - 5310.0 | 0.0561 | ||
| 38 CC MO ND | 15E | 5290.0 - 5290.0 | 0.0105 | ||
| 38 CC MO ND | 15E | 5500.0 - 5700.0 | 0.0818 | ||
| 38 CC MO ND | 15E | 5510.0 - 5670.0 | 0.0443 | ||
| 38 CC MO ND | 15E | 5530.0 - 5530.0 | 0.0061 |
| C2PC to add antenna type. C2PC as described in this filing. Modular Approval. Power listed is conducted. This device has 20, 40 and 80 MHz BW modes. This equipment complies with the Dynamic Frequency Selection (DFS) requirements of Report and Order FCC 14-30 as a Client only device without Radar Detection. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: |
