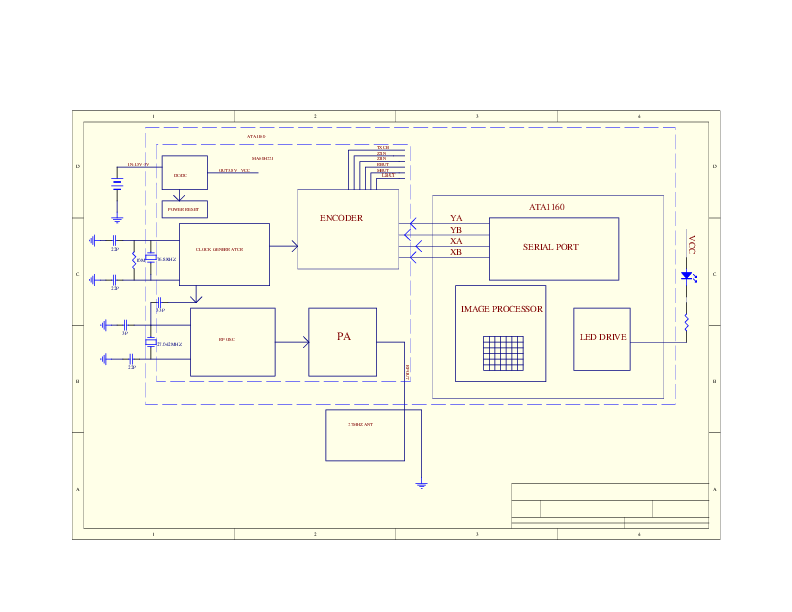

H115000 Wireless Mouse Block Diagram - FCC ID RYLH115000

FCC ID RYLH115000

Block Diagram

Wireless Mouse

by DynaPoint (Dong Guan) Inc.

Document preview loads when visible.

Document Details

FCC IDRYLH115000
Document ID602041
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleProtel Schematic
ApplicantDynaPoint (Dong Guan) Inc.
Equipment ClassWireless Mouse
Product CodeH115000
Application IDJPQU6XxyDBZujq5h7BxEvQ==
Application PurposeOriginal Equipment
Application Date2005-11-11
Frequency Range27.042 MHz
FRN0018612697
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByPaul Chen
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-11-11
Available2005-11-11
Created2005-11-08
Modified2005-11-08
Pages1
File TypeAdobe Acrobat PDF
File Size14207
File SHA-25615207aa0a321159f502968dccdbe67db68096dfd5b6b2505d34bc666e610fea8
PDF Metadata Authorrd07
PDF Metadata ProducerpdfFactory 2.28 (Windows 2000 Professional Chinese) rd07
FCC.gov SourcesFCC.gov 602041
