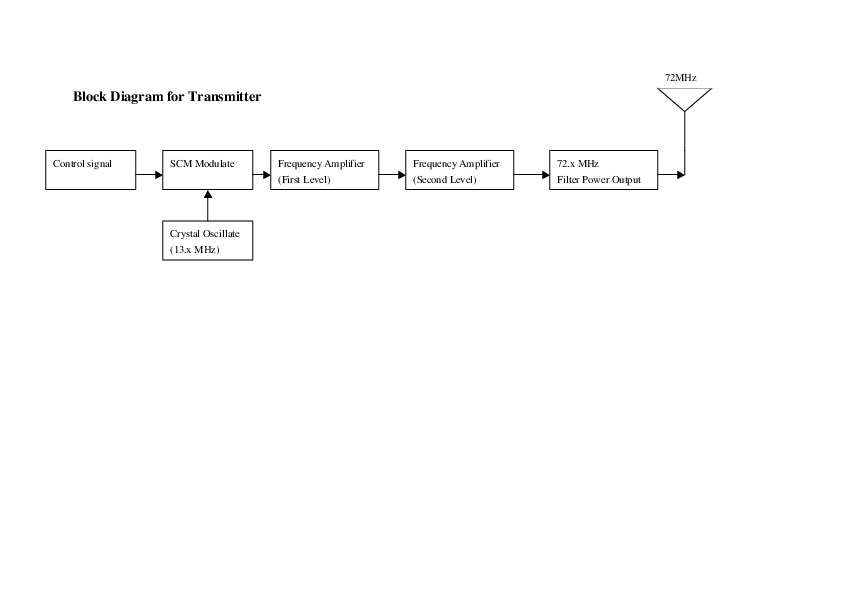

NO22 R/C Airplane Block Diagram - FCC ID S29NO22

FCC ID S29NO22

Block Diagram

R/C Airplane

by GuangZhou Walkera Technology Co., Ltd

Document preview loads when visible.

Document Details

FCC IDS29NO22
Document ID529599
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleBlock Diagram-40M
ApplicantGuangZhou Walkera Technology Co., Ltd
Equipment ClassR/C Airplane
Product CodeNO22
Application IDn0iUtpEOew09E4zVnKdR4w==
Application PurposeOriginal Equipment
Application Date2005-04-07
Frequency Range72.87 MHz
FRN0026691238
Test FirmBay Area Compliance Laboratory
Certified ByBen Li
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-04-07
Available2005-04-07
Created2005-03-07
Modified2005-03-07
Pages1
File TypeAdobe Acrobat PDF
File Size4722
File SHA-2567ef140072f677a5bdbcd771dbf866ece1485dd0ff6f4094f93ac53825b95c152
PDF Metadata Authorannie
PDF Metadata ProducerBlock Diagram-40M .doc - Microsoft Word Acrobat PDFWriter 5.0 for Windows NT
FCC.gov SourcesFCC.gov 529599
