KC9303A DIGITAL FM TRANSMITTER Block Diagram - FCC ID S4CKC-9303A
FCC ID S4CKC-9303A

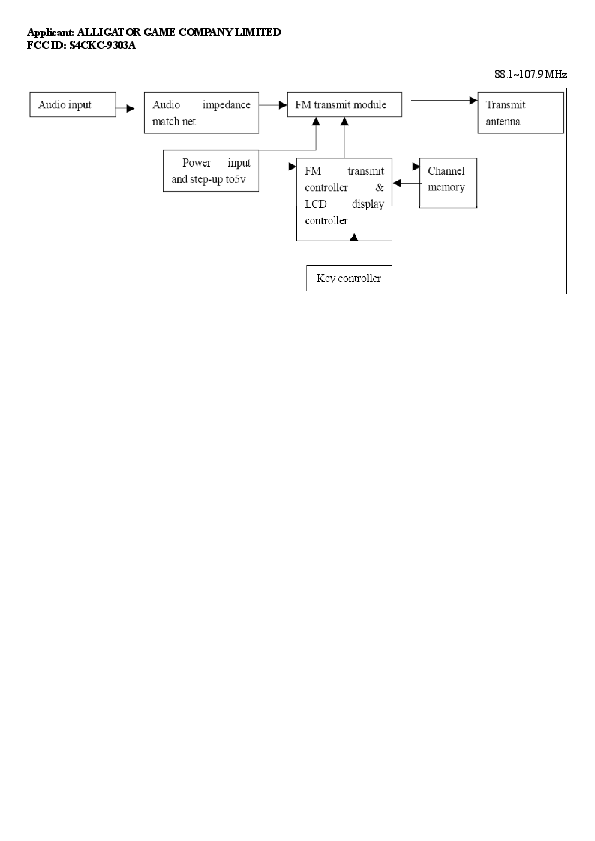

BLOCK DIAGRAM
DIGITAL FM TRANSMITTER
Document preview loads when visible.
Document Details
| FCC ID | S4CKC-9303A |
|---|---|
| Document ID | 581604 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Document Title | Block Diagram |
| Applicant | Alligator Game Company Limited |
| Equipment Class | DIGITAL FM TRANSMITTER |
| Product Code | KC9303A |
| Application ID | GTkuSnABOgrFMAgZOBwP4g== |
| Application Purpose | Original Equipment |
| Application Date | 2005-09-13 |
| Frequency Range | 88.1-107.9 MHz |
| FRN | 0012990156 |
| Test Firm | Ke Mei Ou Laboratory Co., Ltd. |
| Certified By | ELAINE SUNG GENERAL MANAGER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-09-14 |
| Available | 2005-09-13 |
| Created | 2005-09-12 |
| Modified | 2005-09-12 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 45858 |
| File SHA-256 | 67f455ecf807055ffbf460cd182a156b603e5e1003f96869729318eeb2fe4383 |
| PDF Metadata Author | Apollo |
| PDF Metadata Producer | pdfFactory Pro www.pdffactory.com pdfFactory Pro 2.26 (Windows XP Professional Chinese) |
| FCC.gov Sources | FCC.gov 581604 |
