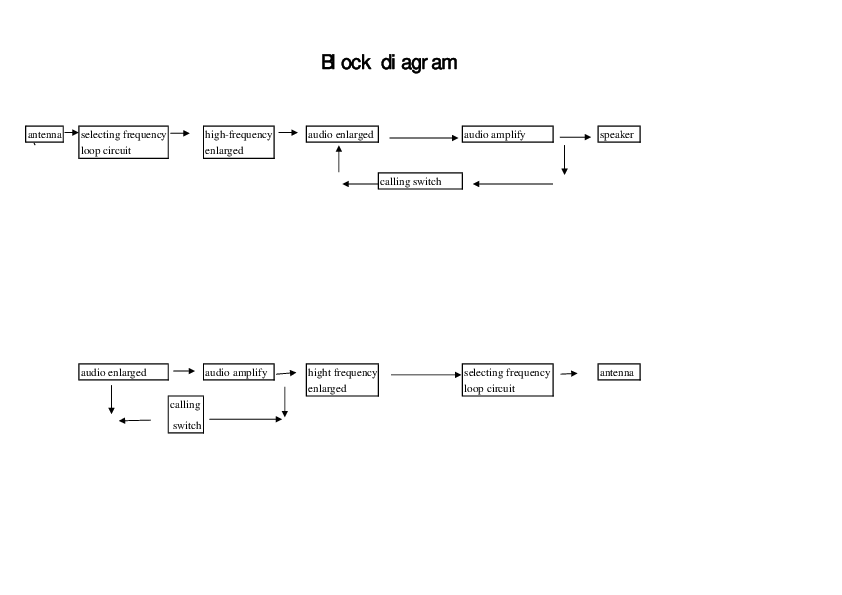

INTERPHONE Walkie Talkie Block Diagram - FCC ID S4ZINTERPHONE

FCC ID S4ZINTERPHONE

Block Diagram

Walkie Talkie

by Shantou Chenghai District Xiehe Plastic Hardware Factory & Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDS4ZINTERPHONE
Document ID525889
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantShantou Chenghai District Xiehe Plastic Hardware Factory & Co., Ltd.
Equipment ClassWalkie Talkie
Product CodeINTERPHONE
Application IDA5f4FsXLs7EnjWh+HBJIMg==
Application PurposeOriginal Equipment
Application Date2005-03-23
Frequency Range49.86 MHz
FRN0012806097
Test FirmHong Kong Standards & Testing Cen.
Certified ByPatrick Wong Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-03-23
Available2005-03-23
Created2005-03-04
Modified2005-03-04
Pages1
File TypeAdobe Acrobat PDF
File Size8612
File SHA-2565279afba58fa74b2bd0b4b3da75ecf2c748d4946214c8bc3208eb257e1bba991
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows)
FCC.gov SourcesFCC.gov 525889
