NEXT8P nextbook, Android MID Block Diagram - FCC ID S7JNEXT8P

FCC ID S7JNEXT8P

Block Diagram

nextbook, Android MID

by Shenzhen Yifang Digital Technology Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDS7JNEXT8P
Document ID1506109
Document TypeBlock Diagram
DescriptionBlock Diagram

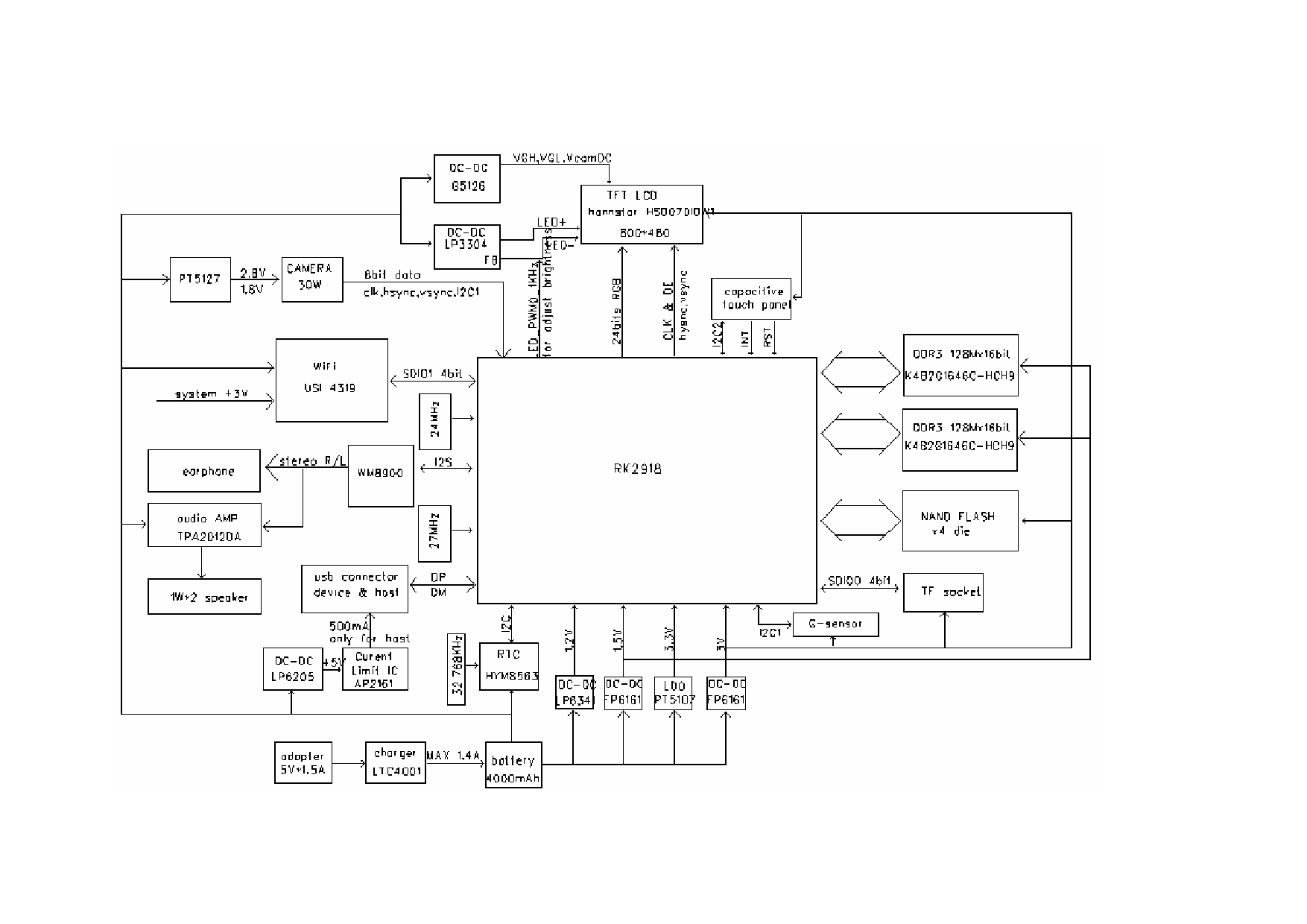

Document TitleOperation description
ApplicantShenzhen Yifang Digital Technology Co., Ltd.
Equipment Classnextbook, Android MID
Product CodeNEXT8P
Application ID36tY1xSc984bbJS9DsaPOA==
Application PurposeOriginal Equipment
Application Date2011-07-21
Frequency Range2412-2462 MHz
FRN0013275144
Test FirmEMTEK (Shenzhen) Co., Ltd.
Certified Bydavid Lee
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-07-21
Available2011-07-21
Created2011-07-12
Modified2011-07-12
Pages1
File TypeAdobe Acrobat PDF
File Size16110
File SHA-256f8afdef1d54dad2bc7a0e7a768d3fa1d57f54753b20985e62ca224912a22308c
PDF Metadata Authorjune1
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 9.0.0 (Windows)
FCC.gov SourcesFCC.gov 1506109
