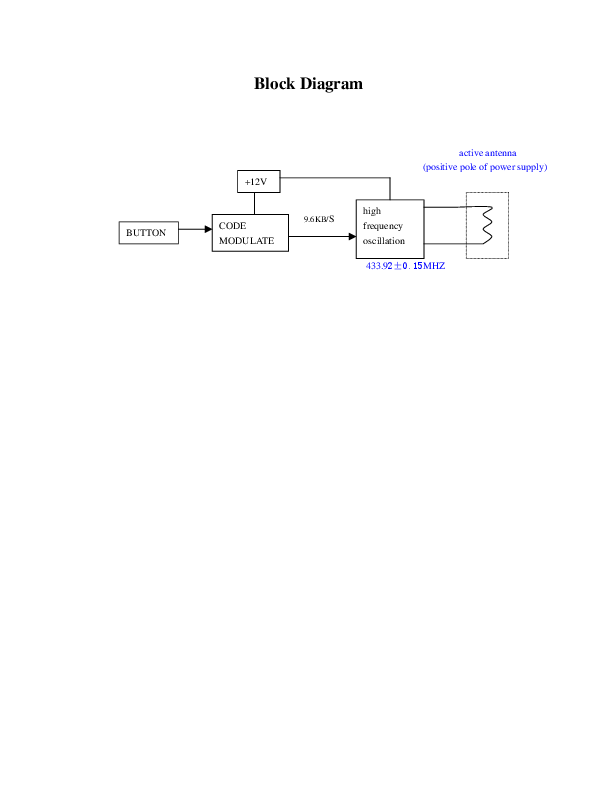

KH800B Remote Controller Block Diagram - FCC ID S7VKH800B

FCC ID S7VKH800B

Block Diagram

Remote Controller

by Ningbo Keda Automobile Meter Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDS7VKH800B
Document ID592668
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleBlock Diagram
ApplicantNingbo Keda Automobile Meter Co., Ltd.
Equipment ClassRemote Controller
Product CodeKH800B
Application IDhSAUzT3GzEMRB96JvPWvjw==
Application PurposeOriginal Equipment
Application Date2005-10-15
Frequency Range433.92 MHz
FRN0004265807
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByJiejun Ye
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-10-17
Available2005-10-15
Created2005-10-17
Modified2005-10-17
Pages1
File TypeAdobe Acrobat PDF
File Size28821
File SHA-25618d1236a3a4be38fe35c6f4c1146be662b1fddc8d0a61442ce8a0abeddbd6db6
PDF Metadata Authoragnesf
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows) agnesf
FCC.gov SourcesFCC.gov 592668
