R770 R770 Access Point Test Report - FCC ID S9GR770
FCC ID S9GR770

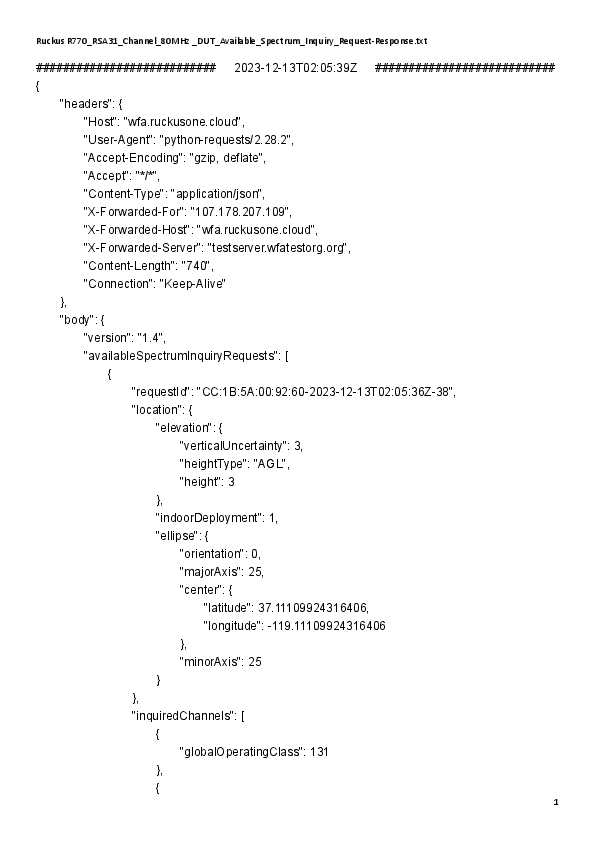

Ruckus R770_RSA31_Channel_80MHz_DUT_Available_Spectrum_Inquiry_Request-Response
R770 Access Point
Document preview loads when visible.
Document Details
| FCC ID | S9GR770 |
|---|---|
| Document ID | 7211426 |
| Document Type | Test Report |
| Description | Ruckus R770_RSA31_Channel_80MHz_DUT_Available_Spectrum_Inquiry_Request-Response |
| Applicant | Ruckus Wireless LLC |
| Equipment Class | R770 Access Point |
| Product Code | R770 |
| Application ID | J5Bwb116jyfHPgqopRCSEw== |
| Application Purpose | Original Equipment |
| Application Date | 2024-04-16 |
| Frequency Range | 5955-6415 MHz |
| FRN | 0013389887 |
| Test Firm | Sporton International (USA) Inc |
| Certified By | Helen Hsiao Specialist |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 10/09/2024 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2024-04-01 |
| Available | 2024-04-16 |
| Created | 2023-12-18 |
| Modified | 2023-12-18 |
| Pages | 18 |
| File Type | Adobe Acrobat PDF |
| File Size | 241267 |
| File SHA-256 | e82253c3515d852c4012da5db53900d0bb4e773fc1a2fbb9ef4b98097f610e56 |
| PDF Metadata Author | Thomas Chen (陳映圻) |
| PDF Metadata Producer | Microsoft® Word 2019 Thomas Chen (陳映圻) |
| FCC.gov Sources | FCC.gov 7211426 |
