FCC ID S9GTDBAC22N
802.11ac AP Radio Module
by Ruckus Wireless, Inc.
Grantee Code: S9G Product Code: TDBAC22N
Latest application date: 2016-03-18
Device Images
FCC ID Device Details
| FCC ID | S9GTDBAC22N |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | S9G |
| Product Code | TDBAC22N |
| Applicant Business | Ruckus Wireless, Inc. 🇺🇸 |
| Related Domains |  commscope.com |
| Equipment Class | 802.11ac AP Radio Module |
| Test Firm | Bay Area Compliance Laboratories Corporation |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-03-18 |
| 2412-2462 MHz | Original Equipment | 2014-09-05 |
| 5745-5825 MHz | Original Equipment | 2014-09-05 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2014-09-05 | PDF 345.3 KB |

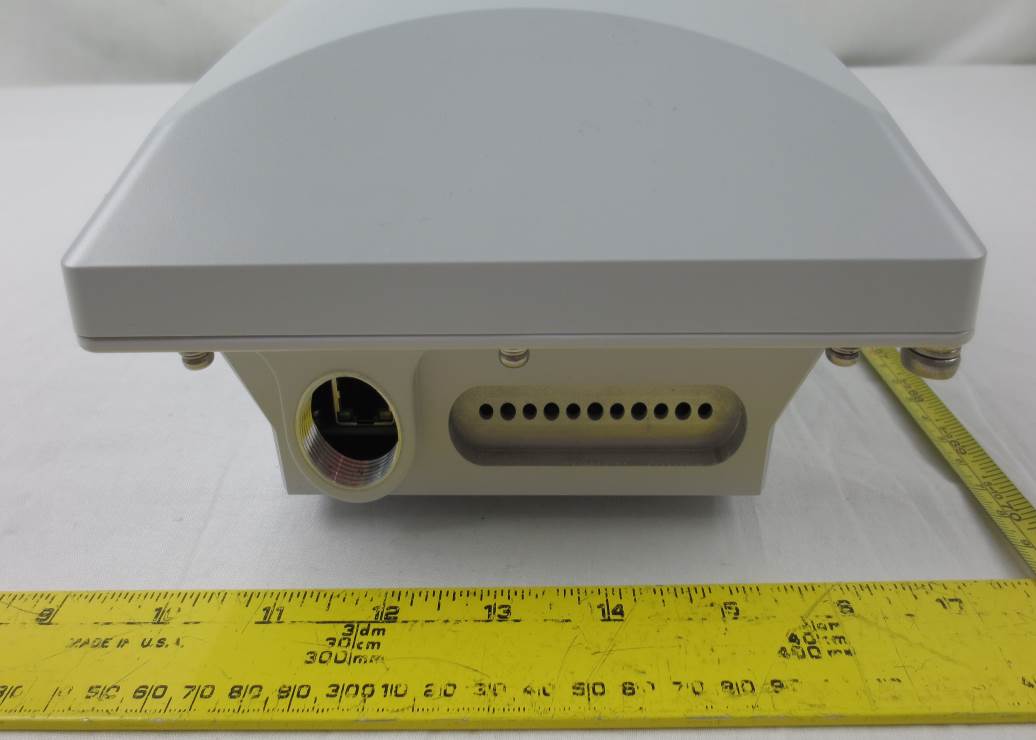

| Int Photos | Internal Photos | 2016-03-18 | PDF 565 KB |
| Int Photos | Internal Photos | 2014-09-05 | PDF 406.9 KB |
| Int Photos | Internal Photos | 2014-09-05 | PDF 407.1 KB |

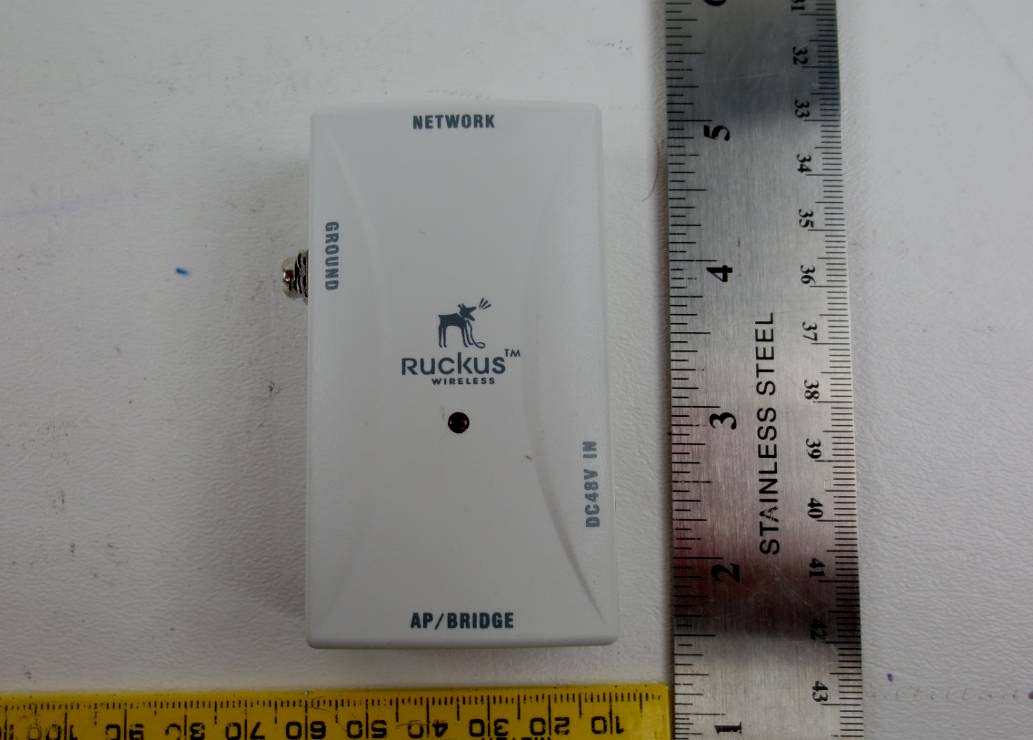

| Ext Photos | External Photos | 2016-03-18 | PDF 565 KB |
| Ext Photos | External Photos | 2014-09-05 | PDF 369.3 KB |
| Ext Photos | External Photos | 2014-09-05 | PDF 368.3 KB |
| FCC ID Label | ID Label/Location Info | 2016-03-18 | PDF 387.9 KB |

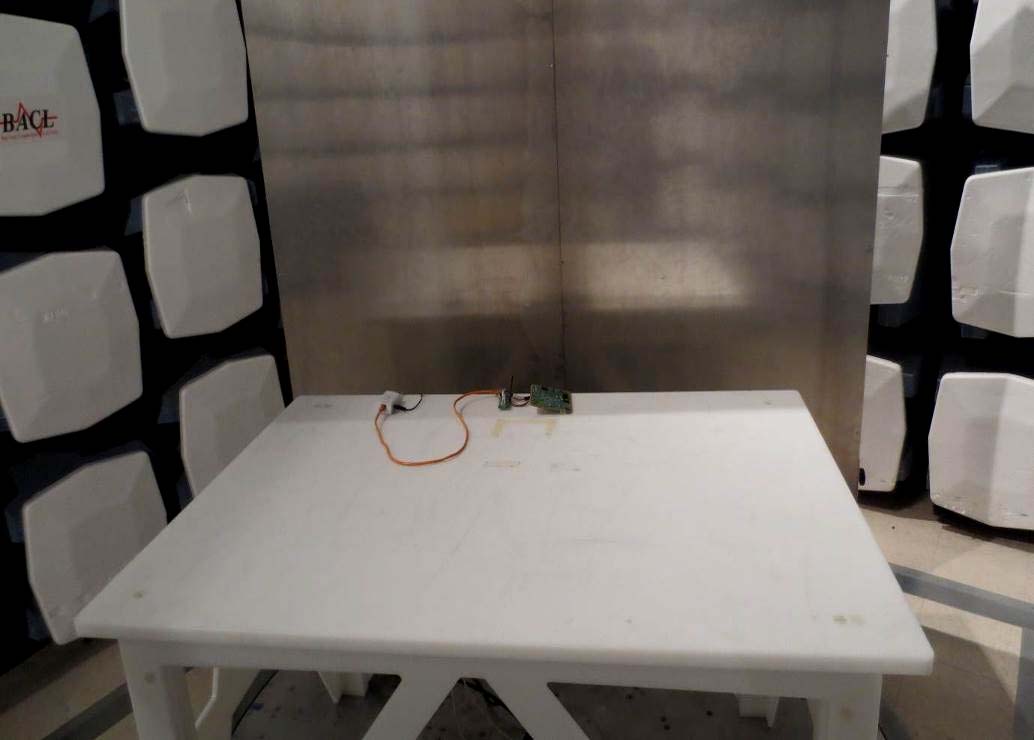

| Setup Photos | Test Setup Photos | 2016-03-18 | PDF 340.8 KB |
| Setup Photos | Test Setup Photos | 2014-09-05 | PDF 353 KB |
| Setup Photos | Test Setup Photos | 2014-09-05 | PDF 318.1 KB |
| DFS Report Metadata only | Test Report | 2016-03-18 | PDF 2.4 MB |
| DFS Report Rev | Test Report | 2016-03-18 | PDF 2.4 MB |
| Test Report W52 | Test Report | 2016-03-18 | PDF 1.6 MB |
| Trest Report W53 W56 | Test Report | 2016-03-18 | PDF 3 MB |
| Test Report | Test Report | 2014-09-05 | PDF 2 MB |
| Test Report | Test Report | 2014-09-05 | PDF 1.8 MB |
| Class II Permissive hHange Letter | Cover Letter(s) | 2016-03-18 | PDF 85.5 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-18 | PDF 89.2 KB |
| Confidentiality Letter | Cover Letter(s) | 2014-09-05 | PDF 89.9 KB |
| Module Approval Letter | Cover Letter(s) | 2014-09-05 | PDF 118.8 KB |
| POA | Cover Letter(s) | 2014-09-05 | PDF 85.3 KB |
| RF Exposure | RF Exposure Info | 2016-03-18 | PDF 22.7 KB |
| RF Exposure | RF Exposure Info | 2014-09-05 | PDF 25.5 KB |
| RF Exposure | RF Exposure Info | 2014-09-05 | PDF 22.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 51.1 KB | |
| Schematics Metadata only | Schematics | PDF 430.3 KB | |
| NII Device Security Declaration Rev Metadata only | Operational Description | PDF 429.5 KB | |
| Operation Description Metadata only | Operational Description | PDF 56.6 KB | |
| PAG Approved Metadata only | Operational Description | PDF 78.3 KB | |
| U-NII Devices Security Declaration Metadata only | Operational Description | PDF 425.4 KB |
Application Information
| Application ID | 1SyL7ShPUpOvMzy5DTI9cg== |
|---|---|
| Final Action Date | 2016-03-18 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0013389887 |
| Model | TDBAC22N |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 802.11ac AP Radio Module |
| Responsible Party | Ivaylo Tankov, Principal Wireless Compliance Engineering, certifications@commscope.com , 1-408-636-4361 |
| Test Firm | Lisa Tang, Bay Area Compliance Laboratories Corporation, lisat@baclcorp.com  , 408-732-9162 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Class II Permissive Change described in this filing. Limited Modular Approval. Output power listed is conducted. Approval is limited to OEM installation only. Device is an 802.11ac AP radio module operating with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This device has 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
