2413U PowerLincTM USB Block Diagram - FCC ID SBP2413U
FCC ID SBP2413U

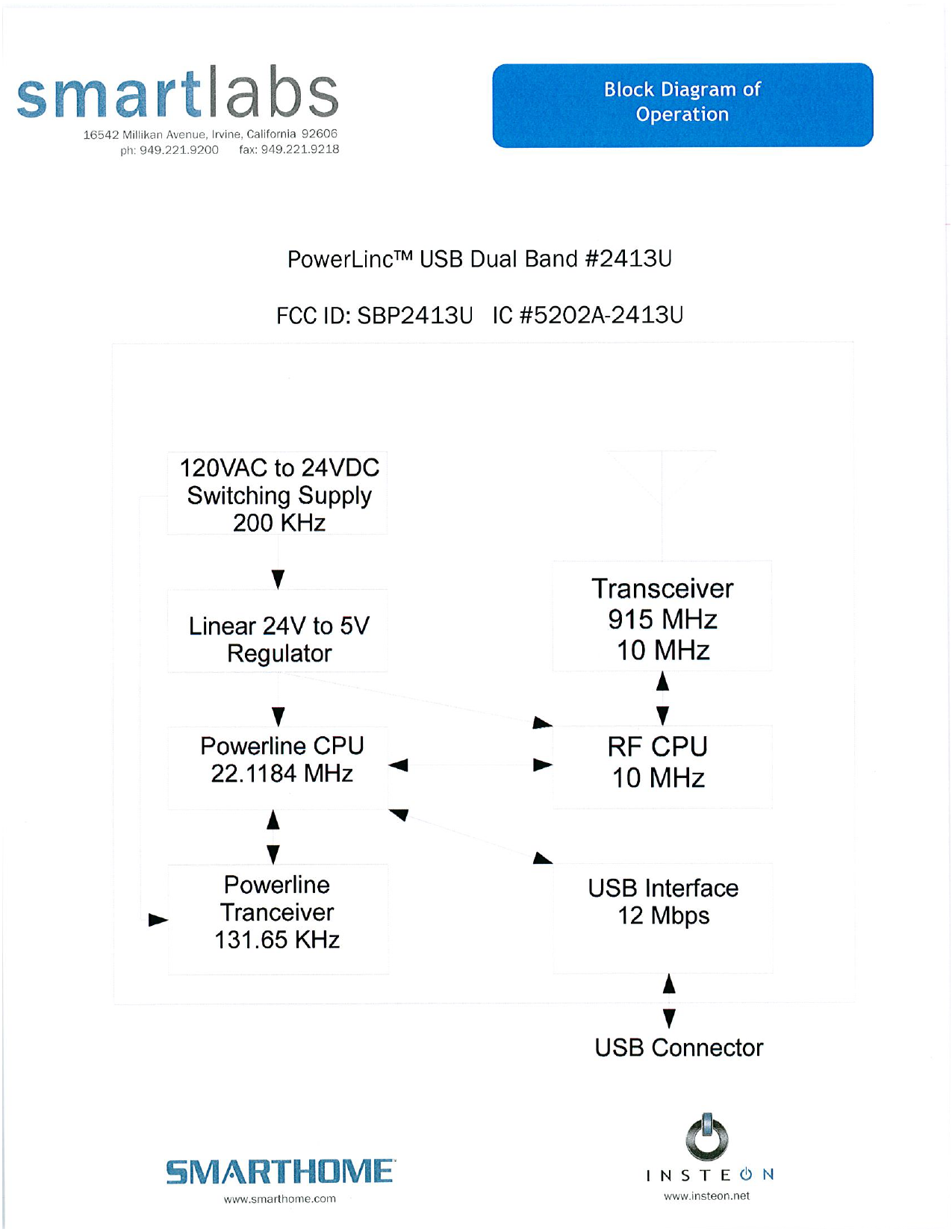

Block Diagram
PowerLincTM USB
Document preview loads when visible.
Document Details
| FCC ID | SBP2413U |
|---|---|
| Document ID | 1069172 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | None |
| Applicant | SmartLabs, Inc. |
| Equipment Class | PowerLincTM USB |
| Product Code | 2413U |
| Application ID | vUof+aBpZQzPHHFBXFPVMA== |
| Application Purpose | Original Equipment |
| Application Date | 2009-02-17 |
| Frequency Range | 914.94 MHz |
| FRN | 0011200474 |
| Test Firm | Compatible Electronics, Inc. |
| Certified By | Kyle Fujimoto Test Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2009-02-17 |
| Available | 2009-02-17 |
| Created | 2009-01-19 |
| Modified | 2009-01-19 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 214985 |
| File SHA-256 | 004a41533f32cfbf06febbb71ce01dabb23b1a8c46a65ba5f0fd06d50eea996d |
| PDF Metadata Author | None |
| PDF Metadata Creator | TOSHIBA e-STUDIO3530C |
| PDF Metadata Producer | MFPImgLib V4.0 |
| FCC.gov Sources | FCC.gov 1069172 |
