FCC ID SFX-TMAN4
Field Disturbance Sensor
by TrackMan A/S
Grantee Code: SFX Product Code: TMAN4
Latest application date: 2017-03-27
Device Images
FCC ID Device Details
| FCC ID | SFX-TMAN4 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | SFX |
| Product Code | TMAN4 |
| Applicant Business | TrackMan A/S 🇩🇰 |
| Related Domains |  trackman.dk  trackman.com |
| Equipment Class | Field Disturbance Sensor |
| Test Firm | EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INC |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2017-03-27 |
| 10501-10549 MHz | Original Equipment | 2017-03-27 |
| 5180-5240 MHz | Original Equipment | 2017-03-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

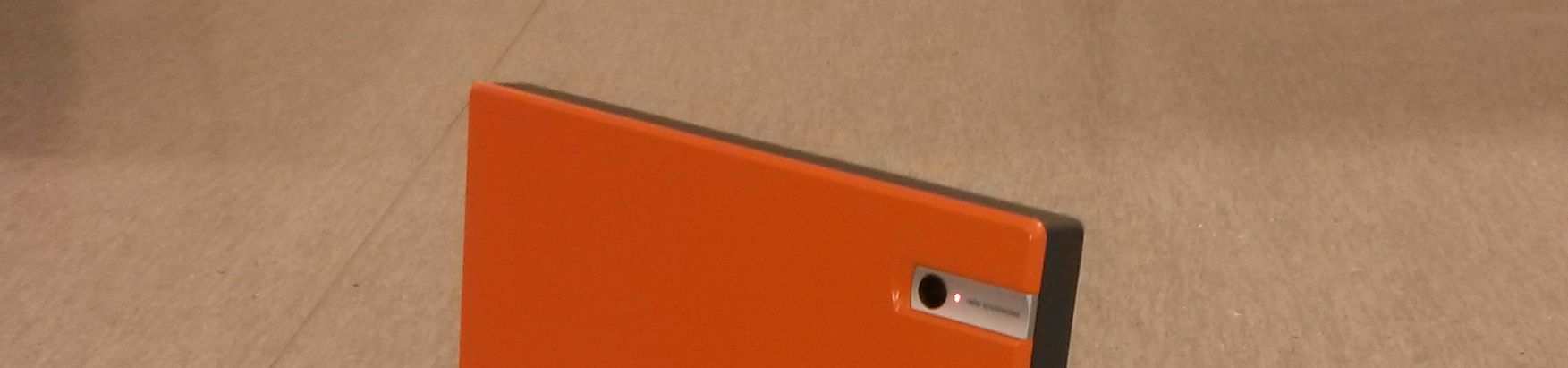

| Installation and safety instructions | Users Manual | 2017-03-27 | PDF 492.5 KB |
| Internal Pictures | Internal Photos | 2017-03-27 | PDF 1.7 MB |
| External Pictures | External Photos | 2017-03-27 | PDF 437.2 KB |
| Label | ID Label/Location Info | 2017-03-27 | PDF 240.3 KB |

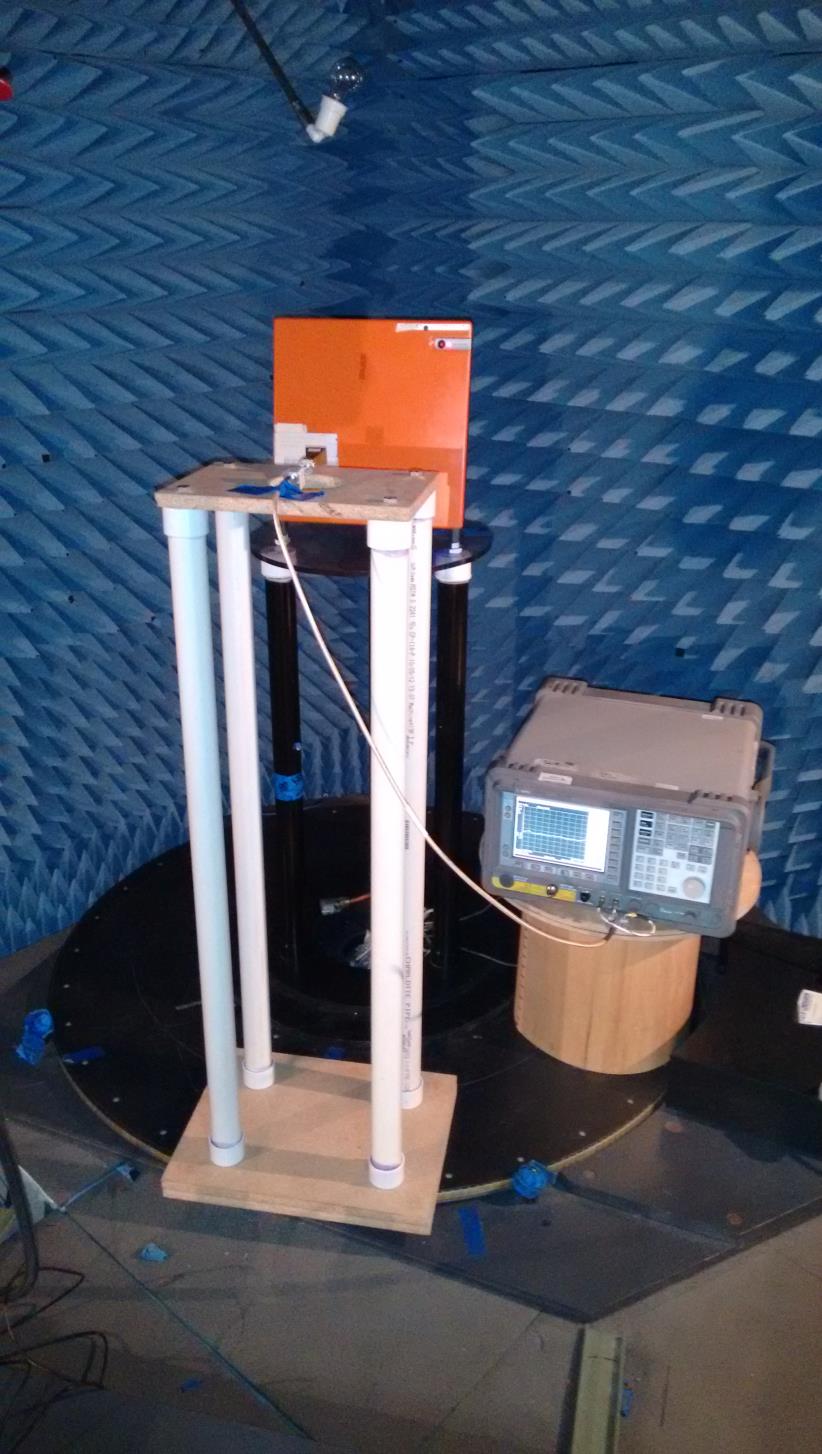

| Test Setup Photos | Test Setup Photos | 2017-03-27 | PDF 401 KB |

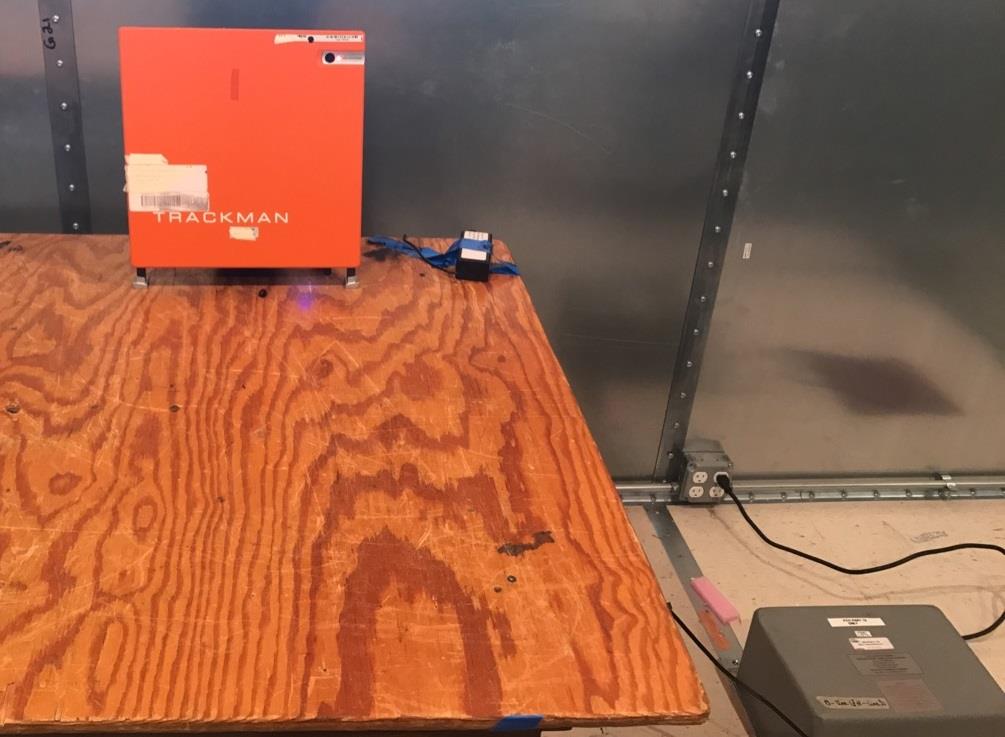

| Test Setup Photos | Test Setup Photos | 2017-03-27 | PDF 582.2 KB |

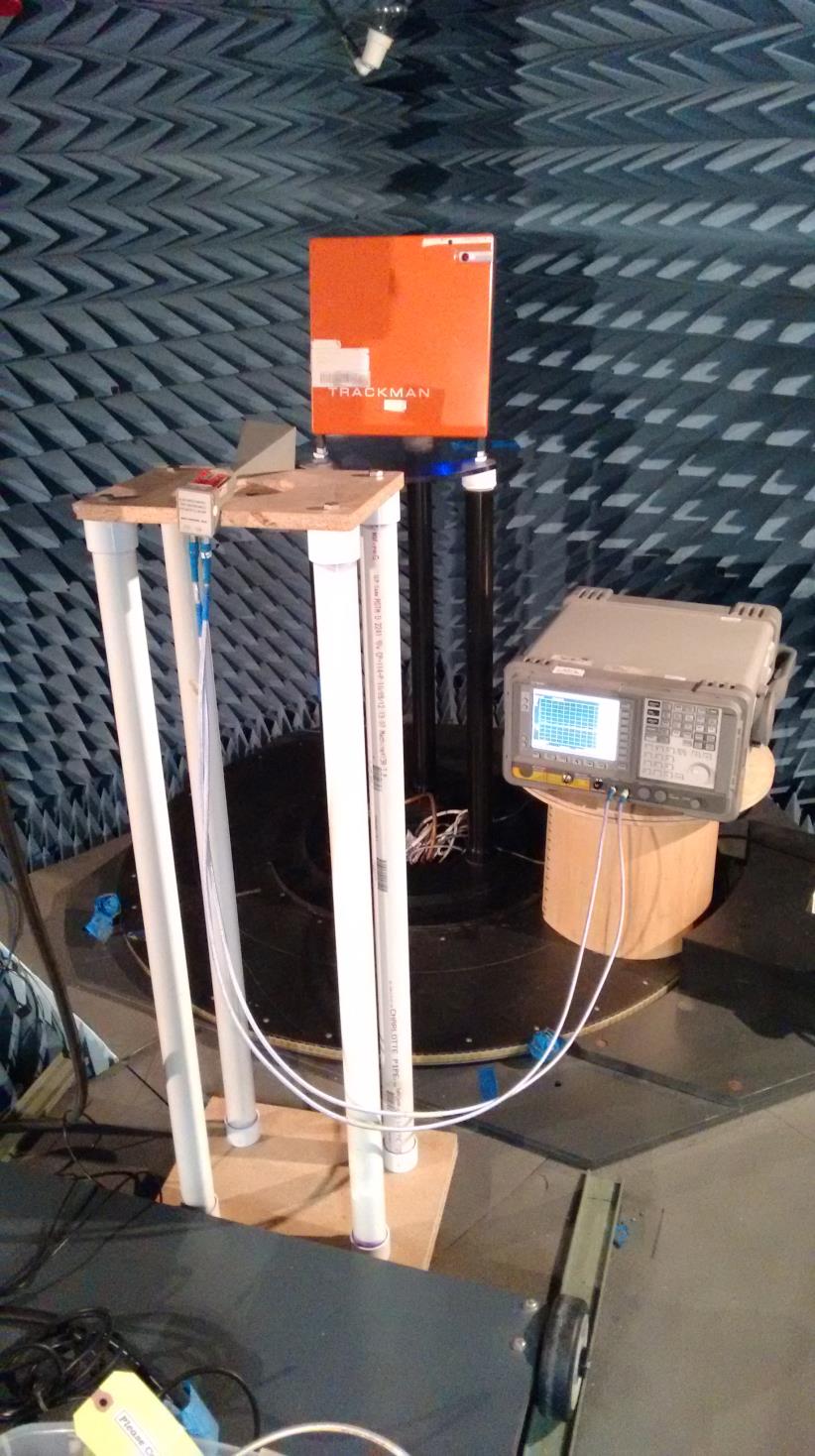

| Test Setup Photos | Test Setup Photos | 2017-03-27 | PDF 299.1 KB |
| Test Report | Test Report | 2017-03-27 | PDF 3.8 MB |
| Test Report | Test Report | 2017-03-27 | PDF 2.1 MB |
| Test Report Unii 1 | Test Report | 2017-03-27 | PDF 2.2 MB |
| Test Report Unii 3 | Test Report | 2017-03-27 | PDF 2.8 MB |
| Long Term Confidentiality Request Letter | Cover Letter(s) | 2017-03-27 | PDF 288.6 KB |
| Antenna Gain Declaration | RF Exposure Info | 2017-03-27 | PDF 302.8 KB |
| MPE | RF Exposure Info | 2017-03-27 | PDF 216.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 383.5 KB | |
| Schematics EU050009 Metadata only | Schematics | PDF 1.8 MB | |
| Schematics EU122001A2 Metadata only | Schematics | PDF 44 KB | |
| Schematics EU334002A7 Metadata only | Schematics | PDF 2.4 MB | |
| Operational and Technical Description Metadata only | Operational Description | PDF 259.5 KB |
Application Information
| Application ID | fY3q4n3MI6YCY4TT3lnRrg== |
|---|---|
| Final Action Date | 2017-03-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025268301 |
| Model | TMAN4 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Field Disturbance Sensor |
| Responsible Party | Morten Didriksen, Engineer, md@trackman.dk , +45 45 57 08 50 |
| Technical Contact | Morten Didriksen, Trackman A/S, md@trackman.com , 45 4557 0850 |
| Non-Technical Contact | Klaus Eldrup-Joerensen, Trackman A/S, kej@trackman.com , 45 4557 0850 |
| Test Firm | Greg Kovolenko, EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INC, greg.kovolenko@metlabs.com  , 4108444071 |
| TCB Email | tcbinfo@metlabs.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output listed is aggregate conducted for MIMO operation. This is a 2x2 MIMO operating in a configuration as described in this filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. This device supports 20 and 40 MHz bandwidth modes. |
