JS110BR1 RF Wireless Controller (Receiver... - FCC ID SGFJS110BR1

FCC ID SGFJS110BR1

Duty Cycle Plot

RF Wireless Controller (Receiver Module)

by Techcorp Limited

Document preview loads when visible.

Document Details

FCC IDSGFJS110BR1
Document ID494099
Document TypeTest Report
DescriptionDuty Cycle Plot

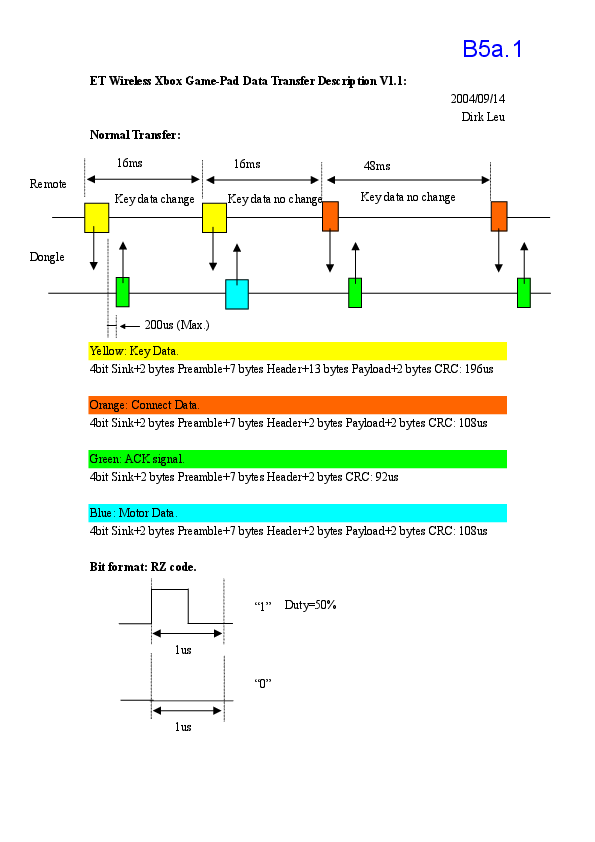

Document TitleET Wireless Xbox Game-Pad Data Transfer Description:
ApplicantTechcorp Limited
Equipment ClassRF Wireless Controller (Receiver Module)
Product CodeJS110BR1
Application IDXtN7MTHRERVkwsk8x587ag==
Application PurposeOriginal Equipment
Application Date2004-12-03
Frequency Range2440.75 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-12-03
Available2004-12-03
Created2004-10-09
Modified2004-12-03
Pages3
File TypeAdobe Acrobat PDF
File Size326273
File SHA-2562e7295e0b2c6aab011bd4055366cb7ae5884a258dcdbecab86e3d6b130c77ae8
PDF Metadata Authore
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) e
FCC.gov SourcesFCC.gov 494099
