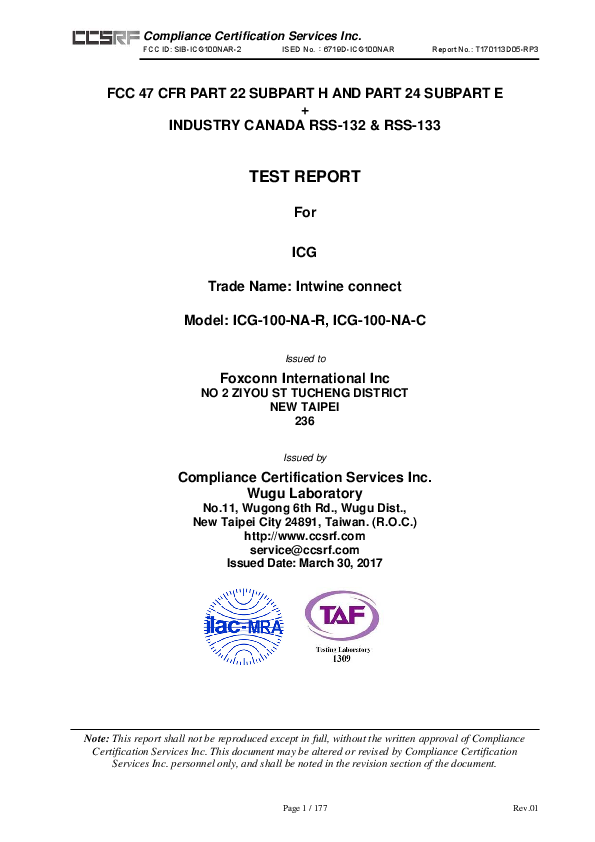

Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E
INDUSTRY CANADA RSS-132 & RSS-133
TEST REPORT
For
ICG
Trade Name: Intwine connect
Model: ICG-100-NA-R, ICG-100-NA-C
Issued to
Foxconn International Inc
NO 2 ZIYOU ST TUCHENG DISTRICT
NEW TAIPEI
236
Issued by
Compliance Certification Services Inc.
Wugu Laboratory
No.11, Wugong 6th Rd., Wugu Dist.,
New Taipei City 24891, Taiwan. (R.O.C.)
http://www.ccsrf.com
[email protected]
Issued Date: March 30, 2017
Note: This report shall not be reproduced except in full, without the written approval of Compliance
Certification Services Inc. This document may be altered or revised by Compliance Certification
Services Inc. personnel only, and shall be noted in the revision section of the document.
Page 1 / 177
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
Revision History
Rev.
Issue
Date
00
March 30, 2017
01
June 7, 2017
Effect
Page
Revised By
Initial Issue
ALL
Doris Chu
1. Modify section 7.2
P.28
Angel Cheng
Revisions
Page 2
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
TABLE OF CONTENTS
1. TEST RESULT CERTIFICATION ..................................................................................... 4
2. EUT DESCRIPTION .......................................................................................................... 5
3. TEST METHODOLOGY .................................................................................................... 6
3.1
3.2
EUT CONFIGURATION ............................................................................................ 6
DESCRIPTION OF TEST MODES............................................................................ 7
4. INSTRUMENT CALIBRATION ......................................................................................... 9
4.1
4.2
4.3
MEASURING INSTRUMENT CALIBRATION ........................................................... 9
MEASUREMENT EQUIPMENT USED ..................................................................... 9
MEASUREMENT UNCERTAINTY.......................................................................... 10
5. FACILITIES AND ACCREDITATIONS ........................................................................... 11
5.1
5.2
5.3
5.4
FACILITIES ............................................................................................................. 11
EQUIPMENT........................................................................................................... 11
LABORATORY ACCREDITATIONS AND LISTING ................................................ 11
TABLE OF ACCREDITATIONS AND LISTINGS..................................................... 12
6. SETUP OF EQUIPMENT UNDER TEST ........................................................................ 13
6.1
6.2
SETUP CONFIGURATION OF EUT ....................................................................... 13
SUPPORT EQUIPMENT ........................................................................................ 13
7. FCC PART 22 & 24 REQUIREMENTS & INDUSTRY CANADA RSS-132 & RSS-133 14
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
OUTPUT POWER MEASUREMENT ...................................................................... 14
ERP & EIRP MEASUREMENT ............................................................................... 25
FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ...................... 32
OCCUPIED BANDWIDTH MEASUREMENT .......................................................... 37
PEAK TO AVERAGE POWER RATIO .................................................................... 49
CONDUCTED BAND EDGE MEASUREMENT ...................................................... 60
CONDUCTED SPURIOUS EMISSIONS ............................................................... 101
SPURIOUS RADIATION MEASUREMENT .......................................................... 142
8. APPENDIX I PHOTOGRAPHS OF TEST SETUP ........................................................ 176
APPENDIX 1 - PHOTOGRAPHS OF EUT
Page 3
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
1. TEST RESULT CERTIFICATION
Applicant:
Foxconn International Inc
NO 2 ZIYOU ST TUCHENG DISTRICT
NEW TAIPEI
236
Manufacturer:
Foxconn International Inc
NO 2 ZIYOU ST TUCHENG DISTRICT
NEW TAIPEI
236
Equipment Under Test:
ICG
Trade Name:
Intwine connect
Model:
ICG-100-NA-R, ICG-100-NA-C
Date of Test:
February 9 ~ March 29, 2017
APPLICABLE STANDARDS
STANDARD
FCC 47 CFR PART 22 SUBPART H AND
PART 24 SUBPART E
RSS-132 Issue 3 and RSS-133 Issue 6
TEST RESULT
No non-compliance noted
We hereby certify that:
The above equipment was tested by Compliance Certification Services Inc. The test data,
data evaluation, test procedures, and equipment configurations shown in this report
were made in accordance with the procedures given in TIA/EIA-603-D:2010 and the
energy emitted by the sample EUT tested as described in this report is in compliance
with radiated emission limits of FCC Rule FCC PART 22 Subpart H, PART 24 Subpart E
and IC RSS-132 Issue 3 and IC RSS-133 Issue 6.
The test results of this report relate only to the tested sample identified in this report.
Approved by:
Tested by:
Sam Chuang
Manager
Compliance Certification Services Inc.
Timmy Wang
Engineer
Compliance Certification Services Inc.
Page 4
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
2. EUT DESCRIPTION
ICG
Intwine connect
ICG-100-NA-R, ICG-100-NA-C
ICG-100-NA-R: Plastic
Model Discrepancy
ICG-100-NA-C: Metal
January 13, 2017
Received Date
VDC from Power Adapter
For ICG-100-NA-R
1. DVE / DSA-18PFM-12FUS
I/P: 100-240Vac, 0.6A, 50-60Hz
O/P: 12Vdc, 1.5A
2. MEAN WELL / GST18U12
Power Supply
I/P: 100-240Vac, 0.5A, 50-60Hz
O/P: 12Vdc, 1.5A
For ICG-100-NA-C
1. DVE / DSA-18PFM-12FUS
I/P: 100-240Vac, 0.6A, 50-60Hz
O/P: 12Vdc, 1.5A
LTE Band 2
QPSK, 16QAM
Modulation Technique
LTE Band 5
QPSK, 16QAM
Dipole Antenna
taoglas / Gain 3 dBi(Worse)
Antenna Specification
FIT / Gain 1.59 dBi
Remark: The sample selected for test was engineering sample that approximated to
production product and was provided by manufacturer.
Product
Trade Name
Model:
Emission Designator
QPSK
BW
Band Frequency Range(MHz)
(MHz)
1850.7MHz ~1909.2MHz
1.4
Emission
Designator
(99% OBW)
1M09G7D
1851.5MHz ~1908.4MHz
2M68G7D
0.8054
2M68D7W
0.8279
1852.5MHz ~1907.5MHz
4M47G7D
0.7834
4M48D7W
0.8166
1855MHz ~1905MHz
10
8M94G7D
0.8128
8M91D7W
0.9661
1857.5MHz ~1902.5MHz
15
13M4G7D
0.9462
13M4D7W
0.9204
1860MHz ~1900MHz
20
18M0G7D
0.9727
18M0D7W
0.9931
BW
Band Frequency Range(MHz)
(MHz)
16QAM
Emission
Maximum
Designator
EIRP (W)
(99% OBW)
1M10D7W
0.8414
Maximum
EIRP (W)
0.9661
QPSK
Emission
Maximum
Designator
ERP (W)
(99% OBW)
1M09G7D
1.2474
16QAM
Emission
Maximum
Designator
ERP (W)
(99% OBW)
1M09D7W
0.9840
824.7MHz ~848.2MHz
1.4
825.5MHz~847.4MHz
2M68G7D
1.0914
2M67D7W
1.2794
826.5MHz ~846.5MHz
4M47G7D
1.0765
4M47D7W
1.1885
829MHz ~844MHz
10
8M94G7D
1.1858
8M91D7W
1.0740
Page 5
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
3. TEST METHODOLOGY
Both conducted and radiated testing were performed according to TIA/EIA-603-D: 2010,
FCC CFR 47, Part 2 and Part 22 Subpart H & Part 24 Subpart E.
The tests documented in this report were performed in accordance with IC RSS-132,
SPSR503, RSS-133, SPSR510 and ANSI C63.26: 2015.
3.1 EUT CONFIGURATION
The EUT configuration for testing is installed on RF field strength measurement to meet
the Commissions requirement and operating in a manner that intends to maximize its
emission characteristics in a continuous normal application.
Page 6
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
3.2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
DESCRIPTION OF TEST MODES
The EUT (Model: ICG-100-NA-R) had been tested under operating condition.
The EUT be set in maximum power transmission via call box during testing.
LTE Band 2: 1850MHz ~ 1910MHz
Three channels had been tested for each channel bandwidth.
1.4MHz
Channel
3MHz
5MHz
Channel Frequency(MHz) Channel Frequency(MHz) Channel Frequency(MHz)
Lowest
18607
1850.7
18615
1851.5
18625
1852.5
Middle
18900
1880.0
18900
1880.0
18900
1880.0
Highest
19193
1909.2
19184
1908.4
19175
1907.5
10MHz
Channel
15MHz
20MHz
Channel Frequency(MHz) Channel Frequency(MHz) Channel Frequency(MHz)
Lowest
18650
1855.0
18675
1857.5
18700
1860.0
Middle
18900
1880.0
18900
1880.0
18900
1880.0
Highest
19150
1905.0
19125
1902.5
19100
1900.0
LTE Band 5: 824MHz ~ 849MHz
Three channels had been tested for each channel bandwidth.
1.4MHz
Channel
3MHz
Channel
Frequency(MHz)
Channel
Frequency(MHz)
Lowest
20407
824.7
20415
825.5
Middle
20525
836.5
20525
836.5
Highest
20642
848.2
20634
847.4
5MHz
Channel
10MHz
Channel
Frequency(MHz)
Channel
Frequency(MHz)
Lowest
20425
826.5
20450
829.0
Middle
20525
836.5
20525
836.5
Highest
20625
846.5
20600
844.0
Page 7
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
Radiated Emission Measurement Above 1G
Test Condition
Band edge, Emission for Unwanted and Fundamental
Voltage/Hz
120V/60Hz
Test Mode
Worst Mode
Worst Position
Mode 1:EUT power by AC adapter via power cable.
Mode 1
Mode 2
Mode 3
Mode 4
Placed in fixed position.
Placed in fixed position at X-Plane (E2-Plane)
Placed in fixed position at Y-Plane (E1-Plane)
Placed in fixed position at Z-Plane (H-Plane)
Remark:
1. The worst mode was record in this test report.
2. EUT pre-scanned in ICG-100-NA-Cand ICG-100-NA-R for below 1GHz radiated
measurement. The worst case ICG-100-NA-R were recorded in this report.
Page 8
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
4. INSTRUMENT CALIBRATION
4.1
MEASURING INSTRUMENT CALIBRATION
The measuring equipment, which was utilized in performing the tests documented herein,
has been calibrated in accordance with the manufacturer's recommendations for utilizing
calibration equipment, which is traceable to recognized national standards.
4.2
MEASUREMENT EQUIPMENT USED
Equipment Used for Emissions Measurement
Remark: Each piece of equipment is scheduled for calibration once a year.
Conducted Emissions Test Site
Name of Equipment Manufacturer
Model
Serial Number Calibration Date Calibration Due
Base Station
Anritsu
MT-8820C
101245
02/18/2016
02/17/2017
Wugu Fully Chamber B
Name of Equipment Manufacturer
Signal Analyzer
Agilent
Pre-Amplifier
Bilog Antenna
Horn Antenna
Pre-Amplifier
Horn Antenna
Antenna Tower
Controller
Turn Table
Software
MITEQ
Sunol
Sciences
EMCO
EMEC
ETC
CCS
CCS
CCS
Model
Serial Number Calibration Date Calibration Due
E4407B
MY44212686
04/09/2016
04/08/2017
AFS44-00102
650-42-10P-4
1042473
07/06/2016
07/05/2017
JB3
A030105
07/03/2016
07/02/2017
3115
9602-4659
06/01/2016
EM330
60609
06/08/2016
MCTD 1209 DRH13M02003
09/02/2016
CC-A-1F
N/A
N.C.R
CC-C-1F
N/A
N.C.R
CC-T-1F
N/A
N.C.R
EZ-EMC (CCS-3A1RE)
05/31/2017
06/07/2017
09/01/2017
N.C.R
N.C.R
N.C.R
Page 9
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
4.3
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
MEASUREMENT UNCERTAINTY
PARAMETER
UNCERTAINTY
3M Semi Anechoic Chamber / 30M~200M
+/- 4.0138
3M Semi Anechoic Chamber / 200M~1000M
+/- 3.9483
3M Semi Anechoic Chamber / 1G~8G
+/- 2.5975
3M Semi Anechoic Chamber / 8G~18G
+/- 2.6112
3M Semi Anechoic Chamber / 18G~26G
+/- 2.7389
3M Semi Anechoic Chamber / 26G~40G
+/- 2.9683
Remark: This uncertainty represents an expanded uncertainty expressed at approximately the 95%
confidence level using a coverage factor of k=2.
Page 10
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
5. FACILITIES AND ACCREDITATIONS
5.1 FACILITIES
All measurement facilities used to collect the measurement data are located at
No.199, Chunghsen Road, Hsintien City, Taipei Hsien, Taiwan, R.O.C.
Tel: 886-2-2217-0894 / Fax: 886-2-2217-1029
No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.)
Tel: 886-2-2299-9720 / Fax: 886-2-2298-4045
No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, TAIWAN,
R.O.C.
Tel: 886-3-324-0332 / Fax: 886-3-324-5235
The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI
C63.10: 2013 and CISPR Publication 22.
5.2 EQUIPMENT
Radiated emissions are measured with one or more of the following types of linearly
polarized antennas: tuned dipole, biconical, log periodic, bi-log, and/or ridged waveguide,
horn. Spectrum analyzers with pre-selectors and quasi-peak detectors are used to
perform radiated measurements.
Conducted emissions are measured with Line Impedance Stabilization Networks and
EMI Test Receivers.
Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used
for making measurements.
All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference
Measuring Apparatus and Measurement Methods.”
5.3 LABORATORY ACCREDITATIONS AND LISTING
The test facilities used to perform radiated and conducted emissions tests are accredited
by American Association for Laboratory Accreditation Program for the specific scope
accreditation under Lab Code: 0824-01 to perform Electromagnetic Interference tests
according to FCC Part 15 and CISPR 22 requirements. In addition, the test facilities are
listed with Industry Canada, Certification and Engineering Bureau, IC 2324G-1 for 3M
Semi Anechoic Chamber A, 2324G-2 for 3M Semi Anechoic Chamber B.
Page 11
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
5.4 TABLE OF ACCREDITATIONS AND LISTINGS
Country Agency Scope of Accreditation
USA
FCC
Logo
3M Semi Anechoic Chamber (FCC MRA: TW1039) to perform
FCC Part 15 measurements
FCC MRA: TW1039
Taiwan
TAF
LP0002, RTTE01, FCC Method-47 CFR Part 15 Subpart C, D, E,
RSS-210, RSS-310
IDA TS SRD, AS/NZS 4268, AS/NZS 4771, TS 12.1 & 12,2,
ETSI EN 300 440-1, ETSI EN 300 440-2, ETSI EN 300 328,
ETSI EN 300 220-1, ETSI EN 300 220-2, ETSI EN 301 893,
ETSI EN 301 489-1/3/7/17
FCC OET Bulletin 65 + Supplement C,
EN 50360, EN 50361, EN 50371, RSS 102, EN 50383, EN
50385,
EN 50392, IEC 62209, CNS 14958-1, CNS 14959
FCC Method –47 CFR Part 15 Subpart B
IEC / EN 61000-3-2, IEC / EN 61000-3-3,
IEC / EN 61000-4-2/3/4/5/6/8/11
Canada
Industry
Canada
3M Semi Anechoic Chamber (IC 2324G-1 / IC 2324G-2) to
perform
IC 2324G-1
IC 2324G-2
* No part of this report may be used to claim or imply product endorsement by A2LA or any agency of the US
Government.
Page 12
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
6. SETUP OF EQUIPMENT UNDER TEST
6.1 SETUP CONFIGURATION OF EUT
See test photographs attached in Appendix II for the actual connections between EUT
and support equipment.
6.2 SUPPORT EQUIPMENT
No Equipment
Notebook
Brand
Model
Series No.
FCC ID
Data Cable
Power Cord
Acer
Aspire 4320
series
N/A
QDS-BRCM1018
N/A
N/A
Remark:
1.
2.
All the equipment/cables were placed in the worst-case configuration to maximize
the emission during the test.
Grounding was established in accordance with the manufacturer’s requirements
and conditions for the intended use.
Page 13
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
7. FCC PART 22 & 24 REQUIREMENTS & INDUSTRY CANADA
RSS-132 & RSS-133
7.1
OUTPUT POWER MEASUREMENT
Test Procedures
CONDUCTED POWER MEASUREMENT:
1. The transmitter output power was connected to the call box.
2. Set EUT at maximum output power via call box.
3. Set Call box at lowest, middle and highest channels for each band and modulation.
Page 14
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
TEST RESULTS
LTE Band 5
Band
BW
Frequency
Channel
(MHz)
(MHz)
Mode
QPSK
20407
824.7
16QAM
QPSK
1.4
20525
836.5
16QAM
QPSK
20642
848.2
16QAM
UL RB UL RB
Average power Average Power
MPR
Allocation Offset
(dBm)
(W)
Page 15
23.32
23.44
23.22
22.38
22.46
22.26
22.46
22.33
22.48
22.26
21.35
21.48
21.23
21.26
23.46
23.23
23.31
22.52
22.30
22.40
22.55
22.52
22.30
22.37
21.53
21.27
21.33
21.37
23.20
23.13
22.93
22.25
22.14
21.97
22.30
22.23
22.25
21.98
21.25
21.14
20.98
21.04
0.2148
0.2208
0.2099
0.1730
0.1762
0.1683
0.1762
0.1710
0.1770
0.1683
0.1365
0.1406
0.1327
0.1337
0.2218
0.2104
0.2143
0.1786
0.1698
0.1738
0.1799
0.1786
0.1698
0.1726
0.1422
0.1340
0.1358
0.1371
0.2089
0.2056
0.1963
0.1679
0.1637
0.1574
0.1698
0.1671
0.1679
0.1578
0.1334
0.1300
0.1253
0.1271
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5
Band
BW
Frequency
Channel
(MHz)
(MHz)
Mode
QPSK
20415
825.5
16QAM
QPSK
20525
836.5
16QAM
QPSK
20634
847.4
16QAM
UL RB UL RB
Average power Average Power
MPR
Allocation Offset
(dBm)
(W)
15
15
15
15
15
15
Page 16
14
14
14
14
14
14
23.35
23.47
23.25
22.41
22.49
22.29
22.49
22.36
22.51
22.29
21.38
21.51
21.26
21.29
23.47
23.24
23.32
22.53
22.31
22.41
22.56
22.53
22.31
22.38
21.54
21.28
21.34
21.38
23.22
23.15
22.95
22.27
22.16
21.99
22.32
22.25
22.27
22.00
21.27
21.16
21.00
21.06
0.2163
0.2223
0.2113
0.1742
0.1774
0.1694
0.1774
0.1722
0.1782
0.1694
0.1374
0.1416
0.1337
0.1346
0.2223
0.2109
0.2148
0.1791
0.1702
0.1742
0.1803
0.1791
0.1702
0.1730
0.1426
0.1343
0.1361
0.1374
0.2099
0.2065
0.1972
0.1687
0.1644
0.1581
0.1706
0.1679
0.1687
0.1585
0.1340
0.1306
0.1259
0.1276
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5
Band
BW
Frequency
Channel
(MHz)
(MHz)
Mode
QPSK
20425
826.5
16QAM
QPSK
20525
836.5
16QAM
QPSK
20625
846.5
16QAM
UL RB UL RB
Average power Average Power
MPR
Allocation Offset
(dBm)
(W)
12
12
12
25
12
12
12
25
12
12
12
25
12
12
12
25
12
12
12
25
12
12
12
25
Page 17
12
24
11
12
24
11
12
24
11
12
24
11
12
24
11
12
24
11
23.37
23.49
23.27
22.43
22.51
22.31
22.51
22.38
22.53
22.31
21.40
21.53
21.28
21.31
23.48
23.25
23.33
22.54
22.32
22.42
22.57
22.54
22.32
22.39
21.55
21.29
21.35
21.39
23.24
23.17
22.97
22.29
22.18
22.01
22.34
22.27
22.29
22.02
21.29
21.18
21.02
21.08
0.2173
0.2234
0.2123
0.1750
0.1782
0.1702
0.1782
0.1791
0.1702
0.1380
0.1422
0.1343
0.1352
0.1791
0.2228
0.2113
0.2153
0.1795
0.1706
0.1746
0.1807
0.1795
0.1706
0.1734
0.1429
0.1346
0.1365
0.1377
0.2109
0.2075
0.1982
0.1694
0.1652
0.1589
0.1714
0.1687
0.1694
0.1592
0.1346
0.1312
0.1265
0.1282
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5
Band
BW
Frequency
Channel
(MHz)
(MHz)
Mode
QPSK
20450
829.0
16QAM
QPSK
10
20525
836.5
16QAM
QPSK
20600
844.0
16QAM
UL RB UL RB
Average power Average Power
MPR
Allocation Offset
(dBm)
(W)
25
25
25
50
25
25
25
50
25
25
25
50
25
25
25
50
25
25
25
50
25
25
25
50
Page 18
24
49
12
24
24
49
12
24
24
49
12
24
24
49
12
24
24
49
12
24
24
49
12
24
23.42
23.54
23.32
22.48
22.56
22.36
22.56
22.43
22.58
22.36
21.45
21.58
21.33
21.36
23.52
23.29
23.37
22.58
22.36
22.46
22.61
22.58
22.36
22.43
21.59
21.33
21.39
21.43
23.31
23.24
23.04
22.36
22.25
22.08
22.41
22.34
22.36
22.09
21.36
21.25
21.09
21.15
0.2198
0.2259
0.2148
0.1770
0.1803
0.1722
0.1803
0.1750
0.1811
0.1722
0.1396
0.1439
0.1358
0.1368
0.2249
0.2133
0.2173
0.1811
0.1722
0.1762
0.1824
0.1811
0.1722
0.1750
0.1442
0.1358
0.1377
0.1390
0.2143
0.2109
0.2014
0.1722
0.1679
0.1614
0.1742
0.1714
0.1722
0.1618
0.1368
0.1334
0.1285
0.1303
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
Band
BW
Channel
(MHz)
Frequency
(MHz)
Mode
QPSK
18607
1850.7
16QAM
QPSK
1.4
18900
1880.0
16QAM
QPSK
19192
1909.2
16QAM
UL RB
UL RB
MPR
Allocation Offset
Page 19
Average
power
(dBm)
23.81
23.70
23.27
22.93
22.86
22.34
22.90
22.81
22.71
22.30
21.83
21.74
21.29
21.31
23.47
23.42
23.39
22.54
22.44
22.44
22.49
22.54
22.50
22.47
21.55
21.47
21.45
21.57
23.44
23.33
23.31
22.58
22.34
22.38
22.46
22.56
22.36
22.41
21.53
21.41
21.40
21.43
Average
Power
(W)
0.2404
0.2344
0.2123
0.1963
0.1932
0.1714
0.1950
0.1910
0.1866
0.1698
0.1524
0.1493
0.1346
0.1352
0.2223
0.2198
0.2183
0.1795
0.1754
0.1754
0.1774
0.1795
0.1778
0.1766
0.1429
0.1403
0.1396
0.1435
0.2208
0.2153
0.2143
0.1811
0.1714
0.1730
0.1762
0.1803
0.1722
0.1742
0.1422
0.1384
0.1380
0.1390
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
Band
BW
Channel
(MHz)
Frequency
(MHz)
Mode
QPSK
18615
1851.5
16QAM
QPSK
18900
1880.0
16QAM
QPSK
19184
1908.4
16QAM
UL RB
UL RB
MPR
Allocation Offset
15
15
15
15
15
15
Page 20
14
14
14
14
14
14
Average
power
(dBm)
23.82
23.71
23.28
22.94
22.87
22.35
22.91
22.82
22.72
22.31
21.84
21.75
21.30
21.32
23.48
23.43
23.40
22.55
22.45
22.45
22.50
22.55
22.51
22.48
21.56
21.48
21.46
21.58
23.46
23.35
23.33
22.60
22.36
22.40
22.48
22.58
22.38
22.43
21.55
21.43
21.42
21.45
Average
Power
(W)
0.2410
0.2350
0.2128
0.1968
0.1936
0.1718
0.1954
0.1914
0.1871
0.1702
0.1528
0.1496
0.1349
0.1355
0.2228
0.2203
0.2188
0.1799
0.1758
0.1758
0.1778
0.1799
0.1782
0.1770
0.1432
0.1406
0.1400
0.1439
0.2218
0.2163
0.2153
0.1820
0.1722
0.1738
0.1770
0.1811
0.1730
0.1750
0.1429
0.1390
0.1387
0.1396
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
Band
BW
Channel
(MHz)
Frequency
(MHz)
Mode
QPSK
18625
1852.5
16QAM
QPSK
18900
1880.0
16QAM
QPSK
19175
1907.5
16QAM
UL RB
UL RB
MPR
Allocation Offset
12
12
12
25
12
12
12
25
12
12
12
25
12
12
12
25
12
12
12
25
12
12
12
25
Page 21
12
24
11
12
24
11
12
24
11
12
24
11
12
24
11
12
24
11
Average
power
(dBm)
23.87
23.76
23.33
22.99
22.92
22.40
22.96
22.87
22.77
22.36
21.89
21.80
21.35
21.37
23.52
23.47
23.44
22.59
22.49
22.49
22.54
22.59
22.55
22.52
21.60
21.52
21.50
21.62
23.51
23.40
23.38
22.65
22.41
22.45
22.53
22.63
22.43
22.48
21.60
21.48
21.47
21.50
Average
Power
(W)
0.2438
0.2377
0.2153
0.1991
0.1959
0.1738
0.1977
0.1936
0.1892
0.1722
0.1545
0.1514
0.1365
0.1371
0.2249
0.2223
0.2208
0.1816
0.1774
0.1774
0.1795
0.1816
0.1799
0.1786
0.1445
0.1419
0.1413
0.1452
0.2244
0.2188
0.2178
0.1841
0.1742
0.1758
0.1791
0.1832
0.1750
0.1770
0.1445
0.1406
0.1403
0.1413
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
Band
BW
Channel
(MHz)
Frequency
(MHz)
Mode
QPSK
18650
1855.0
16QAM
QPSK
10
18900
1880.0
16QAM
QPSK
19150
1905.0
16QAM
UL RB
UL RB
MPR
Allocation Offset
25
25
25
50
25
25
25
50
25
25
25
50
25
25
25
50
25
25
25
50
25
25
25
50
Page 22
24
49
12
24
24
49
12
24
24
49
12
24
24
49
12
24
24
49
12
24
24
49
12
24
Average
power
(dBm)
23.89
23.78
23.35
23.01
22.94
22.42
22.98
22.89
22.79
22.38
21.91
21.82
21.37
21.39
23.54
23.49
23.46
22.61
22.51
22.51
22.56
22.61
22.57
22.54
21.62
21.54
21.52
21.64
23.54
23.43
23.41
22.68
22.44
22.48
22.56
22.66
22.46
22.51
21.63
21.51
21.50
21.53
Average
Power
(W)
0.2449
0.2388
0.2163
0.2000
0.1968
0.1746
0.1986
0.1945
0.1901
0.1730
0.1552
0.1521
0.1371
0.1377
0.2259
0.2234
0.2218
0.1824
0.1782
0.1782
0.1803
0.1824
0.1807
0.1795
0.1452
0.1426
0.1419
0.1459
0.2259
0.2203
0.2193
0.1854
0.1754
0.1770
0.1803
0.1845
0.1762
0.1782
0.1455
0.1416
0.1413
0.1422
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
Band
BW
Channel
(MHz)
Frequency
(MHz)
Mode
QPSK
18675
1857.5
16QAM
QPSK
15
18900
1880.0
16QAM
QPSK
19125
1902.5
16QAM
UL RB
UL RB
MPR
Allocation Offset
36
36
36
75
36
36
36
75
36
36
36
75
36
36
36
75
36
36
36
75
36
36
36
75
Page 23
37
74
18
35
37
74
18
35
37
74
18
35
37
74
18
35
37
74
18
35
37
74
18
35
Average
power
(dBm)
23.90
23.79
23.36
23.02
22.95
22.43
22.99
22.90
22.80
22.39
21.92
21.83
21.38
21.40
23.55
23.50
23.47
22.62
22.52
22.52
22.57
22.62
22.58
22.55
21.63
21.55
21.53
21.65
23.55
23.44
23.42
22.69
22.45
22.49
22.57
22.67
22.47
22.52
21.64
21.52
21.51
21.54
Average
Power
(W)
0.2455
0.2393
0.2168
0.2004
0.1972
0.1750
0.1991
0.1950
0.1905
0.1734
0.1556
0.1524
0.1374
0.1380
0.2265
0.2239
0.2223
0.1828
0.1786
0.1786
0.1807
0.1828
0.1811
0.1799
0.1455
0.1429
0.1422
0.1462
0.2265
0.2208
0.2198
0.1858
0.1758
0.1774
0.1807
0.1849
0.1766
0.1786
0.1459
0.1419
0.1416
0.1426
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
Band
BW
Channel
(MHz)
Frequency
(MHz)
Mode
QPSK
18700
1860.0
16QAM
QPSK
20
18900
1880.0
16QAM
QPSK
19100
1900.0
16QAM
UL RB
UL RB
MPR
Allocation Offset
50
50
50
100
50
50
50
100
50
50
50
100
50
50
50
100
50
50
50
100
50
50
50
100
Page 24
49
99
24
49
49
99
24
49
49
99
24
49
49
99
24
49
49
99
24
49
49
99
24
49
Average
power
(dBm)
23.93
23.82
23.39
23.05
22.98
22.46
23.02
22.93
22.83
22.42
21.95
21.86
21.41
21.43
23.61
23.56
23.53
22.68
22.58
22.58
22.63
22.68
22.64
22.61
21.69
21.61
21.59
21.71
23.62
23.51
23.49
22.76
22.52
22.56
22.64
22.74
22.54
22.59
21.71
21.59
21.58
21.61
Average
Power
(W)
0.2472
0.2410
0.2183
0.2018
0.1986
0.1762
0.2004
0.1963
0.1919
0.1746
0.1567
0.1535
0.1384
0.1390
0.2296
0.2270
0.2254
0.1854
0.1811
0.1811
0.1832
0.1854
0.1837
0.1824
0.1476
0.1449
0.1442
0.1483
0.2301
0.2244
0.2234
0.1888
0.1786
0.1803
0.1837
0.1879
0.1795
0.1816
0.1483
0.1442
0.1439
0.1449
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
7.2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
ERP & EIRP MEASUREMENT
LIMIT
According to FCC §2.1046
FCC 22.913(b):
The Effective Radiated Power (ERP) of mobile transmitters must not exceed 7 Watts.
FCC 24.232(b):
The equivalent Isotropic Radiated Power (EIRP) must not exceed 2 Watts.
According to RSS-132, section 5.4
The transmitter output power shall be measured in terms of average power. The
equivalent isotropically radiated power (e.i.r.p.) for mobile equipment shall not exceed
11.5 watts. Refer to SRSP-503 for base station e.i.r.p. limits.
According to RSS-133, section 6.4
The equivalent isotropically radiated power (e.i.r.p.) for transmitters shall not exceed the
limits given in SRSP-510. Moreover, base station transmitters operating in the band
1930-1995 MHz shall not have output power exceeding 100 watts.
Page 25
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
Test Configuration
Below 1 GHz
Antenna
tower
Bi-log
antenna
3m
EUT
4m
Spectrum
analyzer
Turntable
1m
0.8m
Reference ground plane
Above 1 GHz
Antenna
tower
Horn
antenna
3m
EUT
4m
Spectrum
analyzer
Turntable
0.8m
1m
Pre-amp
▲▲▲
Page 26
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
For Substituted Method Test Set-UP
Antenna mast
Ground plane
d: distance in
meters
d = 3 meters
1-4 meter
1m
S.G.
SPA
Substituted Half-wave Dipole or Horn Antenna
Bi-Log Antenna or Horn Antenna
TEST PROCEDURE
1. The EUT was placed on a non-conductive rotating platform (0.8m for below 1G and
above 1G) in a semi-chamber. The radiated emission at the fundamental frequency was
measured at 3m and SA with RMS detector per section 5, KDB 971168 D01.
2. During the measurement, the call box parameters were set to get the maximum output
power of the EUT. The maximum emission was recorded from spectrum analyzer power
level (LVL) from 360 degrees rotation of turntable and the test antenna raised and lowered
over a range from 1m to 4m in both horizontally and vertically polarized orientations.
3. EIRP was measured method according to TIA/EIA-603-D:2010. The EUT was replaced
by the substitution antenna at same location, and then record the maximum Analyzer
reading through raised and lowered the test antenna.
ERP = S.G. output (dBm) + Antenna Gain (dBi) – Cable (dB)-2.15
EIRP = S.G. output (dBm) + Antenna Gain (dBi) – Cable (dB)
TEST RESULTS
No non-compliance noted.
Page 27
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
BW: 1.4MHz / RB=1, RB Offset=0
Band
Vertical
EIRP
EIRP
(dBm)
(W)
Horizontal
EIRP
EIRP
(dBm)
(W)
28.90
0.7762
17.41
0.0551
*29.85
0.9661
18.30
0.0676
27.58
0.5728
18.24
0.0667
BW
Channel Mode
(MHz)
UL RB
Allocation
UL RB
offset
Lowest
*29.06
0.8054
16.86
0.0485
28.40
0.6918
17.84
0.0608
Highest
27.84
0.6081
18.19
0.0659
Lowest
*29.18
0.8279
16.95
0.0495
Middle 16 QAM
29.00
0.7943
17.47
0.0558
Highest
27.81
0.6039
17.91
0.0618
BW
Channel Mode
(MHz)
UL RB
Allocation
UL RB
offset
Lowest
1.4
Middle
QPSK
Highest
BW: 3MHz / RB=1, RB Offset=0
Band
Middle
QPSK
Vertical
EIRP
EIRP
(dBm)
(W)
Horizontal
EIRP
EIRP
(dBm)
(W)
BW: 5MHz / RB=1, RB Offset=0
Band
Horizontal
EIRP
EIRP
(dBm)
(W)
UL RB
Allocation
UL RB
offset
Lowest
*28.94
0.7834
16.98
0.0499
28.87
0.7709
17.86
0.0611
Highest
27.83
0.6067
18.15
0.0653
Lowest
*29.12
0.8166
17.05
0.0507
Middle 16 QAM
29.05
0.8035
17.65
0.0582
Highest
27.97
0.6266
17.73
0.0593
Middle
Vertical
EIRP
EIRP
(dBm)
(W)
BW
Channel Mode
(MHz)
QPSK
Page 28
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / RB=1, RB Offset=0
Band
Horizontal
EIRP
EIRP
(dBm)
(W)
UL RB
Allocation
UL RB
offset
Lowest
*29.10
0.8128
17.01
0.0502
28.92
0.7798
17.31
0.0538
Highest
28.90
0.7762
15.03
0.0318
Lowest
*29.85
0.9661
16.48
0.0445
Middle 16 QAM
29.09
0.8110
14.79
0.0301
Highest
28.49
0.7063
14.71
0.0296
Middle
Vertical
EIRP
EIRP
(dBm)
(W)
BW
Channel Mode
(MHz)
10
QPSK
BW: 15MHz / RB=1, RB Offset=0
Band
Vertical
EIRP
EIRP
(dBm)
(W)
Horizontal
EIRP
EIRP
(dBm)
(W)
29.45
0.8810
16.68
0.0466
*29.76
0.9462
15.14
0.0327
Highest
28.15
0.6531
13.99
0.0251
Lowest
*29.64
0.9204
16.01
0.0399
Middle 16 QAM
29.04
0.8017
15.43
0.0349
Highest
28.34
0.6823
14.06
0.0255
BW
Channel Mode
(MHz)
UL RB
Allocation
UL RB
offset
Lowest
Middle
15
QPSK
BW: 20MHz / RB=1, RB Offset=0
Band
Horizontal
EIRP
EIRP
(dBm)
(W)
UL RB
Allocation
UL RB
offset
Lowest
*29.88
0.9727
17.09
0.0512
29.48
0.8872
15.79
0.0379
Highest
27.96
0.6252
14.45
0.0279
Lowest
*29.97
0.9931
16.19
0.0416
Middle 16 QAM
29.11
0.8147
15.76
0.0377
Highest
27.76
0.5970
14.25
0.0266
Middle
Vertical
EIRP
EIRP
(dBm)
(W)
BW
Channel Mode
(MHz)
20
QPSK
Page 29
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5
BW: 1.4MHz / RB=1, RB Offset=0
Band
Vertical
ERP
ERP
(dBm)
(W)
Horizontal
ERP
ERP
(dBm)
(W)
29.25
0.8414
25.33
0.3412
29.96
0.9908
26.12
0.4093
Highest
*30.96
1.2474
27.03
0.5047
Lowest
28.95
0.7852
25.48
0.3532
Middle 16 QAM
*29.93
0.9840
27.40
0.5495
Highest
29.93
0.9840
26.75
0.4732
BW
Channel Mode
(MHz)
UL RB
Allocation
UL RB
offset
Lowest
BW
Channel Mode
(MHz)
UL RB
Allocation
UL RB
offset
Lowest
Middle
1.4
QPSK
BW: 3MHz / RB=1, RB Offset=0
Band
Vertical
ERP
ERP
(dBm)
(W)
Horizontal
ERP
ERP
(dBm)
(W)
29.40
0.8710
25.58
0.3614
30.01
1.0023
26.53
0.4498
Highest
*30.38
1.0914
26.91
0.4909
Lowest
29.01
0.7962
25.22
0.3327
Middle 16 QAM
29.80
0.9550
27.00
0.5012
Highest
*31.07
1.2794
26.82
0.4808
Middle
QPSK
BW: 5MHz / RB=1, RB Offset=0
Band
Vertical
ERP
ERP
(dBm)
(W)
Horizontal
ERP
ERP
(dBm)
(W)
29.23
0.8375
25.62
0.3648
30.05
1.0116
26.65
0.4624
Highest
*30.32
1.0765
26.49
0.4457
Lowest
29.17
0.8260
25.04
0.3192
Middle 16 QAM
*30.75
1.1885
27.10
0.5129
Highest
30.08
1.0186
26.34
0.4305
BW
Channel Mode
(MHz)
UL RB
Allocation
UL RB
offset
Lowest
Middle
QPSK
Page 30
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / RB=1, RB Offset=0
Band
Vertical
ERP
ERP
(dBm)
(W)
Horizontal
ERP
ERP
(dBm)
(W)
29.31
0.8531
25.74
0.3750
*30.74
1.1858
27.53
0.5662
Highest
29.96
0.9908
26.34
0.4305
Lowest
28.59
0.7228
24.87
0.3069
Middle 16 QAM
*30.31
1.0740
27.68
0.5861
Highest
29.70
0.9333
26.20
0.4169
BW
Channel Mode
(MHz)
UL RB
Allocation
UL RB
offset
Lowest
Middle
10
QPSK
Page 31
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
7.3 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT
LIMIT
According to FCC §2.1055, FCC §22.355, .FCC §24.235.
Frequency Tolerance: +/- 2.5ppm
According to RSS-132 section 5.3 ,
The carrier frequency shall not depart from the reference frequency, in excess of ±2.5
ppm for mobile stations and ±1.0 ppm for base stations.
In lieu of meeting the above stability values, the test report may show that the frequency
stability is sufficient to ensure that the emission bandwidth stays within the operating
frequency block when tested to the temperature and supply voltage variations specified
in RSS-Gen.
According to RSS -133 section 6.3
The carrier frequency shall not depart from the reference frequency in excess of ±2.5
ppm for mobile stations and ±1.5 ppm for base stations.
In lieu of meeting the above stability values, the test report may show that the frequency
stability is sufficient to ensure that the occupied bandwidth stays within each of the
sub-bands (see Section 5.1) when tested to the temperature and supply voltage
variations specified in RSS-Gen.
Test Procedure
Use Anritsu 8820 with frequency Error measurement capability.
Temp = -30 to +50℃
Voltage= 85% to 115% of the nominal value for AC powered equipment.
NOTE: The frequency error was recorded frequency error from the communication simulator.
TEST RESULTS
No non-compliance noted.
Page 32
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
Test Results
FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT:
LTE Band 2 / QPSK
Reference Frequency: LTE Band 2, 1880 MHz at 20(°C)
Limit:
2.5 ppm = 4700Hz
BW: 10M
Power Supply
Environment
(Vac)
Temperature (°C)
120
50
-0.02
-0.0000093
120
40
-0.03
-0.0000151
120
30
-0.01
-0.0000074
120
20
-0.02
-0.0000094
120
10
-0.02
-0.0000099
120
-0.03
-0.0000156
120
-10
0.01
0.0000054
120
-20
0.01
0.0000079
120
50
-0.02
-0.0000093
Frequency
Frequency Error
Limit
(ppm)
(ppm)
Error(Hz)
+/- 2.5
LTE Band 2 / 16QAM
Reference Frequency: LTE Band 2, 1880 MHz at 20(°C)
Limit:
2.5 ppm = 4700Hz
BW: 10M
Power Supply
Environment
(Vac)
Temperature (°C)
120
50
-0.01
-0.0000055
120
40
0.01
0.0000038
120
30
-0.01
-0.0000054
120
20
-0.02
-0.0000101
120
10
0.01
0.0000076
120
-0.01
-0.0000079
120
-10
0.01
0.0000064
120
-20
0.00
0.0000020
120
50
-0.01
-0.0000055
Frequency
Error(Hz)
Page 33
Frequency Error
Limit
(ppm)
(ppm)
+/- 2.5
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5 / QPSK
Reference Frequency: LTE Band 5, 836.5 MHz at 20(°C)
Limit:
2.5 ppm = 2091.25Hz
BW: 10M
Power Supply
Environment
(Vac)
Temperature (°C)
120
50
0.01
0.0000063
120
40
0.00
-0.0000044
120
30
0.01
0.0000067
120
20
0.00
0.0000057
120
10
0.00
0.0000047
120
0.01
0.0000103
120
-10
0.01
0.0000075
120
-20
0.02
0.0000236
120
50
0.01
0.0000063
Frequency
Frequency Error
Limit
(ppm)
(ppm)
Error(Hz)
+/- 2.5
LTE Band 5 / 16QAM
Reference Frequency: LTE Band 5, 836.5 MHz at 20(°C)
Limit:
2.5 ppm = 2091.25Hz
BW: 10M
Power Supply
Environment
(Vac)
Temperature (°C)
120
50
0.01
0.0000108
120
40
-0.02
-0.0000233
120
30
-0.01
-0.0000067
120
20
-0.01
-0.0000102
120
10
0.01
0.0000097
120
0.01
0.0000100
120
-10
0.01
0.0000127
120
-20
0.01
0.0000098
120
50
0.01
0.0000108
Frequency
Error(Hz)
Page 34
Frequency Error
Limit
(ppm)
(ppm)
+/- 2.5
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT:
LTE Band 2 / QPSK
Reference Frequency: LTE Band 2, 1880 MHz at 20(°C)
Limit:
Power Supply
Environment
(Vac)
Temperature (°C)
102
20
120
138
2.5 ppm = 2091.25Hz
BW: 20M
Frequency
Frequency Error
Limit
(ppm)
(ppm)
Error(Hz)
-0.01
-0.0000050
-0.02
-0.0000094
-0.02
-0.0000090
+/- 2.5
LTE Band 2 / 16QAM
Reference Frequency: LTE Band 2, 1880 MHz at 20(°C)
Limit:
Power Supply
Environment
(Vac)
Temperature (°C)
102
120
138
20
2.5 ppm = 2091.25Hz
BW: 20M
Frequency
Error(Hz)
Frequency Error
Limit
(ppm)
(ppm)
-0.01
-0.0000051
-0.02
-0.0000101
0.01
0.0000063
Page 35
+/- 2.5
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5 / QPSK
Reference Frequency: LTE Band 5, 836.5 MHz at 20(°C)
Limit:
Power Supply
Environment
(Vac)
Temperature (°C)
102
20
120
138
2.5 ppm = 2091.25Hz
BW: 10M
Frequency
Frequency Error
Limit
(ppm)
(ppm)
Error(Hz)
0.00
0.0000044
0.00
0.0000057
0.01
0.0000075
+/- 2.5
LTE Band 5 / 16QAM
Reference Frequency: LTE Band 5, 836.5 MHz at 20(°C)
Limit:
Power Supply
Environment
(Vac)
Temperature (°C)
102
120
138
20
2.5 ppm = 2091.25Hz
BW: 10M
Frequency
Error(Hz)
Frequency Error
Limit
(ppm)
(ppm)
-0.01
-0.0000075
-0.01
-0.0000102
0.01
0.0000077
Page 36
+/- 2.5
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
7.4 OCCUPIED BANDWIDTH MEASUREMENT
Limits
For Reporting purposes only.
TEST PROCEDURES
KDB 971168 D01 v02r02 - Section 4.2
1. The occupied bandwidth was measured with the spectrum analyzer at the lowest,
middle and highest channels in each band and different modulation. The 99% and
-26dB bandwidth was measured and recorded.
2. RBW = 1-5% of the expected OBW
3. VBW ≥ 3 x RBW
4. Detector = Peak
5. Trace mode = max. hold
Page 37
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
Band
BW
(MHz)
1.4
10
15
20
UL RB
UL RB
Allocation
offset
QPSK
1.0984
1.3111
Middle
16QAM
1.1027
1.3111
Middle
QPSK
15
2.6830
2.9566
Middle
16QAM
15
2.6830
2.9914
Middle
QPSK
25
4.4717
4.9720
Middle
16QAM
25
4.4862
4.9570
Middle
QPSK
50
8.9435
9.8190
Middle
16QAM
50
8.9146
9.6450
Middle
QPSK
75
13.4153
14.6820
Middle
16QAM
75
13.4153
14.8990
Middle
QPSK
100
18.0028
20.0510
Middle
16QAM
100
18.0028
19.9930
Channel
Mode
UL RB
UL RB
Allocation
offset
Middle
QPSK
1.0984
1.3242
Middle
16QAM
1.0984
1.3155
Middle
QPSK
15
2.6830
2.9725
Middle
16QAM
15
2.6743
2.9812
Middle
QPSK
25
4.4717
4.9930
Middle
16QAM
25
4.4717
4.9780
Middle
QPSK
50
8.9435
9.6960
Middle
16QAM
50
8.9146
9.6670
Channel
Mode
Middle
OBW(99%)(MHz)
26 dB
Bandwidth(MHz)
LTE Band 5
Band
BW
(MHz)
1.4
10
Page 38
OBW(99%)(MHz)
26 dB
Bandwidth(MHz)
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
BW: 1.4MHz / QPSK / RB =6, RB Offset = 0
CH Mid
BW: 1.4MHz / 16QAM / RB =6, RB Offset = 0
CH Mid
Page 39
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / QPSK / RB =15, RB Offset = 0
CH Mid
BW: 3MHz / 16QAM / RB =15, RB Offset = 0
CH Mid
Page 40
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / QPSK / RB =25, RB Offset = 0
CH Mid
BW: 5MHz / 16QAM / RB =25, RB Offset = 0
CH Mid
Page 41
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / QPSK / RB =50, RB Offset = 0
CH Mid
BW: 10MHz / 16QAM / RB =50, RB Offset = 0
CH Mid
Page 42
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 15MHz / QPSK / RB =75, RB Offset = 0
CH Mid
BW: 15MHz / 16QAM / RB =75, RB Offset = 0
CH Mid
Page 43
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 20MHz / QPSK / RB =100, RB Offset = 0
CH Mid
BW: 20MHz / 16QAM / RB =100, RB Offset = 0
CH Mid
Page 44
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5
BW: 1.4MHz / QPSK / RB =6, RB Offset = 0
CH Mid
BW: 1.4MHz / 16QAM / RB =6, RB Offset = 0
CH Mid
Page 45
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / QPSK / RB =15, RB Offset = 0
CH Mid
BW: 3MHz / 16QAM / RB =15, RB Offset = 0
CH Mid
Page 46
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / QPSK / RB =25, RB Offset = 0
CH Mid
BW: 5MHz / 16QAM / RB =25, RB Offset = 0
CH Mid
Page 47
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / QPSK / RB =50, RB Offset = 0
CH Mid
BW: 10MHz / 16QAM / RB =50, RB Offset = 0
CH Mid
Page 48
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
7.5
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
PEAK TO AVERAGE POWER RATIO
Limit
In measuring transmissions in this band using an average power technique, the peak to
average power ratio (PAPR) of the transmission may not exceed 13 dB.
Test Procedures
1. According to KDB 971168 D01, section 5.7.1
2. The EUT was connect to spectrum analyzer and call box.
3. Set the CCDF function in spectrum analyzer.
4. The highest RF output power were measured and recorded the maximum PAPR level
associated with a probability of 0.1%.
5. Record the Peak to Average Power Ratio.
Page 49
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 2
BW: 1.4MHz / QPSK / RB =1, RB Offset = 0
CH Mid
BW: 1.4MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 50
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / QPSK / RB =1, RB Offset = 0
CH Mid
BW: 3MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 51
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / QPSK / RB =1, RB Offset = 0
CH Mid
BW: 5MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 52
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / QPSK /RB =1, RB Offset = 0
CH Mid
BW: 10MHz / 16QAM /RB =1, RB Offset = 0
CH Mid
Page 53
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 15MHz / QPSK /RB =1, RB Offset = 0
CH Mid
BW: 15MHz / 16QAM /RB =1, RB Offset = 0
CH Mid
Page 54
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 20MHz / QPSK / 16QAM /RB =1, RB Offset = 0
CH Mid
BW: 20MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 55
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5
BW: 1.4MHz / QPSK / RB =1, RB Offset = 0
CH Mid
BW: 1.4MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 56
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / QPSK / RB =1, RB Offset = 0
CH Mid
BW: 3MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 57
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / QPSK / RB =1, RB Offset = 0
CH Mid
BW: 5MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 58
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / QPSK / RB =1, RB Offset = 0
CH Mid
BW: 10MHz / 16QAM / RB =1, RB Offset = 0
CH Mid
Page 59
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
7.6
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
CONDUCTED BAND EDGE MEASUREMENT
Limit
FCC §22.917(a), Band 5
For operations in the 824-849 MHz band ,Out of band emissions. The power of any
emission outside of the authorized operating frequency ranges must be attenuated
below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB.
FCC §24.238(a), Band 2
For operations in the 1850-1910 and 1930-1950 MHz band , Out of band emissions. The
power of any emission outside of the authorized operating frequency ranges must be
attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB.
RSS-132 section 5.5 and RSS-133 section 6.5
In the first 1.0 MHz band immediately outside and adjacent to each of the sub-bands
specified in Section 5.1, the power of emissions per any 1% of the occupied bandwidth shall
be attenuated (in dB) below the transmitter output power P (dBW) by at least 43 + 10 log10
p (watts).
Test Procedures
KDB 971168 D01 v02r02 - Section 6.0
1. RBW ≥ 1% of the emission bandwidth
2. VBW ≥ 3 x RBW
3. Span was set large enough so as to capture all out of emissions near the band edge.
Page 60
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
Test Results:
LTE Band 2
BW: 1.4MHz / QPSK / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 61
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 1.4MHz / QPSK / RB= 6, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 62
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / QPSK / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 63
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / QPSK / RB=15, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 64
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / QPSK / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 65
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / QPSK / RB=25, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 66
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / QPSK / RB=1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 67
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / QPSK / RB=50, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 68
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 15MHz / QPSK / RB=1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 69
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 15MHz / QPSK / RB=75, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 70
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 20MHz / QPSK / RB=1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 71
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 20MHz / QPSK / RB=100, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 72
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 1.4MHz / 16QAM / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 73
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 1.4MHz / 16QAM / RB= 6, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 74
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / 16QAM / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 75
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / 16QAM / RB= 15, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 76
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / 16QAM / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 77
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / 16QAM/ RB=25, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 78
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / 16QAM / RB=1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 79
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / 16QAM / RB=50, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 80
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 15MHz / 16QAM / RB=1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 81
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 15MHz / 16QAM / RB=75, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 82
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 20MHz / 16QAM/ RB=1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 83
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 20MHz / 16QAM / RB=100, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 84
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
LTE Band 5
BW: 1.4MHz / QPSK / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 85
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW:1.4MHz / QPSK / RB= 6, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 86
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / QPSK / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 87
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW:3MHz / QPSK / RB= 15, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 88
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / QPSK / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 89
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW:5MHz / QPSK / RB= 25, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 90
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / QPSK / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 91
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW:10MHz / QPSK / RB= 50, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 92
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 1.4MHz / 16QAM / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 93
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
BW:1.4MHz / 16QAM
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
/ RB= 6, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 94
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 3MHz / 16QAM / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 95
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW:3MHz / 16QAM / RB= 15, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 96
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 5MHz / 16QAM / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 97
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW:5MHz / 16QAM / RB= 25, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 98
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW: 10MHz / 16QAM / RB= 1, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 99
Rev.01
Compliance Certification Services Inc.
FCC ID: SIB-ICG100NAR-2
ISED No.:6719D-ICG100NAR
Report No.: T170113D05-RP3
BW:10MHz / 16QAM / RB= 50, RB Offset = 0
LOWER BAND EDGE
HIGHER BAND EDGE
Page 100
Rev.01
Download: ICG100NAR-2 4GR Test Report LTE Foxconn International Inc
Mirror Download [FCC.gov]ICG100NAR-2 4GR Test Report LTE Foxconn International Inc
Document ID3427537
Application IDRWqyiDqUtQy58CLiodiFuA==
Document DescriptionTest Report LTE
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize480.31kB (6003891 bits)
Date Submitted2017-06-15 00:00:00
Date Available2017-06-15 00:00:00
Creation Date2017-06-07 20:52:02
Producing SoftwareAcrobat Distiller 8.0.0 (Windows)
Document Lastmod2017-06-07 20:52:49
Document TitleTest Report LTE
Document CreatorPScript5.dll Version 5.2
Document Author: user

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : Yes
Encryption                      : Standard V2.3 (128-bit)
User Access                     : Print, Extract
XMP Toolkit                     : Adobe XMP Core 4.0-c316 44.253921, Sun Oct 01 2006 17:14:39
Modify Date                     : 2017:06:07 20:52:49+08:00
Create Date                     : 2017:06:07 20:52:02+08:00
Metadata Date                   : 2017:06:07 20:52:49+08:00
Creator Tool                    : PScript5.dll Version 5.2
Format                          : application/pdf
Title                           : Microsoft Word - T170113D05-RP3 Part 22H & 24E+RSS 132 & 133 (LTE Band 2 & Band 5) Revised 0607
Creator                         : user
Document ID                     : uuid:6e9c1b42-9d17-402e-82b5-47ea5a6de82b
Instance ID                     : uuid:c9764d9a-1d9c-400a-9982-a1752fcd0a86
Producer                        : Acrobat Distiller 8.0.0 (Windows)
Has XFA                         : No
Page Count                      : 100
Author                          : user
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2017
