HP8131A XBOX 2.4G RF WIRELESS CONTROLLER... - FCC ID SIWHP8131A

FCC ID SIWHP8131A

INTERNAL PHOTOS 2

XBOX 2.4G RF WIRELESS CONTROLLER

by E-Core Technology (China) Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDSIWHP8131A
Document ID487221
Document TypeInternal Photos

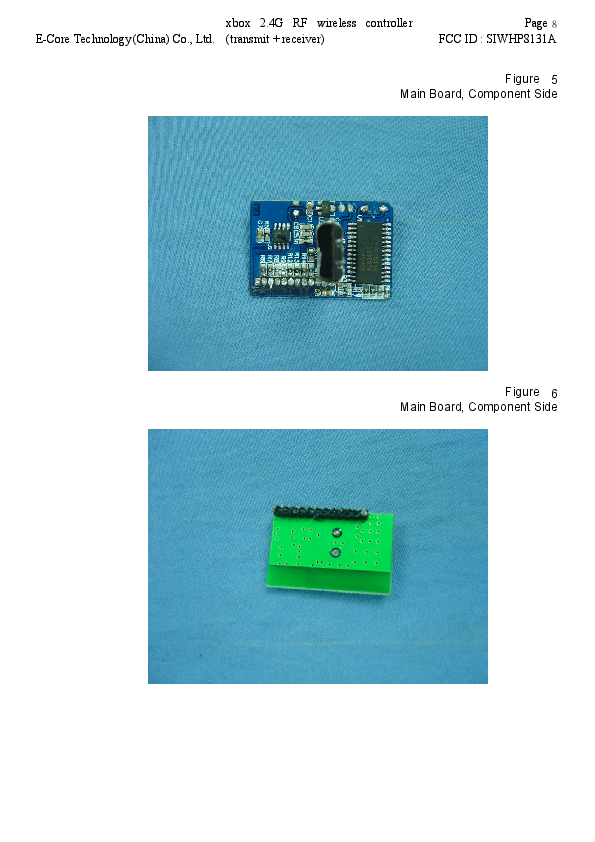

DescriptionINTERNAL PHOTOS 2
Document TitleID³ø§iF04332_F0430_
ApplicantE-Core Technology (China) Co., Ltd.
Equipment ClassXBOX 2.4G RF WIRELESS CONTROLLER
Product CodeHP8131A
Application IDUrir/rG/6cqq53W9yD/5Ow==
Application PurposeOriginal Equipment
Application Date2004-11-10
Frequency Range2402-2480 MHz
FRNsiwhi6318
Test FirmAudix Technology (Shenzhen) Co., Ltd.
Certified ByWEN DING ZHANG ASSETS MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-11-10
Available2004-11-10
Created2004-11-10
Modified2004-11-10
Pages1
File TypeAdobe Acrobat PDF
File Size2108875
File SHA-2568edfb9fd2cb2555a3653dd964e95e275c6d33db1f43a429566a7857f133c2f13
PDF Metadata Authorwuyanli
PDF Metadata ProducerADOBEPS4.DRV Version 4.31 Acrobat Distiller 4.05 for Windows
FCC.gov SourcesFCC.gov 487221
