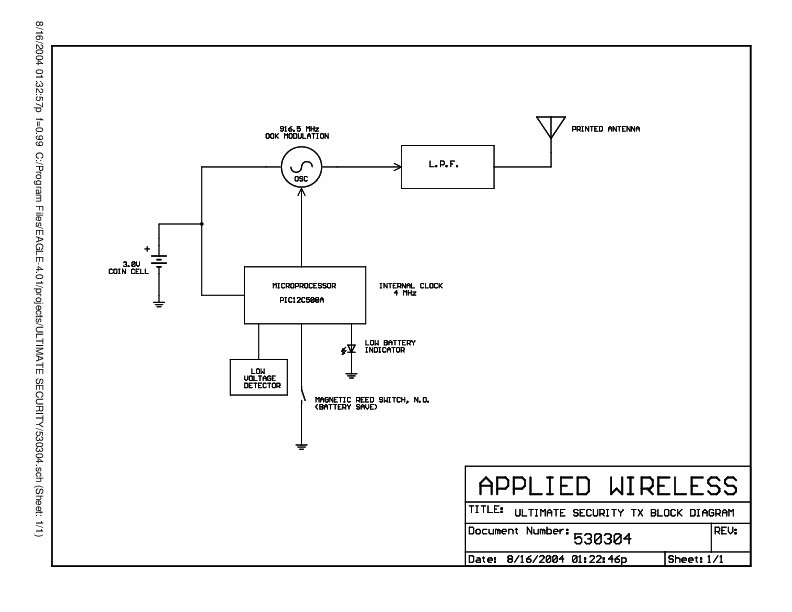

204061110011 RFID Tag Block Diagram - FCC ID SJ5204061110011

FCC ID SJ5204061110011

Block Diagram

RFID Tag

by Ultimate Security Systems Corp.

Document preview loads when visible.

Document Details

FCC IDSJ5204061110011
Document ID507566
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title530304.sch
ApplicantUltimate Security Systems Corp.
Equipment ClassRFID Tag
Product Code204061110011
Application IDFWAomiHlyWzO49Kiq4MAMw==
Application PurposeOriginal Equipment
Application Date2005-01-19
Frequency Range916.27 MHz
FRN0011397130
Test FirmCompatible Electronics
Certified ByRuby Hall Lab Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-01-19
Available2005-01-19
Created2004-08-16
Modified2005-01-14
Pages1
File TypeAdobe Acrobat PDF
File Size54661
File SHA-256d540b00910c751bc2caba4b13a15ad71dc8cb4065fd11484c79d10b757a87b76
PDF Metadata ProducerAcrobat Distiller 6.0.1 (Windows)
FCC.gov SourcesFCC.gov 507566
