WSCRATA Autoscript WSC-RAT-A Block Diagram - FCC ID SK7WSC-RAT-A

FCC ID SK7WSC-RAT-A

Block Diagram System

Autoscript WSC-RAT-A

by Autoscript Ltd

Document preview loads when visible.

Document Details

FCC IDSK7WSC-RAT-A
Document ID1967012
Document TypeBlock Diagram

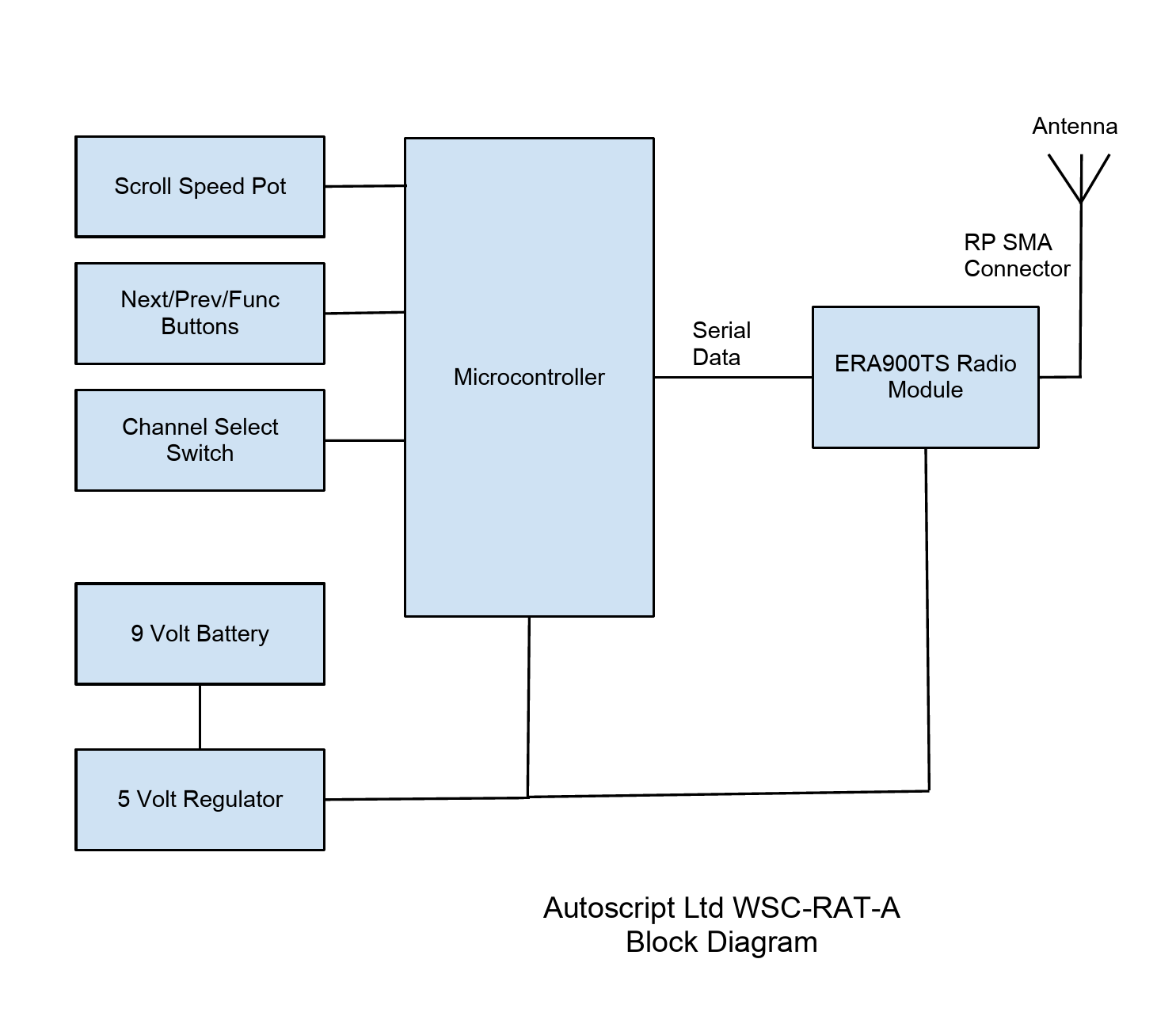

DescriptionBlock Diagram System
Document TitleNone
ApplicantAutoscript Ltd
Equipment ClassAutoscript WSC-RAT-A
Product CodeWSCRATA
Application IDyUM0tQzqcfPpY3bGm0fg7Q==
Application PurposeOriginal Equipment
Application Date2013-05-17
Frequency Range902.363-902.688 MHz
FRN0022540652
Test FirmHursley EMC Services Ltd.
Certified ByAndrew Yandell Financial Controller
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2013-05-17
Available2013-05-17
Created2013-05-17
Modified2013-05-17
Pages1
File TypeAdobe Acrobat PDF
File Size28702
File SHA-256b27d119bb94bdbf2b21a0e8041e2ffbb448025ea18b889ff216f2a1ff47e3b22
PDF Metadata AuthorNone
PDF Metadata CreatorGoogle
PDF Metadata ProducerNone
FCC.gov SourcesFCC.gov 1967012
