24T24R27 R/C Snake Giant Anaconda Schematics - FCC ID SLU24T24R27

FCC ID SLU24T24R27

Circuit Diagram

R/C Snake Giant Anaconda

by Maison Battat Inc.

Document preview loads when visible.

Document Details

FCC IDSLU24T24R27
Document ID8311332
Document TypeSchematics

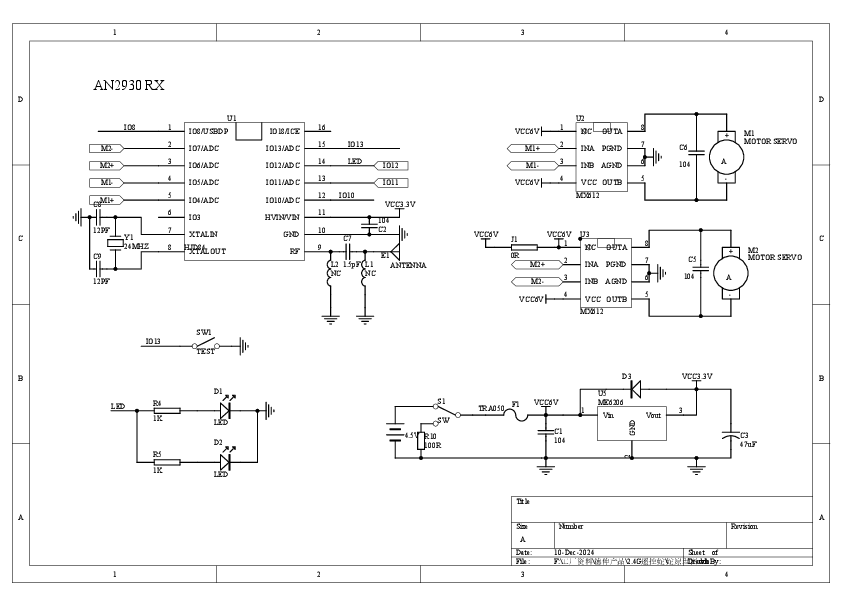

DescriptionCircuit Diagram
Document TitleProtel Schematic
ApplicantMaison Battat Inc.
Equipment ClassR/C Snake Giant Anaconda
Product Code24T24R27
Application IDyrM3FYNiRRfyf/mqcnaCEg==
Application PurposeOriginal Equipment
Application Date2025-05-21
Frequency Range2405-2475 MHz
FRN0022561245
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByHerbert Wong Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2025-05-21
Available2025-05-21
Created2024-12-10
Modified2025-05-19
Pages1
File TypeAdobe Acrobat PDF
File Size91145
File SHA-256cda2351fd0a4dd307de0a4ced6c7af8d4c5286bdfc7b088a6935e6be4a67a32e
PDF Metadata Authoradmin
PDF Metadata Produceradmin Acrobat Distiller 15.0 (Windows)
FCC.gov SourcesFCC.gov 8311332
