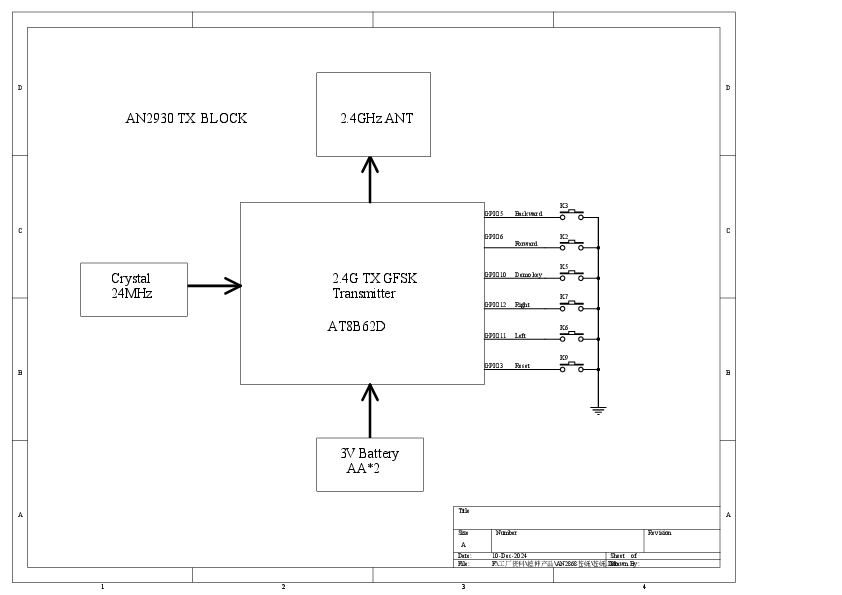

24T24T27 R/C Snake Giant Anaconda Block Diagram - FCC ID SLU24T24T27

FCC ID SLU24T24T27

Block Diagram

R/C Snake Giant Anaconda

by Maison Battat Inc.

Document preview loads when visible.

Document Details

FCC IDSLU24T24T27
Document ID8311161
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleProtel Schematic
ApplicantMaison Battat Inc.
Equipment ClassR/C Snake Giant Anaconda
Product Code24T24T27
Application IDNPv1tXuQJTNuIkDIjba17Q==
Application PurposeOriginal Equipment
Application Date2025-05-21
Frequency Range2405-2475 MHz
FRN0022561245
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByHerbert Wong Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2025-05-21
Available2025-05-21
Created2024-12-10
Modified2025-04-03
Pages1
File TypeAdobe Acrobat PDF
File Size111110
File SHA-25617235819b8cd3e7e64cfe49e9d0e9e72dee87cdd416bdcc8e2f8e617c30606eb
PDF Metadata Authoradmin
PDF Metadata ProducerAcrobat Distiller 15.0 (Windows) admin
FCC.gov SourcesFCC.gov 8311161
