RC09038C Remote Control Toy Transmitter... - FCC ID SM3RC09038C

FCC ID SM3RC09038C

Block diagram

Remote Control Toy Transmitter

by 21st Century Toys, Inc.

Document preview loads when visible.

Document Details

FCC IDSM3RC09038C
Document ID511202
Document TypeBlock Diagram
DescriptionBlock diagram

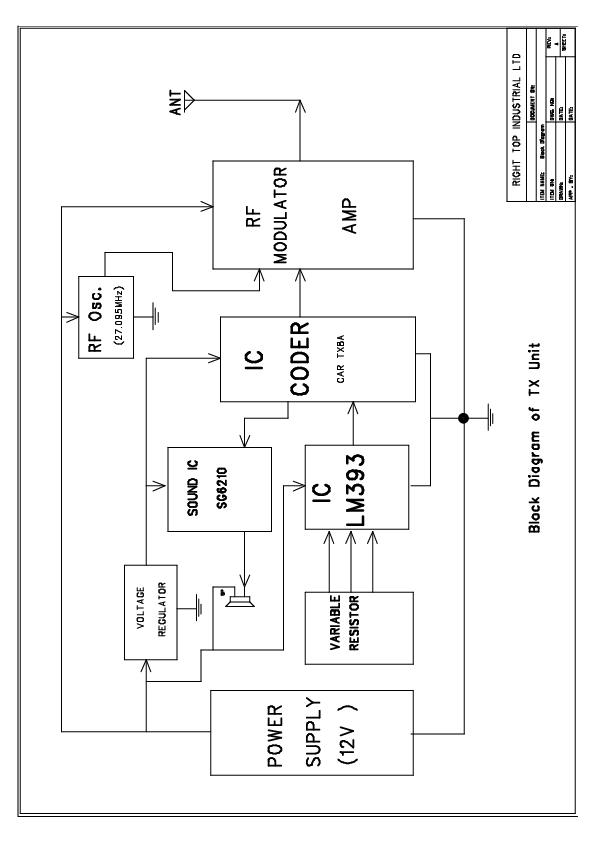

Document TitleCAM output
Applicant21st Century Toys, Inc.
Equipment ClassRemote Control Toy Transmitter
Product CodeRC09038C
Application IDlH2FCyRMfo7Sp46gCXyYLQ==
Application PurposeOriginal Equipment
Application Date2005-02-01
Frequency Range27.095 MHz
FRN0011806882
Test FirmHong Kong Standards & Testing Cen.
Certified ByPatrick Wong Sr. Manager (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-02-01
Available2005-02-01
Created2005-01-11
Modified2005-01-11
Pages1
File TypeAdobe Acrobat PDF
File Size13092
File SHA-2561bca79db4f0017e6462a0f4a6b79f27c1bda87ecf0cde0c8dc8018c9cdb05ed8
PDF Metadata Authorjiang
PDF Metadata ProducerD:\Documents and Settings\zhan\Local Settings\Temporary Internet Files\Content.IE5\GL052F8T\BLOCK DIAGRAM OF TX UNIT.sch - PowerLogic Acrobat PDFWriter 5.0Windows NT ª©
FCC.gov SourcesFCC.gov 511202
