RC09038D Remote Control Toy Transmitter... - FCC ID SM3RC09038D

FCC ID SM3RC09038D

Block diagram

Remote Control Toy Transmitter

by 21st Century Toys, Inc.

Document preview loads when visible.

Document Details

FCC IDSM3RC09038D
Document ID511220
Document TypeBlock Diagram

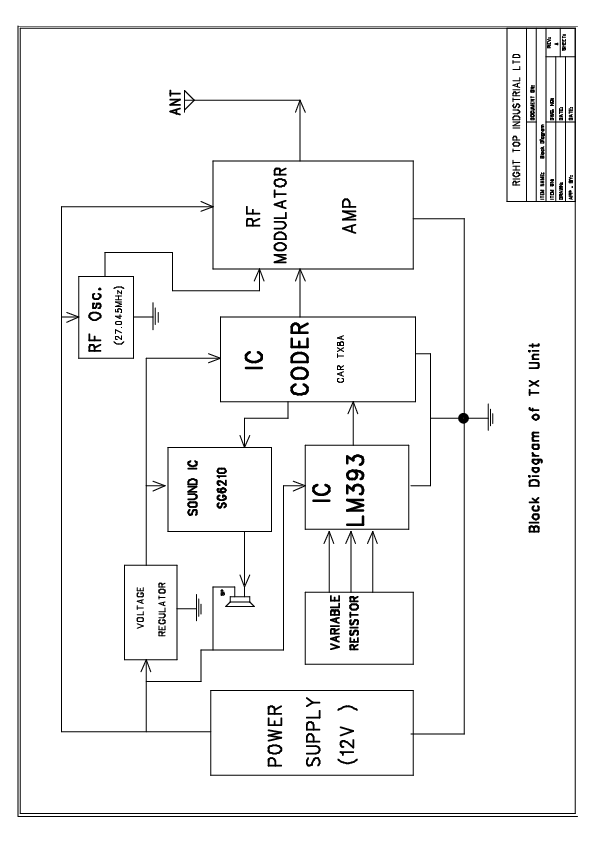

DescriptionBlock diagram
Document TitleCAM output
Applicant21st Century Toys, Inc.
Equipment ClassRemote Control Toy Transmitter
Product CodeRC09038D
Application IDQJooNkZLoYidO6NvFqgwOw==
Application PurposeOriginal Equipment
Application Date2005-02-01
Frequency Range27.045 MHz
FRN0011806882
Test FirmHong Kong Standards and Testing Centre
Certified ByPatrick Wong Sr. Manager (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-02-01
Available2005-02-01
Created2005-01-11
Modified2005-01-11
Pages1
File TypeAdobe Acrobat PDF
File Size13005
File SHA-256441056e782f35e4c48097d6093e61d122a0ef2a0dcbc8512eafc40c00390f0a2
PDF Metadata Authorjiang
PDF Metadata ProducerD:\Documents and Settings\zhan\Local Settings\Temporary Internet Files\Content.IE5\GL052F8T\BLOCK DIAGRAM OF TX UNIT.sch - PowerLogic Acrobat PDFWriter 5.0Windows NT ª©
FCC.gov SourcesFCC.gov 511220
