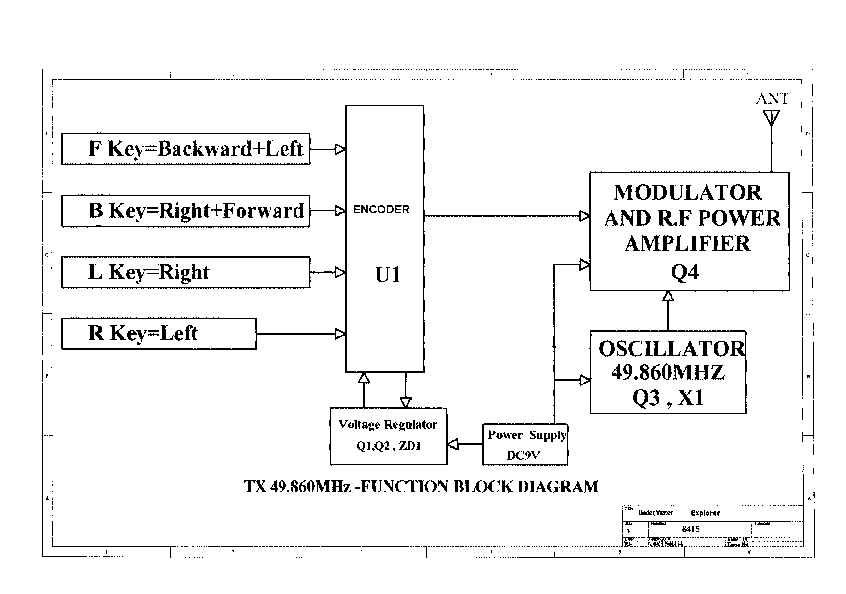

8415T49 RC Toy Block Diagram - FCC ID SML-8415-T49

FCC ID SML-8415-T49

Block Diagram

RC Toy

by Prime Time Toys Ltd.

Document preview loads when visible.

Document Details

FCC IDSML-8415-T49
Document ID486747
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantPrime Time Toys Ltd.
Equipment ClassRC Toy
Product Code8415T49
Application ID5XpQDaUOKkQyxjvNJWG/qQ==
Application PurposeOriginal Equipment
Application Date2004-11-09
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-11-09
Available2004-11-09
Created2004-11-04
Modified2004-11-04
Pages1
File TypeAdobe Acrobat PDF
File Size60777
File SHA-2565a01eae8bd7b00b8d2a38eea919a8d1e593ce8280abcb3ad5e516f738dcb0ef1
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 486747
