FCC ID SQT-RAY2-24
ISM Transmitter
by Racom
Grantee Code: SQT Product Code: RAY224
Latest application date: 2016-03-29
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 24000-24250 MHz | Original Equipment | 2016-03-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-03-29 | PDF 4.4 MB |
| Internal Photos | Internal Photos | 2016-03-29 | PDF 3 MB |
| External Photos | External Photos | 2016-03-29 | PDF 327.6 KB |
| Label | ID Label/Location Info | 2016-03-29 | PDF 78.2 KB |
| Label Location | ID Label/Location Info | 2016-03-29 | PDF 77.9 KB |
| Operating Description | Operational Description | 2016-03-29 | PDF 9.3 KB |

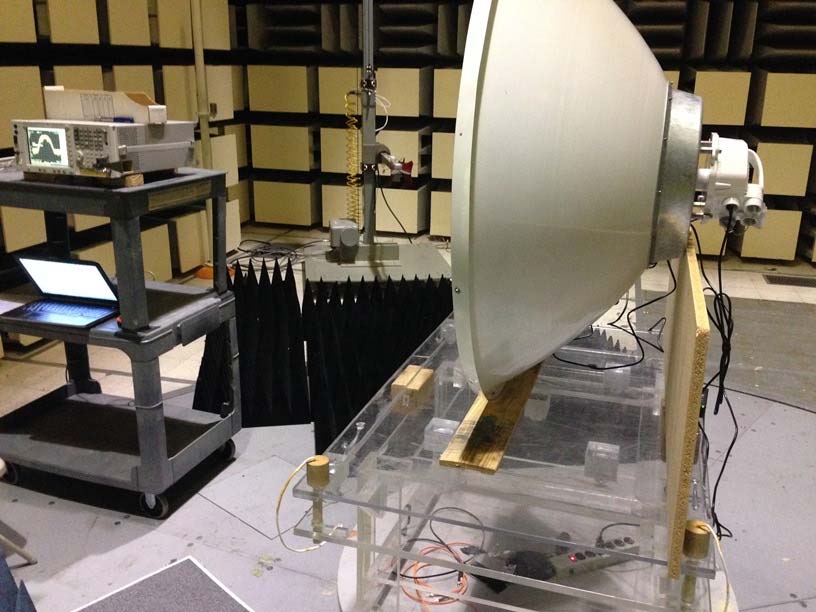

| Test Setup Photos | Test Setup Photos | 2016-03-29 | PDF 956.4 KB |
| Test Report | Test Report | 2016-03-29 | PDF 2.2 MB |
| Agents Letter | Cover Letter(s) | 2016-03-29 | PDF 114 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-29 | PDF 163 KB |
| Cover Letter | Cover Letter(s) | 2016-03-29 | PDF 141.6 KB |
| RF Exposure Report | RF Exposure Info | 2016-03-29 | PDF 65.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 69.5 KB | |
| Schematics Metadata only | Schematics | PDF 1 MB | |
| Schematics II Metadata only | Schematics | PDF 25.1 KB | |
| Schematics III Metadata only | Schematics | PDF 312.4 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 37.4 KB |
Application Information
| Application ID | ddrvl4dPy0YlqrZnRpQB6Q== |
|---|---|
| Final Action Date | 2016-03-29 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0012191276 |
| Model | RAY2-24 |
| Frequency Range | 24000-24250 MHz |
| Equipment Class | DXX - Part 15 Low Power Communication Device Transmitter |
| Device Description | ISM Transmitter |
| Responsible Party | Jiri Hruska, Programme Manager, hruska@racom.cz  , 420566618035 |
| Test Firm | Larry Finn, Professional Testing (EMI), Inc., lfinn@ptitest.com  , 512-244-3371 |
| TCB Email | VKerai@tuvam.com  |
| TCB Scope | A2: Low Power Transmitters (except Spread Spectrum) and radar detectors operating above 1 GHz |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is EIRP. The antenna(s) for this device must provide a minimum separation distance of at least 1.91m from all persons during normal operation for general population exposure for typical 10dBm antenna or at least 0.85m from all persons during normal operation for occupational population exposure for typical 10dBm antenna. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
