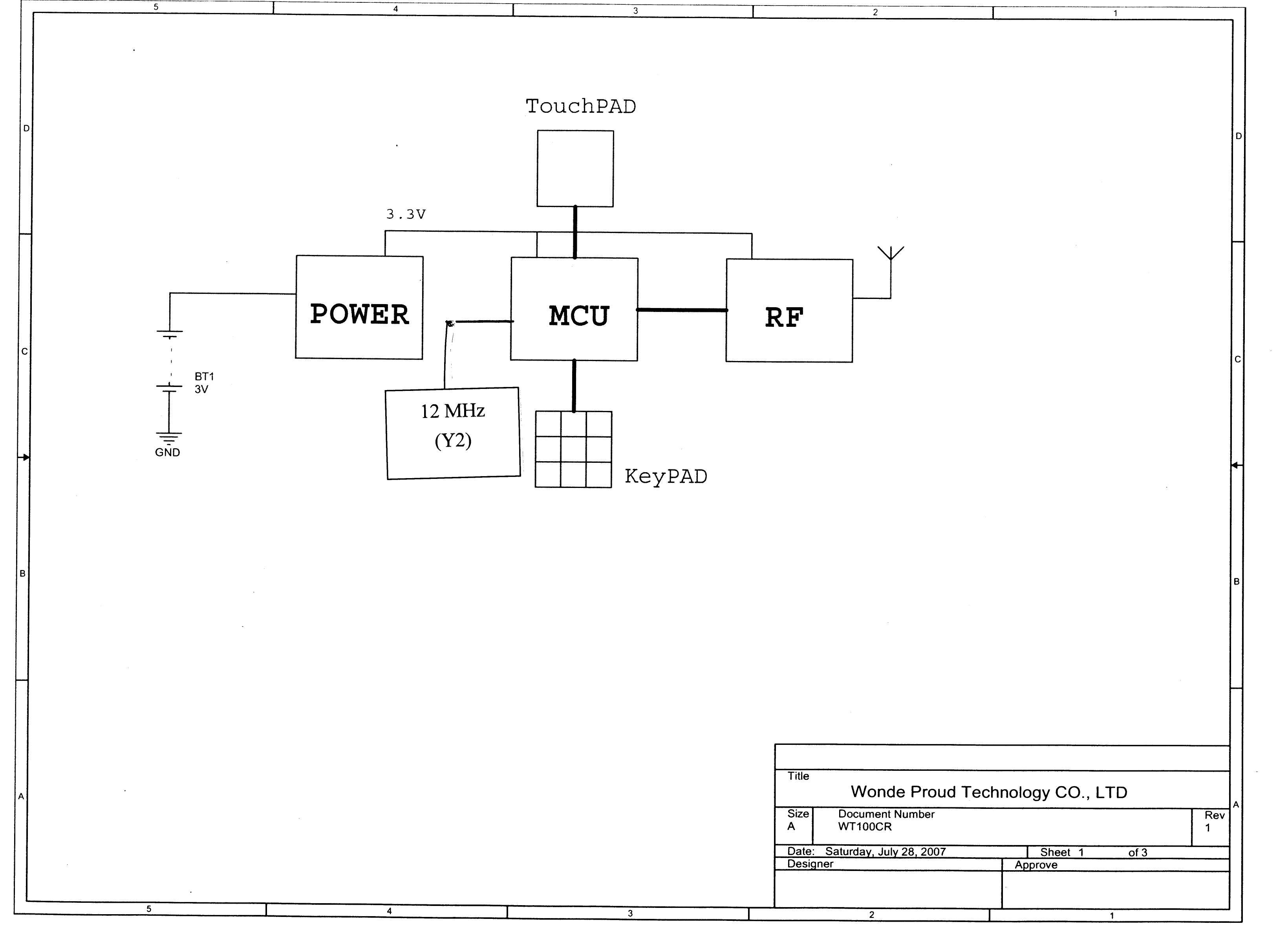

WT100CR WIRELESS REMOTE CONTROL Block Diagram - FCC ID SRKWT100CR

FCC ID SRKWT100CR

BLOCK DIAGRAM

WIRELESS REMOTE CONTROL

by Wonde Proud Technology Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDSRKWT100CR
Document ID844335
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleNone
ApplicantWonde Proud Technology Co., Ltd.
Equipment ClassWIRELESS REMOTE CONTROL
Product CodeWT100CR
Application IDVieJ44rG93kuPxYuOZW5Aw==
Application PurposeOriginal Equipment
Application Date2007-09-18
Frequency Range2401-2480 MHz
FRN0012241402
Test FirmPEP Testing Laboratory
Certified ByMARCO LIN FIRWARE ENGINEER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-09-18
Available2007-09-18
Created2007-09-04
Modified2007-09-04
Pages1
File TypeAdobe Acrobat PDF
File Size42921
File SHA-256f5919a70f9dbca3fed66a7dc4905b4feb4e314dd95246d708f79d99d7aa9fb46
PDF Metadata AuthorNone
PDF Metadata CreatorAcrobat 5.0 Image Conversion Plug-in for Windows
PDF Metadata ProducerAcrobat 5.0 Image Conversion Plug-in for Windows
FCC.gov SourcesFCC.gov 844335
