FCC ID SS3-RM101604
RONIN-MX
by SZ DJI TECHNOLOGY CO., LTD
Grantee Code: SS3 Product Code: RM101604
Latest application date: 2016-05-06
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-05-06 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-05-06 | PDF 3.6 MB |

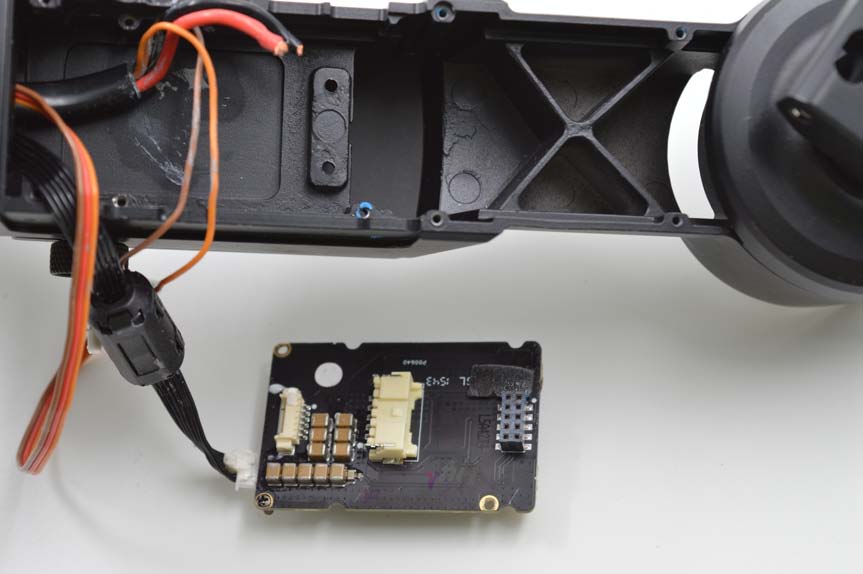

| Internal Photos | Internal Photos | 2016-05-06 | PDF 1.1 MB |
| Internal Photos.rev | Internal Photos | 2016-05-06 | PDF 1.4 MB |

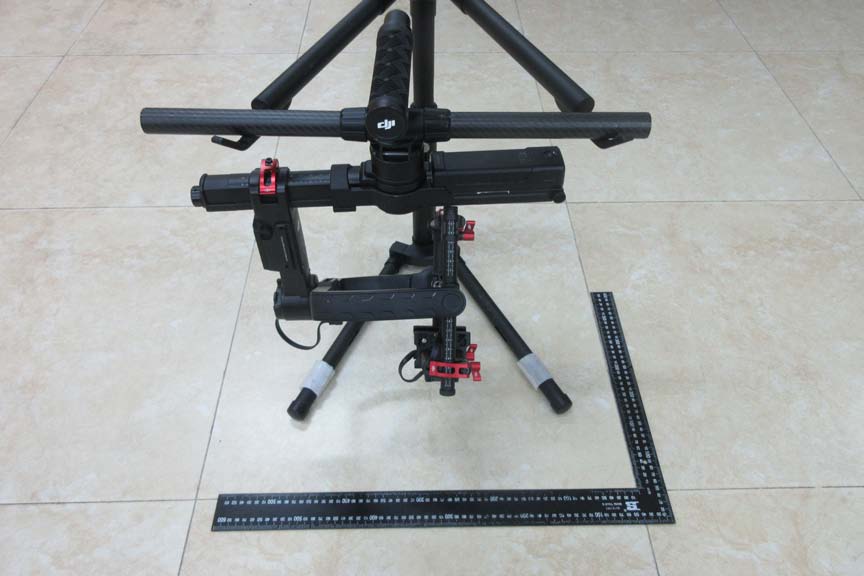

| External Photos | External Photos | 2016-05-06 | PDF 448.6 KB |
| Test Setup Photo | Test Setup Photos | 2016-05-06 | PDF 188.5 KB |
| Test Setup Photos | Test Setup Photos | 2016-05-06 | PDF 306.1 KB |
| Label Info | ID Label/Location Info | 2016-05-06 | PDF 169.3 KB |
| Test Setup Photos.rev | Test Setup Photos | 2016-05-06 | PDF 307.7 KB |
| Test Setup Photos.rev | Test Setup Photos | 2016-05-06 | PDF 192.3 KB |
| Test Report | Test Report | 2016-05-06 | PDF 1.6 MB |
| Test Report 2.4G | Test Report | 2016-05-06 | PDF 1.9 MB |
| Test Report BT 4.0 | Test Report | 2016-05-06 | PDF 1.9 MB |
| Agent Authorization Letter | Cover Letter(s) | 2016-05-06 | PDF 234.4 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-05-06 | PDF 219.8 KB |
| RF Exposure Info | RF Exposure Info | 2016-05-06 | PDF 1.4 MB |
| Block Diagram Metadata only | Block Diagram | PDF 42.2 KB | |
| Schematics Metadata only | Schematics | PDF 368.8 KB | |
| Schematics PCB Placement and Layout Metadata only | Schematics | PDF 1.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 76.1 KB |
Application Information
| Application ID | Mu6NbOOyQ6D6UugzzMoeuw== |
|---|---|
| Final Action Date | 2016-05-06 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022596753 |
| Model | RM101604 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | RONIN-MX |
| Responsible Party | fajia wang, PM, certification@dji.com  , +8675586152250 |
| Test Firm | Ivy zhu, Shenzhen Morlab Communications Technology Co., Ltd, ivy.zhu@morlab.cn  , 8675536698555 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | Yes |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Mu6NbOOyQ6D6UugzzMoeuw== | 2016-05-06 | Original Equipment |
| MqaOdPr9VjIkk6iN0PPscg== | 2016-05-06 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Mu6NbOOyQ6D6UugzzMoeuw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 05/06/2016 Application Dated: 05/06/2016 |
| SZ DJI TECHNOLOGY CO., LTD |
| 14th floor, West Wing, Skyworth Semiconductor |
| Design Building NO.18 Gaoxin South 4th Ave, |
| Nanshan District, Shenzhen, Guangdong, 518057 China |
| Attention: fajia wang , PM |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SS3-RM101604 |
| Name of Grantee: | SZ DJI TECHNOLOGY CO., LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | RONIN-MX |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2415.0 - 2473.0 | 0.0108 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.001 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
