FCC ID SW9-GQ3028
Mobile Phone
by SHENZHEN GOTRON ELECTRONIC CO.,LTD
Grantee Code: SW9 Product Code: GQ3028
Latest application date: 2016-09-06
Device Images
FCC ID Device Details
| FCC ID | SW9-GQ3028 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | SW9 |
| Product Code | GQ3028 |
| Applicant Business | SHENZHEN GOTRON ELECTRONIC CO.,LTD 🇨🇳 |
| Equipment Class | Mobile Phone |
| Test Firm | Waltek Services(Shenzhen) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-09-06 |
| 2402-2480 MHz | Original Equipment | 2016-09-06 |
| 706.5-713.5 MHz | Original Equipment | 2016-09-06 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 15_GQ3028 UserMan,r1.pdf | Users Manual | 2016-09-06 | PDF 1.1 MB |

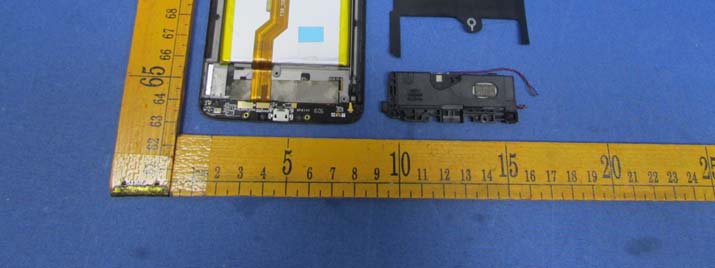

| 09_GQ3028 IntPho.pdf | Internal Photos | 2016-09-06 | PDF 658.9 KB |

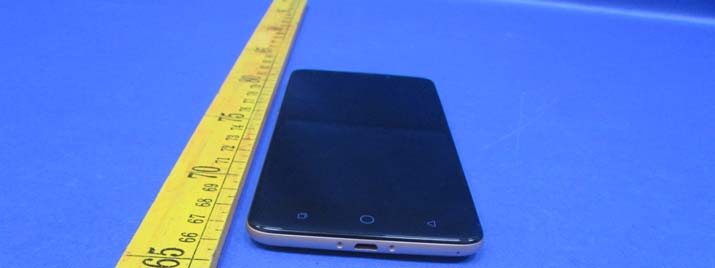

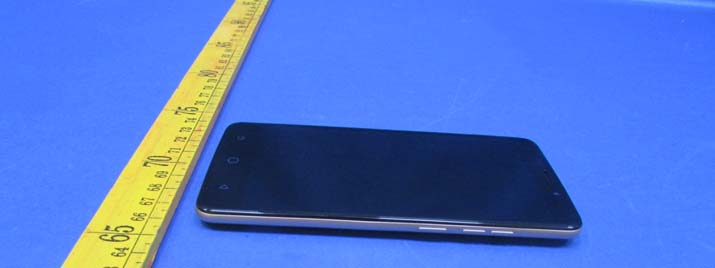

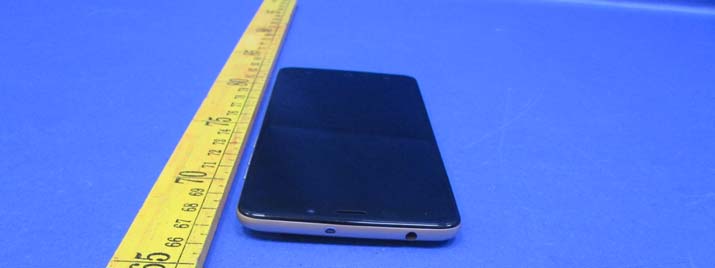

| 08_GQ3028 ExtPho.pdf | External Photos | 2016-09-06 | PDF 304.9 KB |
| 06-07_GQ3028 LabelSmpl-Loc.pdf | ID Label/Location Info | 2016-09-06 | PDF 62.2 KB |
| 17_GQ3028 AntSpec,r1.pdf | Operational Description | 2016-09-06 | PDF 51.2 KB |
| 10_GQ3028 TSup BT,WIFI,BLE.pdf | Test Setup Photos | 2016-09-06 | PDF 148.6 KB |
| 10_GQ3028 TSup PCE.pdf | Test Setup Photos | 2016-09-06 | PDF 113.6 KB |
| 14_GQ3028 TestRpt DSS, r2.pdf | Test Report | 2016-09-06 | PDF 2 MB |
| 14_GQ3028 TestRpt DTS.pdf | Test Report | 2016-09-06 | PDF 2.7 MB |
| 14_GQ3028 TestRpt JBP.pdf | Test Report | 2016-09-06 | PDF 536.3 KB |
| 14_GQ3028 TestRpt PCE_2+3G, r2.pdf | Test Report | 2016-09-06 | PDF 2.9 MB |
| 14_GQ3028 TestRpt PCE_4G, r3.pdf | Test Report | 2016-09-06 | PDF 413.1 KB |
| LTE Band 17-1, Peak to Average Ratio.pdf | Test Report | 2016-09-06 | PDF 5.6 MB |
| LTE Band 17-2, Transmitter Occupied Bandwidth(SA).pdf | Test Report | 2016-09-06 | PDF 787 KB |
| LTE Band 17-3, Band Edge.pdf | Test Report | 2016-09-06 | PDF 3.5 MB |
| LTE Band 17-4, Transmitter Spurious Emissions.pdf | Test Report | 2016-09-06 | PDF 243.2 KB |
| LTE Band 2-1, Band Edge_part1.pdf | Test Report | 2016-09-06 | PDF 5.5 MB |
| LTE Band 2-2, Band Edge_part2.pdf | Test Report | 2016-09-06 | PDF 2.7 MB |
| LTE Band 2-3, Transmitter Spurious Emissions.pdf | Test Report | 2016-09-06 | PDF 999.4 KB |
| LTE Band 2-4, Transmitter Occupied Bandwidth(SA).pdf | Test Report | 2016-09-06 | PDF 2.2 MB |
| LTE Band 2-5 Peak to Average Ratio.pdf | Test Report | 2016-09-06 | PDF 5.6 MB |
| LTE Band 4-1, Band Edge_part1.pdf | Test Report | 2016-09-06 | PDF 5.5 MB |
| LTE Band 4-2, Band Edge_part2.pdf | Test Report | 2016-09-06 | PDF 2.7 MB |
| LTE Band 4-3 Peak to Average Ratio.pdf | Test Report | 2016-09-06 | PDF 5.7 MB |
| LTE Band 4-4 Transmitter Occupied Bandwidth(SA).pdf | Test Report | 2016-09-06 | PDF 2.2 MB |
| LTE Band 4-5 Transmitter Spurious Emissions.pdf | Test Report | 2016-09-06 | PDF 1,000.6 KB |
| LTE Band 7-1, Band Edge.pdf | Test Report | 2016-09-06 | PDF 5.4 MB |
| LTE Band 7-2, Peak to Average Ratio.pdf | Test Report | 2016-09-06 | PDF 3.8 MB |
| LTE Band 7-3, Transmitter Occupied Bandwidth(SA).pdf | Test Report | 2016-09-06 | PDF 1.5 MB |
| LTE Band 7-4 Transmitter Spurious Emissions.pdf | Test Report | 2016-09-06 | PDF 688 KB |
| 18_GQ3028 RFExp, r6 (p1-50).pdf | RF Exposure Info | 2016-09-06 | PDF 1.6 MB |
| 18_GQ3028 RFExp, r6 (p101-125).pdf | RF Exposure Info | 2016-09-06 | PDF 5.4 MB |
| 18_GQ3028 RFExp, r6 (p126-150).pdf | RF Exposure Info | 2016-09-06 | PDF 5.3 MB |
| 18_GQ3028 RFExp, r6 (p151-178).pdf | RF Exposure Info | 2016-09-06 | PDF 3.6 MB |
| 18_GQ3028 RFExp, r6 (p51-100).pdf | RF Exposure Info | 2016-09-06 | PDF 2.4 MB |
| 12_GQ3028 BlkDia,r1.pdf Metadata only | Block Diagram | PDF 29.2 KB | |
| 13_GQ3028 Schem, r2.pdf Metadata only | Schematics | PDF 662.4 KB | |
| 11_GQ3028 OpDes,r1.pdf Metadata only | Operational Description | PDF 217.9 KB | |
| 16_GQ3028 PartsLst.pdf Metadata only | Parts List/Tune Up Info | PDF 95.1 KB | |
| 21_GQ3028 TunPro,r1.pdf Metadata only | Parts List/Tune Up Info | PDF 115.6 KB |
Application Information
| Application ID | zaHM+pNnFzDa3iJDzToZCw== |
|---|---|
| Final Action Date | 2016-09-06 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022501902 |
| Model | GQ3028 |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | Mobile Phone |
| Responsible Party | Huaiwei Lin, Manager, pxht168@163.com  , 0755-83895989 |
| Test Firm | philo zhong, Waltek Services(Shenzhen) Co., Ltd., philo@waltek.com.cn  , 8675527553488 |
| TCB Email | joergkusig@eurofins.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| zaHM+pNnFzDa3iJDzToZCw== | 2016-09-06 | Original Equipment |
| z1TPLcnF0iWpm/q+ie2meA== | 2016-09-06 | Original Equipment |
| sEcUS528WATpCNLO20SD+g== | 2016-09-06 | Original Equipment |
| b5Nf1POWxqV0YMleNIjCUg== | 2016-09-06 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules |
|---|---|---|---|---|
| 706.5-713.5 MHz | 0.009 | 1ppm | 4M49G7D | 27 |
| 706.5-713.5 MHz | 0.009 | 1ppm | 4M50W7D | 27 |
| 709-711 MHz | 0.009 | 1ppm | 8M93G7D | 27 |
| 709-711 MHz | 0.009 | 1ppm | 8M94W7D | 27 |
| 1710.7-1754.3 MHz | 0.142 | 1ppm | 1M16G7D | 27 |
| 1710.7-1754.3 MHz | 0.142 | 1ppm | 1M16W7D | 27 |
| 1712.4-1752.6 MHz | 0.11 | 1ppm | 4M22F9W | 27 |
| 1720-1745 MHz | 0.142 | 1ppm | 17M9W7D | 27 |
| 1850.2-1909.8 MHz | 0.958 | 1ppm | 250KGXW | 24E |
| 1850.2-1909.8 MHz | 0.393 | 1ppm | 246KG7W | 24E |
| 1850.7-1909.3 MHz | 0.162 | 1ppm | 1M16G7D | 24E |
| 1850.7-1909.3 MHz | 0.162 | 1ppm | 1M16W7D | 24E |
| 1852.4-1907.6 MHz | 0.213 | 1ppm | 4M23F9W | 24E |
| 1860-1900 MHz | 0.162 | 1ppm | 17M9W7D | 24E |
| 1860-1900 MHz | 0.162 | 1ppm | 17M9G7D | 24E |
| 2402-2480 MHz | 0.0004 | 15C | ||
| 2402-2480 MHz | 0.0035000 | 15C | ||
| 2412-2462 MHz | 0.0089 | 15C | ||
| 2502.5-2567.5 MHz | 0.152 | 1ppm | 4M40G7D | 27 |
| 2502.5-2567.5 MHz | 0.152 | 1ppm | 4M50W7D | 27 |
| 2510-2560 MHz | 0.152 | 1ppm | 17M9G7D | 27 |
| 2510-2560 MHz | 0.152 | 1ppm | 17M9W7D | 27 |
Grants
TCB Grant - Application zaHM+pNnFzDa3iJDzToZCw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Rm 24B,Block C of Electronic &Technology Building, |
| 2070 ShenNan Middle Road |
| Shenzhen, China |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
EAS Grant - Application zaHM+pNnFzDa3iJDzToZCw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN GOTRON ELECTRONIC CO.,LTD Rm 24B,Block C of Electronic &Technology Building, 2070 ShenNan Middle Road Shenzhen, China |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Rm 24B,Block C of Electronic &Technology Building, |
| 2070 ShenNan Middle Road |
| Shenzhen, China |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0035 |
| Power listed is conducted. |
EAS Grant - Application z1TPLcnF0iWpm/q+ie2meA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN GOTRON ELECTRONIC CO.,LTD Rm 24B,Block C of Electronic &Technology Building, 2070 ShenNan Middle Road Shenzhen, China |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0035 |
| Power listed is conducted. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Rm 24B,Block C of Electronic &Technology Building, |
| 2070 ShenNan Middle Road |
| Shenzhen, China |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0004 | |||
| 15C | 2412.0 - 2462.0 | 0.0089 |
| Power listed is conducted. This device supports 20 and 40MHz bandwidth operation. |
EAS Grant - Application sEcUS528WATpCNLO20SD+g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN GOTRON ELECTRONIC CO.,LTD Rm 24B,Block C of Electronic &Technology Building, 2070 ShenNan Middle Road Shenzhen, China |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0004 | |||
| 15C | 2412.0 - 2462.0 | 0.0089 |
| Power listed is conducted. This device supports 20 and 40MHz bandwidth operation. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Rm 24B,Block C of Electronic &Technology Building, |
| 2070 ShenNan Middle Road |
| Shenzhen, China |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 842.2 - 848.8 | 1.107 | 1.0 PM | 250KGXW | |
| 22H | 824.2 - 848.8 | 0.366 | 1.0 PM | 250KG7W | |
| 27 | 1712.4 - 1752.6 | 0.11 | 1.0 PM | 4M22F9W | |
| 24E | 1850.2 - 1909.8 | 0.958 | 1.0 PM | 250KGXW | |
| 24E | 1850.2 - 1909.8 | 0.393 | 1.0 PM | 246KG7W | |
| 24E | 1852.4 - 1907.6 | 0.213 | 1.0 PM | 4M23F9W | |
| 24E | 1850.7 - 1909.3 | 0.162 | 1.0 PM | 1M16G7D | |
| 24E | 1850.7 - 1909.3 | 0.162 | 1.0 PM | 1M16W7D | |
| 24E | 1860.0 - 1900.0 | 0.162 | 1.0 PM | 17M9G7D | |
| 24E | 1860.0 - 1900.0 | 0.162 | 1.0 PM | 17M9W7D | |
| 27 | 1710.7 - 1754.3 | 0.142 | 1.0 PM | 1M16G7D | |
| 27 | 1710.7 - 1754.3 | 0.142 | 1.0 PM | 1M16W7D | |
| 27 | 1720.0 - 1745.0 | 0.142 | 1.0 PM | 17M9W7D | |
| 27 | 2502.5 - 2567.5 | 0.152 | 1.0 PM | 4M40G7D | |
| 27 | 2502.5 - 2567.5 | 0.152 | 1.0 PM | 4M50W7D | |
| 27 | 2510.0 - 2560.0 | 0.152 | 1.0 PM | 17M9G7D | |
| 27 | 2510.0 - 2560.0 | 0.152 | 1.0 PM | 17M9W7D | |
| 27 | 706.5 - 713.5 | 0.009 | 1.0 PM | 4M49G7D | |
| 27 | 706.5 - 713.5 | 0.009 | 1.0 PM | 4M50W7D | |
| 27 | 709.0 - 711.0 | 0.009 | 1.0 PM | 8M93G7D | |
| 27 | 709.0 - 711.0 | 0.009 | 1.0 PM | 8M94W7D |
| Output power listed is ERP for operations below 1 GHz and EIRP for operations above 1 GHz. LTE supports 1.4/3/5/10/15/20 MHz modes in Band 2, 1.4/3/5/10/15/20 MHz modes in Band 4, 5/10/15/20 MHz modes in Band 7 and 5/10 MHz modes in Band 17. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device, including its antenna, and the user's body. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for U.S. operations. The highest reported SAR for head, body-worn accessory and simultaneous transmission (Hotspot) exposure conditions are 0.88W/kg, 1.19W/kg and 1.38W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. |
EAS Grant - Application b5Nf1POWxqV0YMleNIjCUg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN GOTRON ELECTRONIC CO.,LTD Rm 24B,Block C of Electronic &Technology Building, 2070 ShenNan Middle Road Shenzhen, China |
Date of Grant: 09/06/2016 Application Dated: 09/06/2016 |
| Attention: Huaiwei Lin , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SW9-GQ3028 |
| Name of Grantee: | SHENZHEN GOTRON ELECTRONIC CO.,LTD |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 842.2 - 848.8 | 1.107 | 1.0 PM | 250KGXW | |
| 22H | 824.2 - 848.8 | 0.366 | 1.0 PM | 250KG7W | |
| 27 | 1712.4 - 1752.6 | 0.11 | 1.0 PM | 4M22F9W | |
| 24E | 1850.2 - 1909.8 | 0.958 | 1.0 PM | 250KGXW | |
| 24E | 1850.2 - 1909.8 | 0.393 | 1.0 PM | 246KG7W | |
| 24E | 1852.4 - 1907.6 | 0.213 | 1.0 PM | 4M23F9W | |
| 24E | 1850.7 - 1909.3 | 0.162 | 1.0 PM | 1M16G7D | |
| 24E | 1850.7 - 1909.3 | 0.162 | 1.0 PM | 1M16W7D | |
| 24E | 1860.0 - 1900.0 | 0.162 | 1.0 PM | 17M9G7D | |
| 24E | 1860.0 - 1900.0 | 0.162 | 1.0 PM | 17M9W7D | |
| 27 | 1710.7 - 1754.3 | 0.142 | 1.0 PM | 1M16G7D | |
| 27 | 1710.7 - 1754.3 | 0.142 | 1.0 PM | 1M16W7D | |
| 27 | 1720.0 - 1745.0 | 0.142 | 1.0 PM | 17M9W7D | |
| 27 | 2502.5 - 2567.5 | 0.152 | 1.0 PM | 4M40G7D | |
| 27 | 2502.5 - 2567.5 | 0.152 | 1.0 PM | 4M50W7D | |
| 27 | 2510.0 - 2560.0 | 0.152 | 1.0 PM | 17M9G7D | |
| 27 | 2510.0 - 2560.0 | 0.152 | 1.0 PM | 17M9W7D | |
| 27 | 706.5 - 713.5 | 0.009 | 1.0 PM | 4M49G7D | |
| 27 | 706.5 - 713.5 | 0.009 | 1.0 PM | 4M50W7D | |
| 27 | 709.0 - 711.0 | 0.009 | 1.0 PM | 8M93G7D | |
| 27 | 709.0 - 711.0 | 0.009 | 1.0 PM | 8M94W7D |
| Output power listed is ERP for operations below 1 GHz and EIRP for operations above 1 GHz. LTE supports 1.4/3/5/10/15/20 MHz modes in Band 2, 1.4/3/5/10/15/20 MHz modes in Band 4, 5/10/15/20 MHz modes in Band 7 and 5/10 MHz modes in Band 17. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device, including its antenna, and the user's body. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for U.S. operations. The highest reported SAR for head, body-worn accessory and simultaneous transmission (Hotspot) exposure conditions are 0.88W/kg, 1.19W/kg and 1.38W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. |
| Mail To: |
