FCC ID SWX-AFR
AmpliFi Router
by Ubiquiti Inc.
Grantee Code: SWX Product Code: AFR
Latest application date: 2016-06-20
Device Images
FCC ID Device Details
| FCC ID | SWX-AFR |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | SWX |
| Product Code | AFR |
| Applicant Business | Ubiquiti Inc. 🇺🇸 |
| Related Domains |  ui.com  cerpass.com.tw |
| Equipment Class | AmpliFi Router |
| Test Firm | Cerpass technology corporation Test Laboratory |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-06-20 |
| 2402-2480 MHz | Original Equipment | 2016-06-20 |
| 2402-2480 MHz | Original Equipment | 2016-06-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual-1 | Users Manual | 2016-06-20 | PDF 5.8 MB |
| Users Manual-2 | Users Manual | 2016-06-20 | PDF 5.8 MB |
| Internal Photos | Internal Photos | 2016-06-20 | PDF 1.1 MB |
| External Photos | External Photos | 2016-06-20 | PDF 1.1 MB |

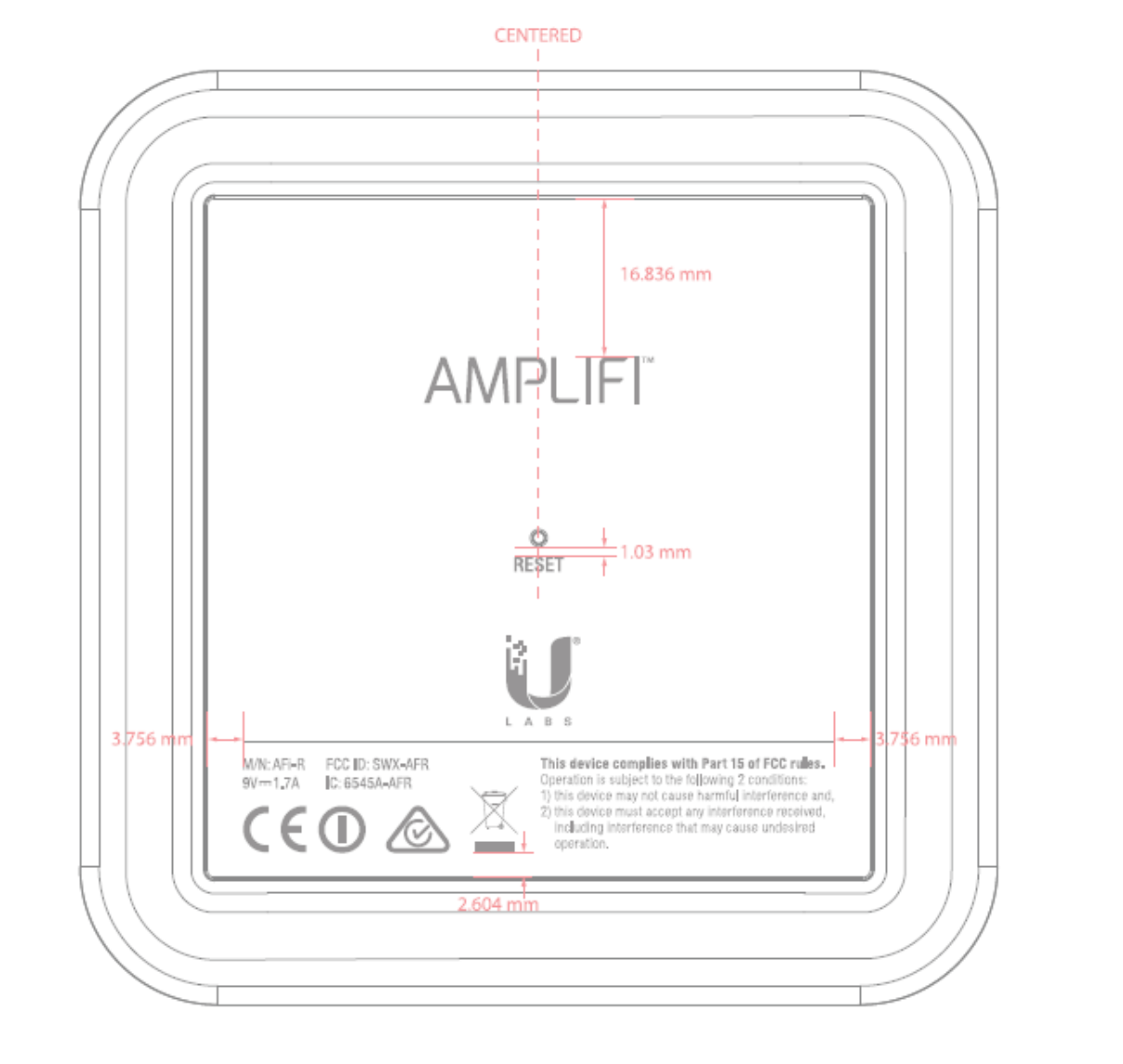

| ID Label/Location Info | ID Label/Location Info | 2016-06-20 | PDF 1.6 MB |

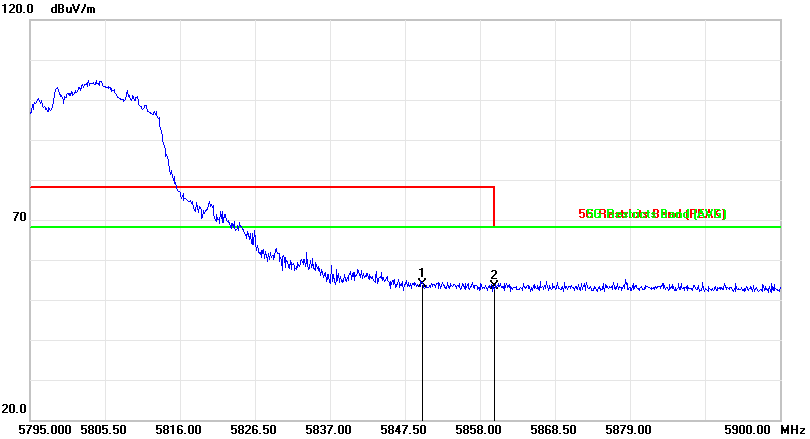

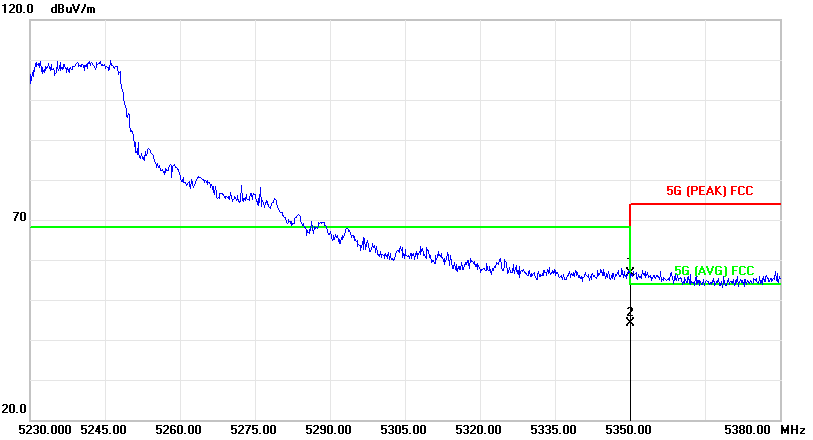

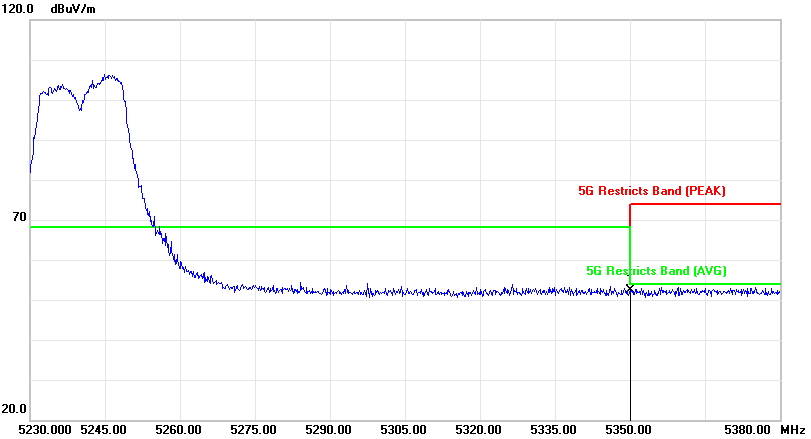

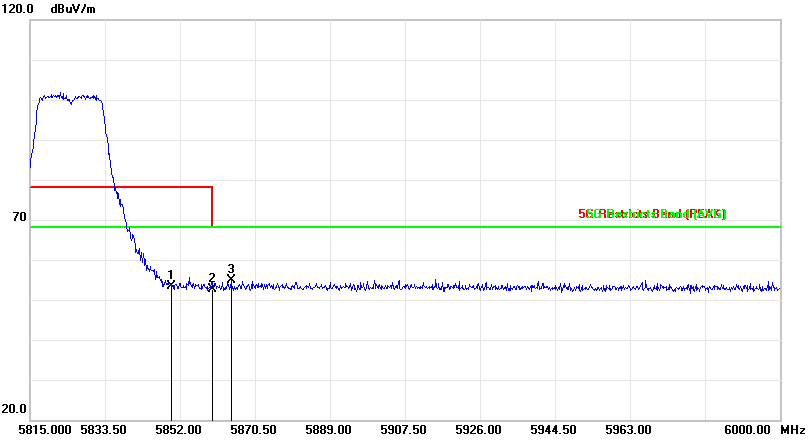

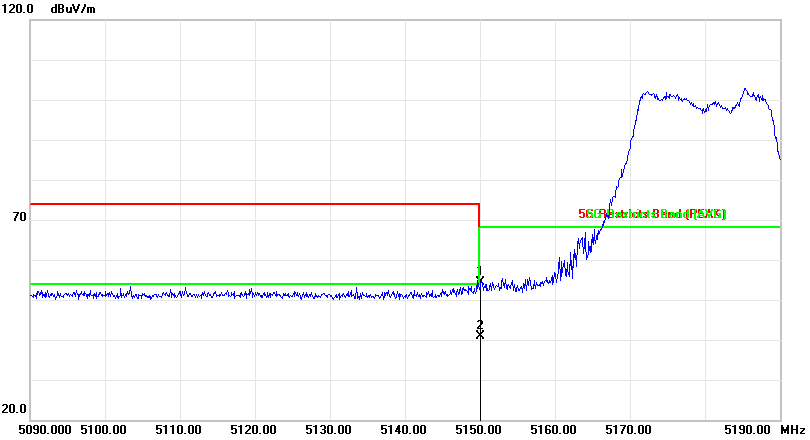

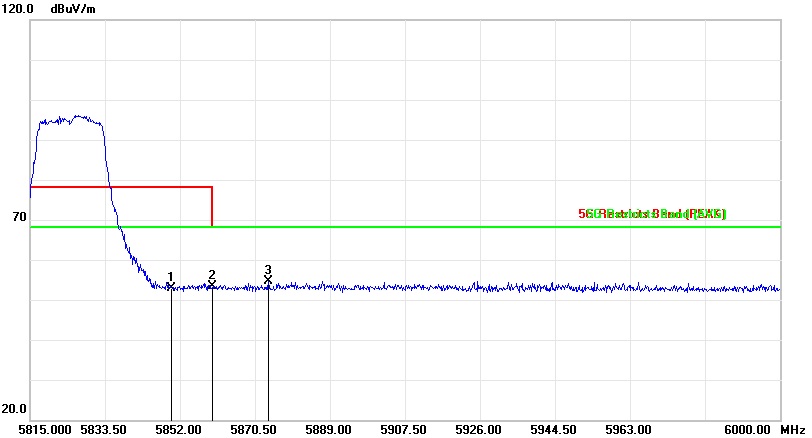

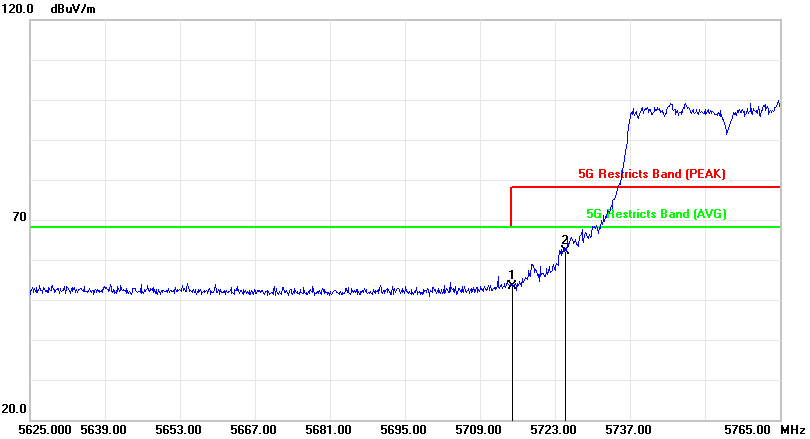

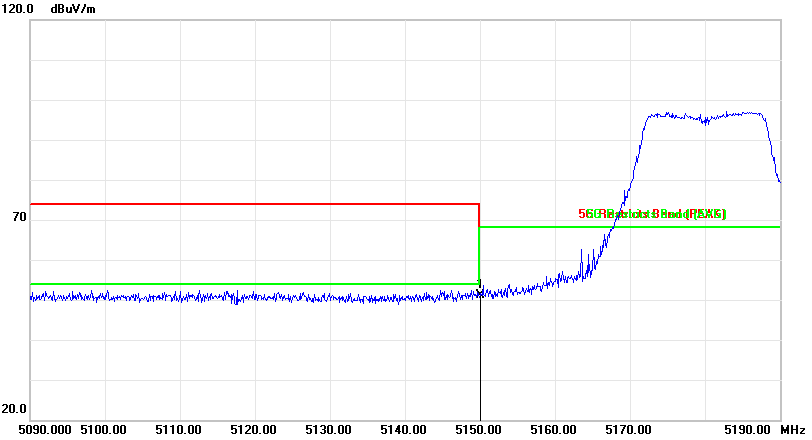

| Test Setup Photos | Test Setup Photos | 2016-06-20 | PDF 3.6 MB |
| Test Report | Test Report | 2016-06-20 | PDF 3.7 MB |
| Test Report for BLE | Test Report | 2016-06-20 | PDF 4 MB |
| Test Report for WLAN | Test Report | 2016-06-20 | PDF 5.5 MB |
| Test Report-1 | Test Report | 2016-06-20 | PDF 4.4 MB |
| Test Report-2 | Test Report | 2016-06-20 | PDF 4.7 MB |
| Antenna Spec. | Cover Letter(s) | 2016-06-20 | PDF 93 KB |
| Confidentiality | Cover Letter(s) | 2016-06-20 | PDF 15.1 KB |
| Declaration for model no. | Cover Letter(s) | 2016-06-20 | PDF 14.8 KB |
| Declaration of authorization | Cover Letter(s) | 2016-06-20 | PDF 17.5 KB |
| MPE | RF Exposure Info | 2016-06-20 | PDF 37.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 342.1 KB | |
| Schematics Metadata only | Schematics | PDF 755.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 9.4 KB | |
| Software security for UNII Metadata only | Operational Description | PDF 59.1 KB |
Application Information
| Application ID | Z7SGo7ZDNfmGw4guegaPdw== |
|---|---|
| Final Action Date | 2016-06-20 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0012268215 |
| Model | AFR |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | AmpliFi Router |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com , 385-293-3532 |
| Agent | Delia Delia Delia, Cerpass Technology Corporation, deliaf@cerpass.com.tw , 886-3-3226-888 |
| Technical Contact | Michael Taylor, Ubiquiti Networks, Inc., compliance@ubnt.com  , 408-942-3084 |
| Non-Technical Contact | Delia Feng, Cerpass Technology Corp., deliaf@cerpass.com.tw , 886-3-3226-888 |
| Test Firm | Ben Wang, Cerpass technology corporation Test Laboratory, benw@cerpass.com.tw , +886-3-3226888 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is conducted. The antenna(s) used for this transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The device for the band 5150-5250 MHz is only for indoor usage. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Z7SGo7ZDNfmGw4guegaPdw== | 2016-06-20 | Original Equipment |
| UtqujZc+G6Hx76H5VD+a3g== | 2016-06-20 | Original Equipment |
| LS9i4woMbi1hprRSqKOo3A== | 2016-06-20 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Z7SGo7ZDNfmGw4guegaPdw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 06/20/2016 Application Dated: 06/15/2016 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-AFR |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AmpliFi Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.52 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.44 |
| Power output listed is conducted. The antenna(s) used for this transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The device for the band 5150-5250 MHz is only for indoor usage. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application Z7SGo7ZDNfmGw4guegaPdw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 06/20/2016 Application Dated: 06/15/2016 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-AFR |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AmpliFi Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.52 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.44 |
| Power output listed is conducted. The antenna(s) used for this transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The device for the band 5150-5250 MHz is only for indoor usage. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 06/20/2016 Application Dated: 06/15/2016 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-AFR |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | AmpliFi Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.56 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.004 |
| Power output listed is conducted. The antenna(s) used for this transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application UtqujZc+G6Hx76H5VD+a3g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 06/20/2016 Application Dated: 06/15/2016 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-AFR |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | AmpliFi Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.56 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.004 |
| Power output listed is conducted. The antenna(s) used for this transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 06/20/2016 Application Dated: 06/15/2016 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-AFR |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | AmpliFi Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.01 |
| Power output listed is conducted. The antenna(s) used for this transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application LS9i4woMbi1hprRSqKOo3A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 06/20/2016 Application Dated: 06/15/2016 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-AFR |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | AmpliFi Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.01 |
| Power output listed is conducted. The antenna(s) used for this transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
