FCC ID SWX-LBE5AC120
LiteBeam AC
by Ubiquiti Inc.
Grantee Code: SWX Product Code: LBE5AC120
Latest application date: 2016-09-08
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5735-5840 MHz | Original Equipment | 2016-09-08 |
| 5735-5840 MHz | Original Equipment | 2015-08-13 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-09-08 | PDF 1.7 MB |
| User Manual | Users Manual | PDF 2 MB | |
| Internal Photos | Internal Photos | 2016-09-08 | PDF 2.1 MB |
| Internal Photos | Internal Photos | PDF 2.1 MB | |
| External Photos | External Photos | 2016-09-08 | PDF 812.1 KB |
| External Photos | External Photos | PDF 812.1 KB | |
| Label | ID Label/Location Info | 2016-09-08 | PDF 59.5 KB |
| Label Location | ID Label/Location Info | 2016-09-08 | PDF 42 KB |

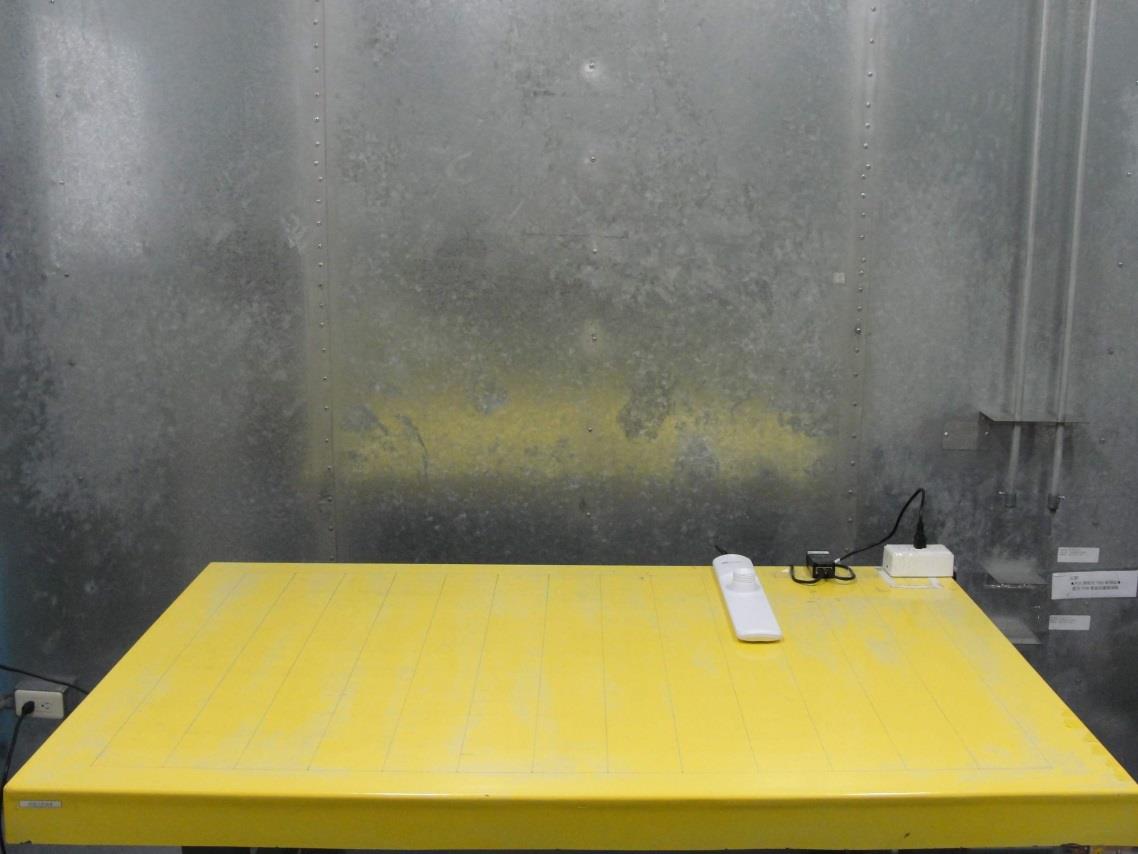

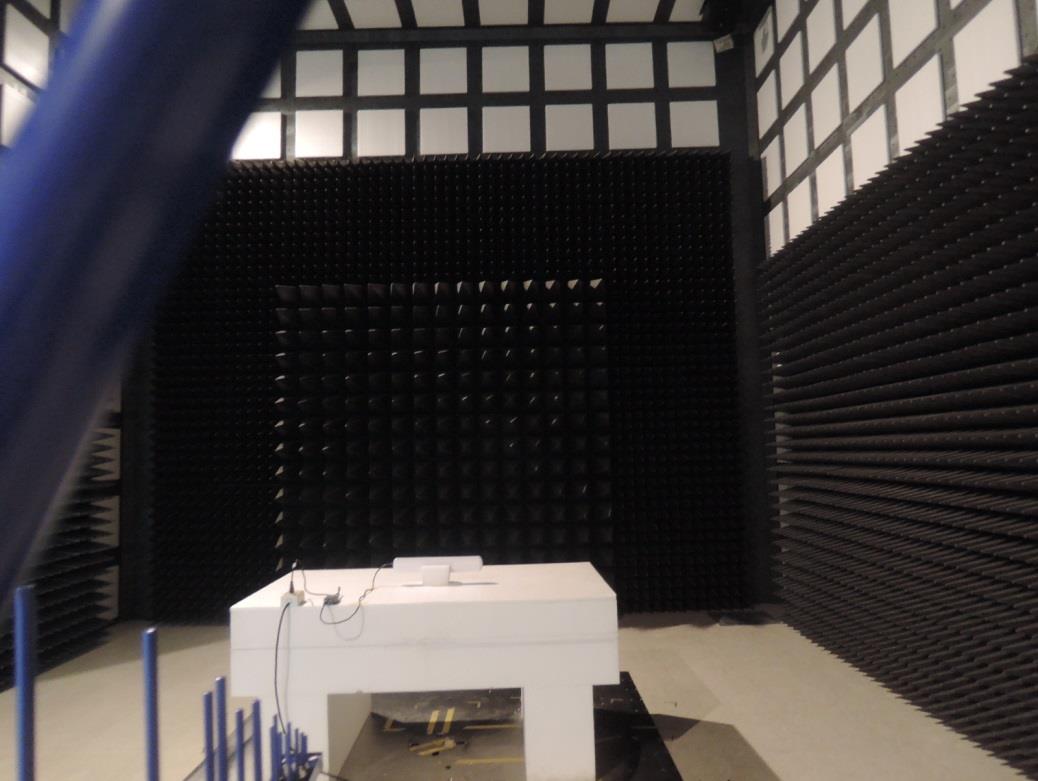

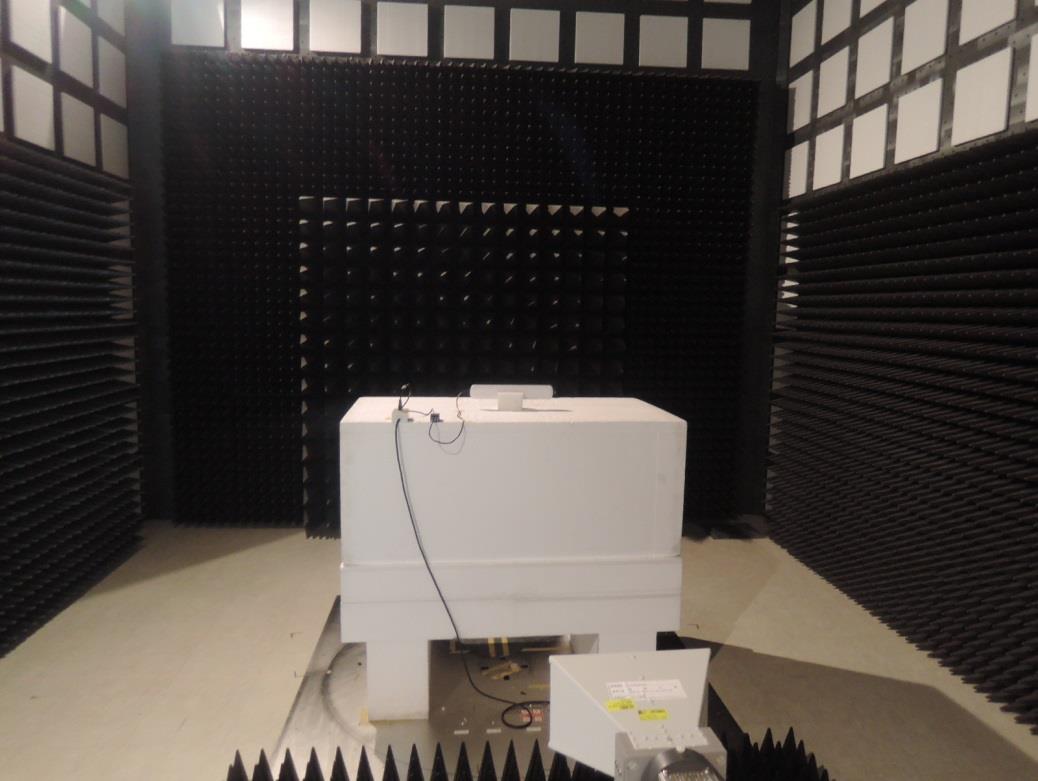

| Test Setup Photos | Test Setup Photos | 2016-09-08 | PDF 241 KB |
| Test Setup Photos | Test Setup Photos | PDF 238.3 KB | |
| Test Report | Test Report | 2016-09-08 | PDF 3.8 MB |
| Test Report DTS Appendix A&B | Test Report | 2015-08-13 | PDF 3.8 MB |
| Agent Authorization Letter | Cover Letter(s) | 2016-09-08 | PDF 33.8 KB |
| Antenna Expiration | Cover Letter(s) | 2016-09-08 | PDF 90.3 KB |
| Request for Confidentiality Letter | Cover Letter(s) | 2016-09-08 | PDF 298.2 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-08-13 | PDF 301.6 KB |
| POA | Cover Letter(s) | 2015-08-13 | PDF 304.4 KB |
| MPE | RF Exposure Info | 2016-09-08 | PDF 316.8 KB |
| RF Exposure | RF Exposure Info | 2015-08-13 | PDF 316.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 17 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 134.8 KB | |
| Block Diagram WLAN Metadata only | Block Diagram | PDF 20.9 KB | |
| Schematics Metadata only | Schematics | PDF 1.9 MB | |
| Schematics Metadata only | Schematics | PDF 283.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 11.2 KB | |
| Theory of Operation Metadata only | Operational Description | PDF 109.6 KB | |
| Security Exhibit Metadata only | SDR Software/Security Inf | PDF 454.5 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 52.3 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 16.8 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 24.2 KB |
Application Information
| Application ID | Z9PKx/k4v5mpUifYtrJ+9A== |
|---|---|
| Final Action Date | 2016-09-08 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0012268215 |
| Model | LBE5AC120 |
| Frequency Range | 5735-5840 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | LiteBeam AC |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com  , 385-293-3532 |
| Agent | Amanda Amanda Amanda, Compliance Testing, LLC, 480-926-3100 |
| Test Firm | Jim Tsai, Sporton International Inc, jimtsai@sporton.com.tw  , 88633273456 |
| TCB Email | amandar@compliancetesting.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined output power conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 43 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Z9PKx/k4v5mpUifYtrJ+9A== | 2016-09-08 | Original Equipment |
| TzpNF2tccZmfVEhyPlBRMA== | 2015-08-13 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Z9PKx/k4v5mpUifYtrJ+9A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 |
Date of Grant: 09/08/2016 Application Dated: 09/08/2016 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-LBE5AC120 |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | LiteBeam AC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 48 MO | 15E | 5735.0 - 5840.0 | 0.984 |
| Power listed is maximum combined output power conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 43 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
| 48: | The device has been approved under § 15.407(b)(4)(ii) for antenna gains greater than 10 dBi and cannot be manufactured, marketed, sold or imported after March 2, 2018. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application Z9PKx/k4v5mpUifYtrJ+9A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 09/08/2016 Application Dated: 09/08/2016 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-LBE5AC120 |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | LiteBeam AC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 48 MO | 15E | 5735.0 - 5840.0 | 0.984 |
| Power listed is maximum combined output power conducted. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 43 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
| 48: | The device has been approved under § 15.407(b)(4)(ii) for antenna gains greater than 10 dBi and cannot be manufactured, marketed, sold or imported after March 2, 2018. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
