FCC ID SWX-M445G
WiFi 5G Module
by Ubiquiti Inc.
Grantee Code: SWX Product Code: M445G
Latest application date: 2017-07-14
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2017-07-14 |
| 5180-5240 MHz | Original Equipment | 2016-10-04 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-10-04 | PDF 321.4 KB |
| Internal Photo 7-28-17 | Internal Photos | 2018-01-10 | PDF 811.2 KB |
| Internal Photos Metadata only | Internal Photos | 2018-01-10 | PDF 195.3 KB |
| Internal Photo | Internal Photos | 2016-10-04 | PDF 662.5 KB |

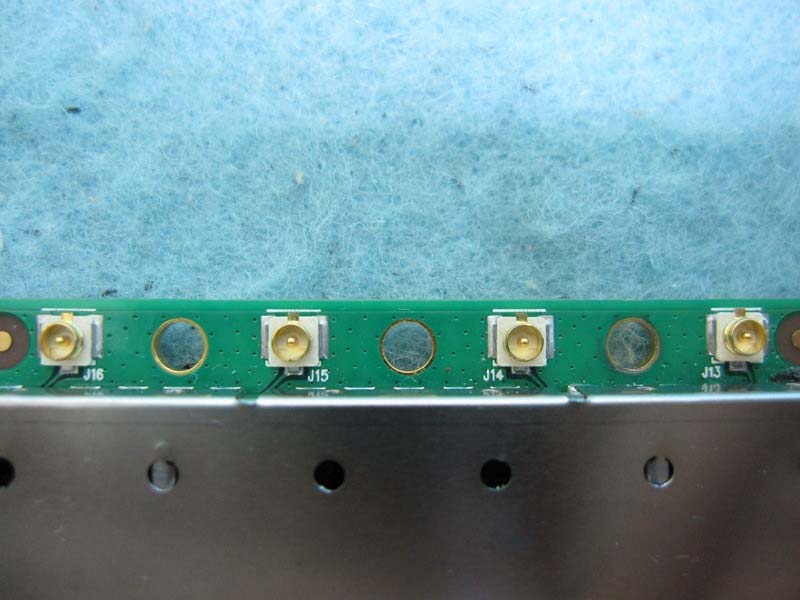

| External Photo 7-28-17 | External Photos | 2018-01-10 | PDF 252.7 KB |
| External Photos Metadata only | External Photos | 2018-01-10 | PDF 359.4 KB |

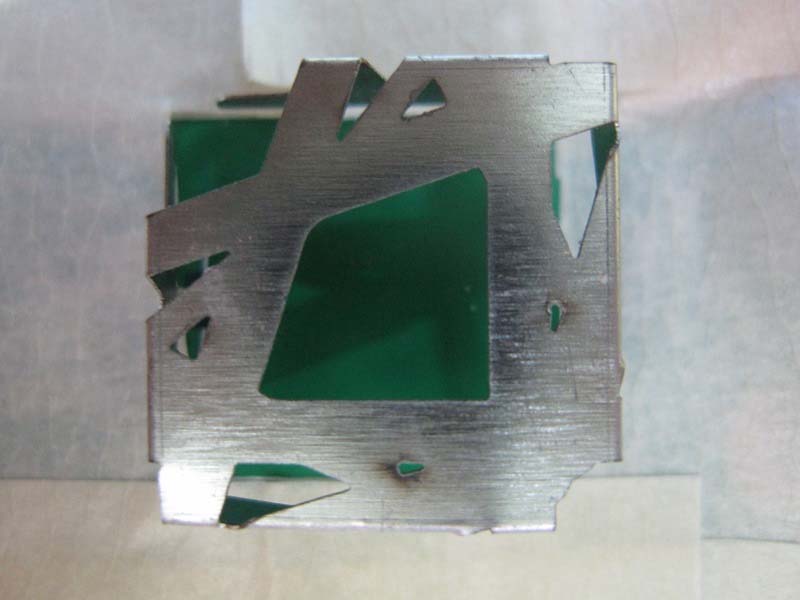

| External Photos | External Photos | 2016-10-04 | PDF 269.1 KB |
| Label and Location | ID Label/Location Info | 2016-10-04 | PDF 77.2 KB |

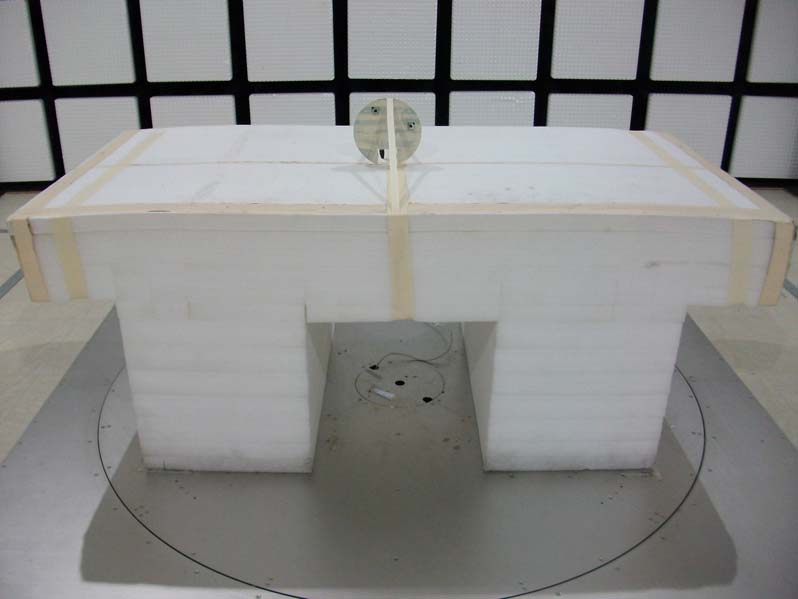

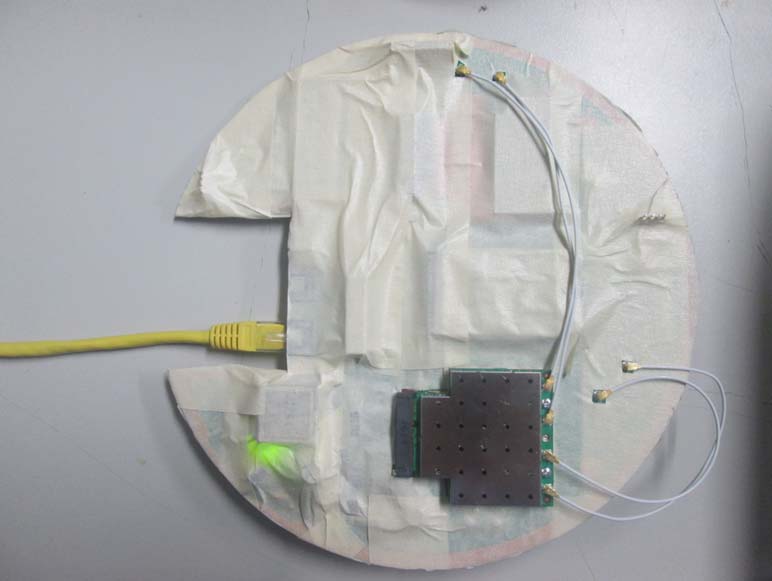

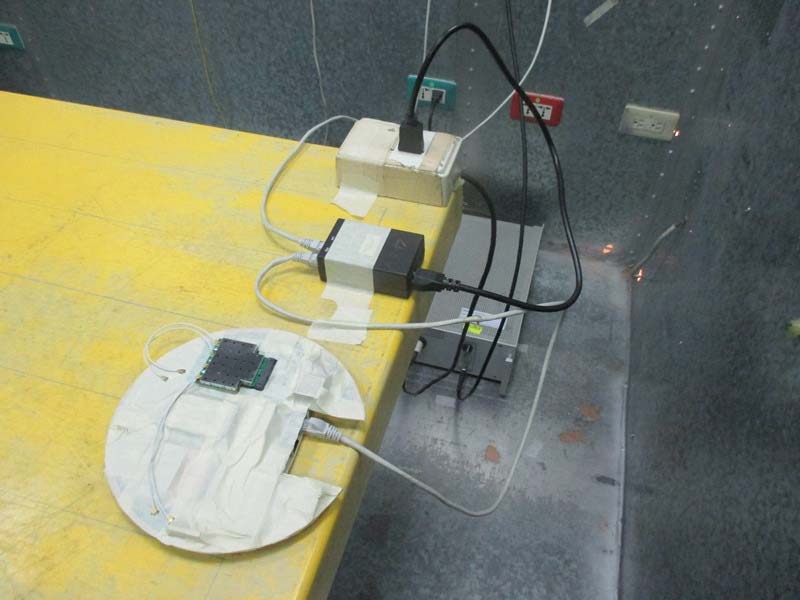

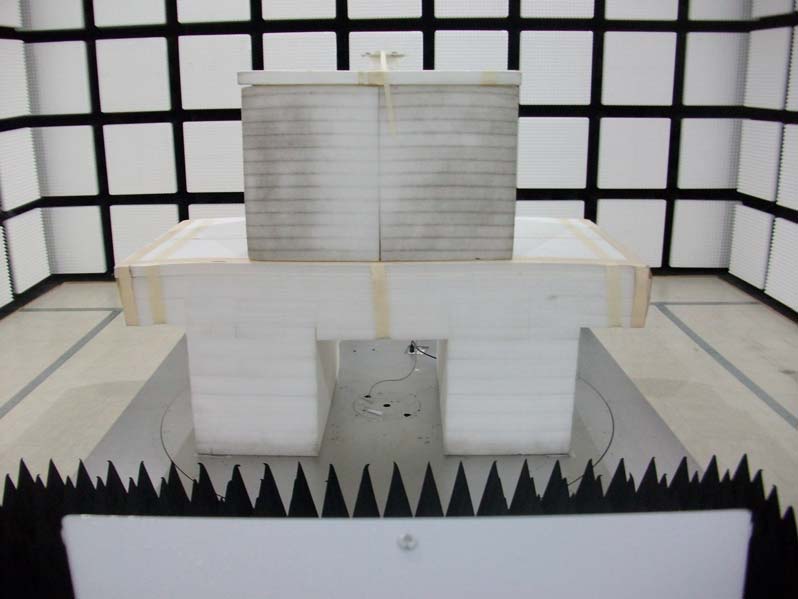

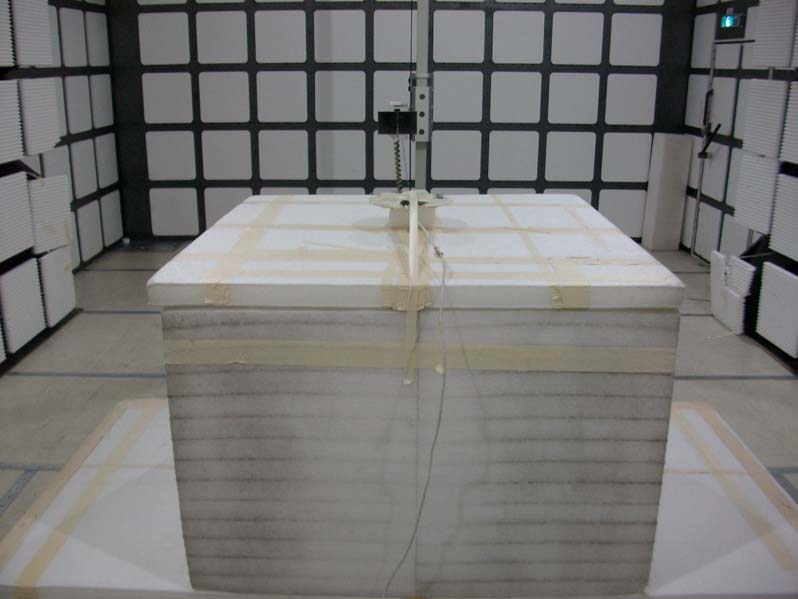

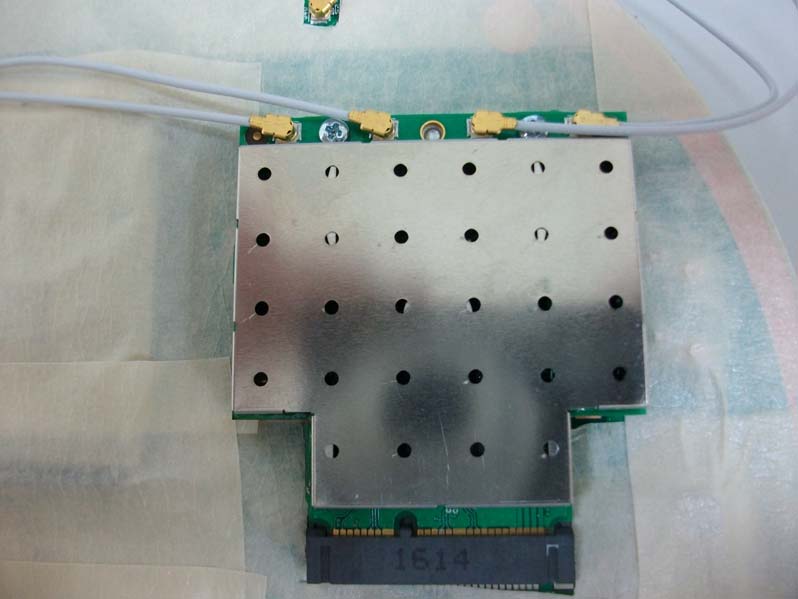

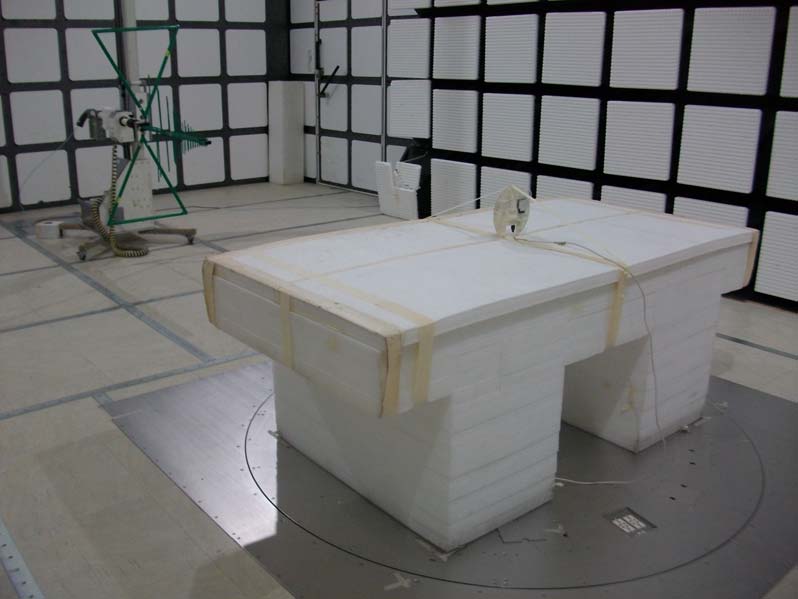

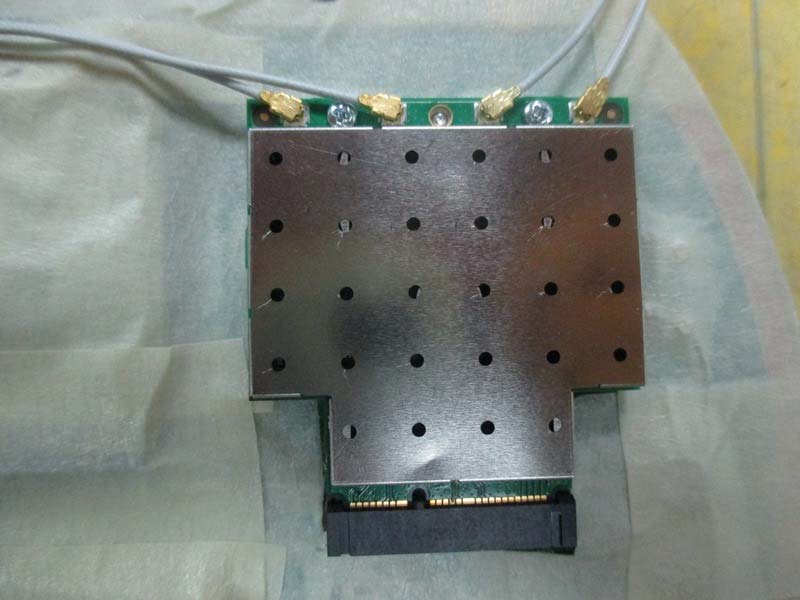

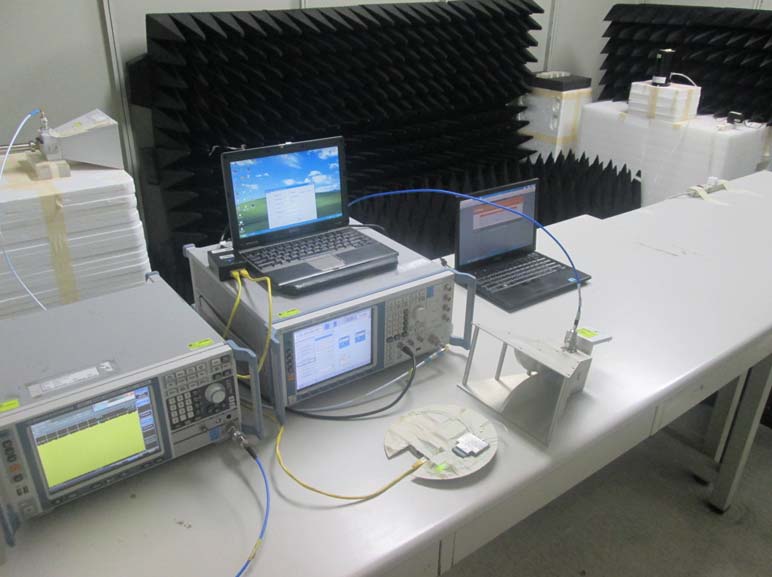

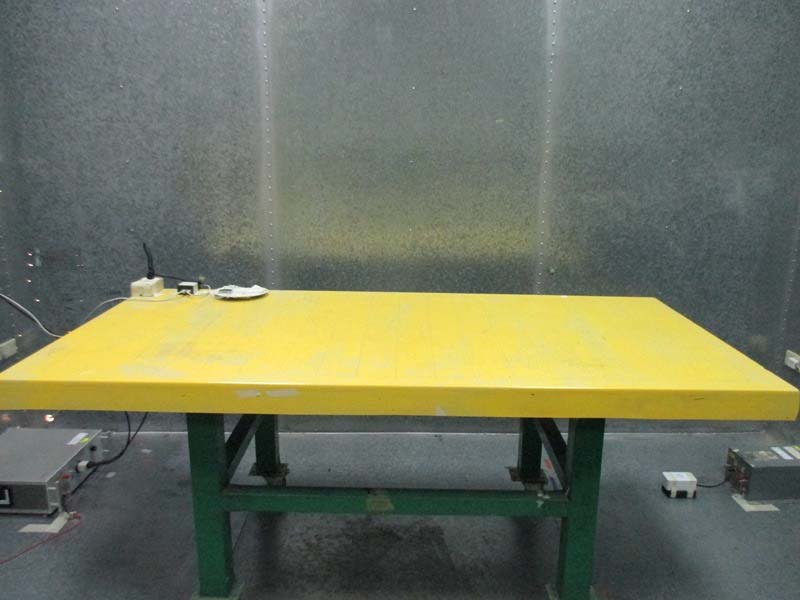

| Test Setup Photos | Test Setup Photos | 2018-01-10 | PDF 181.4 KB |
| RF Test Photos | Test Setup Photos | 2016-10-04 | PDF 344.6 KB |
| Test Photos | Test Setup Photos | 2016-10-04 | PDF 96.4 KB |
| RF Test Report | Test Report | 2017-07-14 | PDF 494.3 KB |
| MPE Test Report | RF Exposure Info | 2016-10-04 | PDF 372.3 KB |
| Maximun e.i.r.p. at any elevation angle above 30 degrees | Test Report | 2016-10-04 | PDF 79.2 KB |
| Test Report DFS | Test Report | 2016-10-04 | PDF 1.1 MB |
| Test Report Part 4 | Test Report | 2016-10-04 | PDF 3.4 MB |
| Test Report rf Part 1 | Test Report | 2016-10-04 | PDF 5.7 MB |
| Test Report rf Part 2 | Test Report | 2016-10-04 | PDF 1.8 MB |
| Test Report rf Part 3 | Test Report | 2016-10-04 | PDF 3 MB |
| C2PC Letter | Cover Letter(s) | 2017-07-14 | PDF 98.9 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-07-14 | PDF 156.1 KB |
| POA | Cover Letter(s) | 2017-07-14 | PDF 87.8 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-10-04 | PDF 47.4 KB |
| Modular Approval Letter | Cover Letter(s) | 2016-10-04 | PDF 17 KB |
| POA | Cover Letter(s) | 2016-10-04 | PDF 47.2 KB |
| UM Statement | Cover Letter(s) | 2016-10-04 | PDF 47 KB |
| tpc Declaration Letter | Cover Letter(s) | 2016-10-04 | PDF 49.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 24 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 29.6 KB | |
| Schematic Metadata only | Schematics | PDF 181.7 KB | |
| Schematics Metadata only | Schematics | PDF 231.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 64.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 56.6 KB | |
| Operational Description Antenna Metadata only | Operational Description | PDF 750.4 KB | |
| Operational Description SW Security Metadata only | SDR Software/Security Inf | PDF 47.2 KB | |
| Operational Description Software Security Metadata only | SDR Software/Security Inf | PDF 41.6 KB |
Application Information
| Application ID | tNCopuHisJB0GkrlPb+WcA== |
|---|---|
| Final Action Date | 2017-07-14 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0012268215 |
| Model | M445G |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WiFi 5G Module |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com  , 385-293-3532 |
| Test Firm | Sharon Jiang, SPORTON International Inc., sharonjiang@sporton.com.tw  , 886-3-656-9065 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 01/10/2018 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power listed is maximum combined output power conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This module is restricted to installation in products for use only in mobile and fixed applications. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except for FCC ID: SWX-M442G as shown in this filing. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device has 20, 40, and 80 MHz bandwidth modes. Class II Permissive Change |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| tNCopuHisJB0GkrlPb+WcA== | 2017-07-14 | Class II permissive change or modification of presently authorized equipment |
| bRogNCB8ormnqzO1YT4anw== | 2016-10-04 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application tNCopuHisJB0GkrlPb+WcA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 07/14/2017 Application Dated: 07/13/2017 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-M445G |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WiFi 5G Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 MO | 15E | 5180.0 - 5240.0 | 0.412 | ||
| 38 MO | 15E | 5260.0 - 5320.0 | 0.131 | ||
| 38 MO | 15E | 5500.0 - 5720.0 | 0.24 | ||
| 38 MO | 15E | 5745.0 - 5825.0 | 0.802 |
| Single Modular Approval. Power listed is maximum combined output power conducted. Device operates with specific antennas in MIMO configurations as described in this filing. This module is restricted to installation in products for use only in mobile and fixed applications. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except for FCC ID: SWX-M442G as shown in this filing. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device has 20, 40, and 80 MHz bandwidth modes. Class II Permissive Change |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
