FCC ID SWX-M5G
LiteBeam M5-23
by Ubiquiti Inc.
Grantee Code: SWX Product Code: M5G
Latest application date: 2016-08-22
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5745-5825 MHz | Original Equipment | 2016-08-22 |
| 5745-5825 MHz | Original Equipment | 2009-12-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-08-22 | PDF 1.1 MB |
| User manual | Users Manual | 2009-12-22 | PDF 1.1 MB |

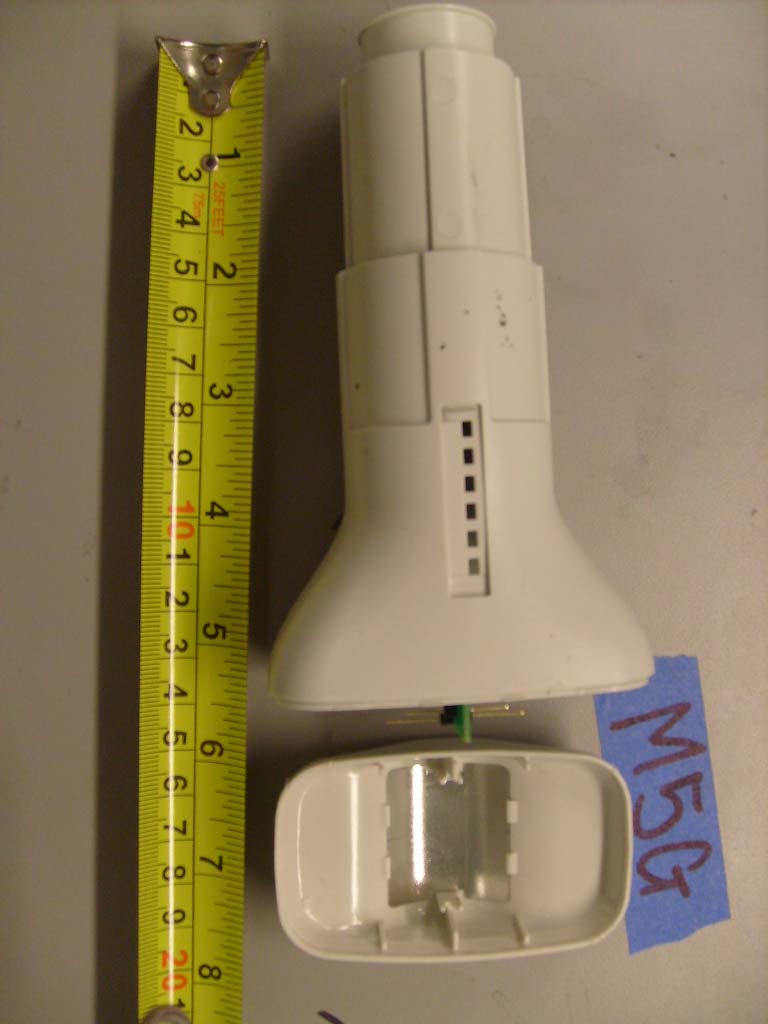

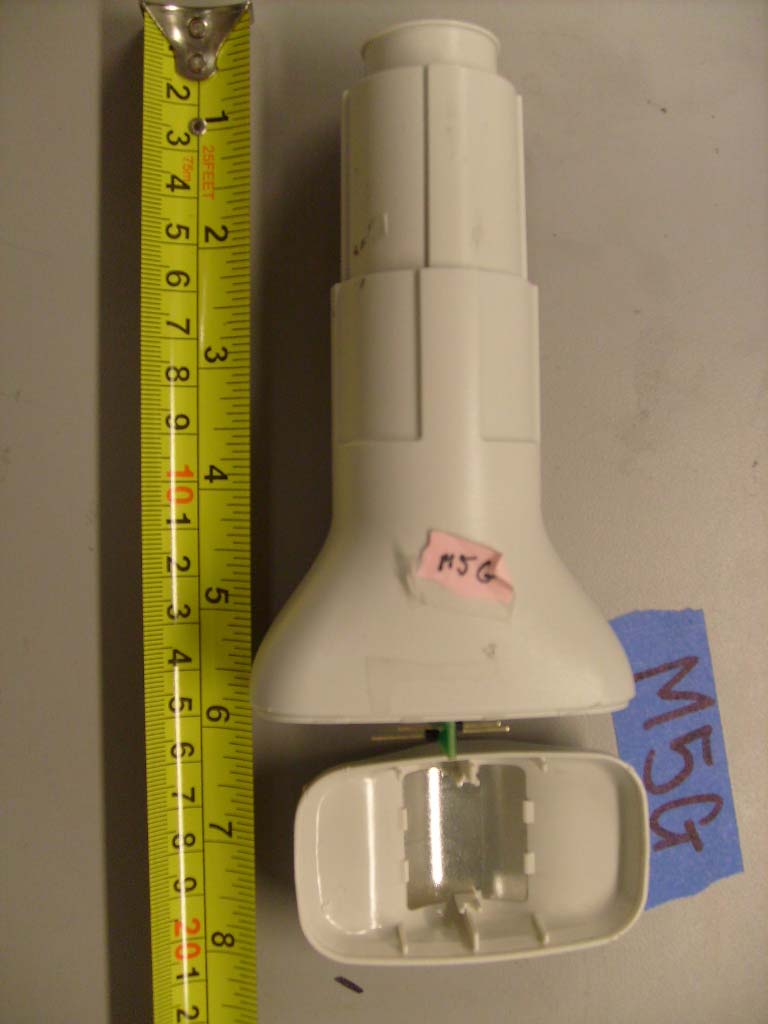

| External Photos | External Photos | 2016-08-22 | PDF 258.1 KB |
| External Photos | External Photos | 2009-12-22 | PDF 257.2 KB |
| Label_Label Location | ID Label/Location Info | 2016-08-22 | PDF 171.7 KB |
| Label and Location | ID Label/Location Info | 2009-12-22 | PDF 173.2 KB |

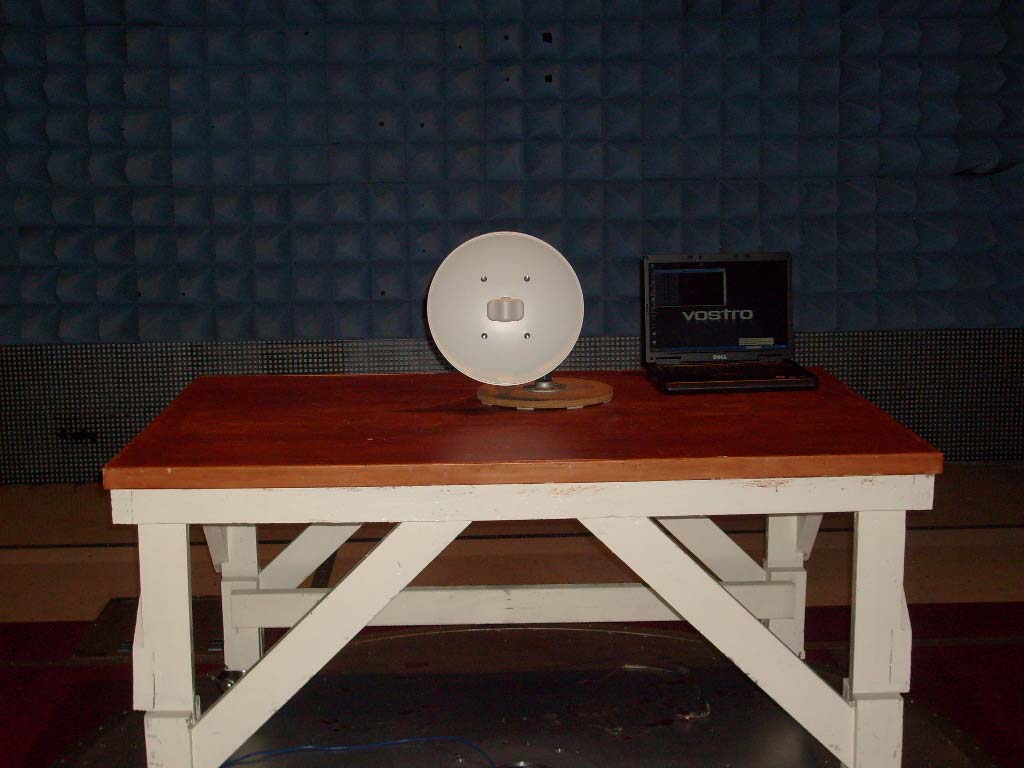

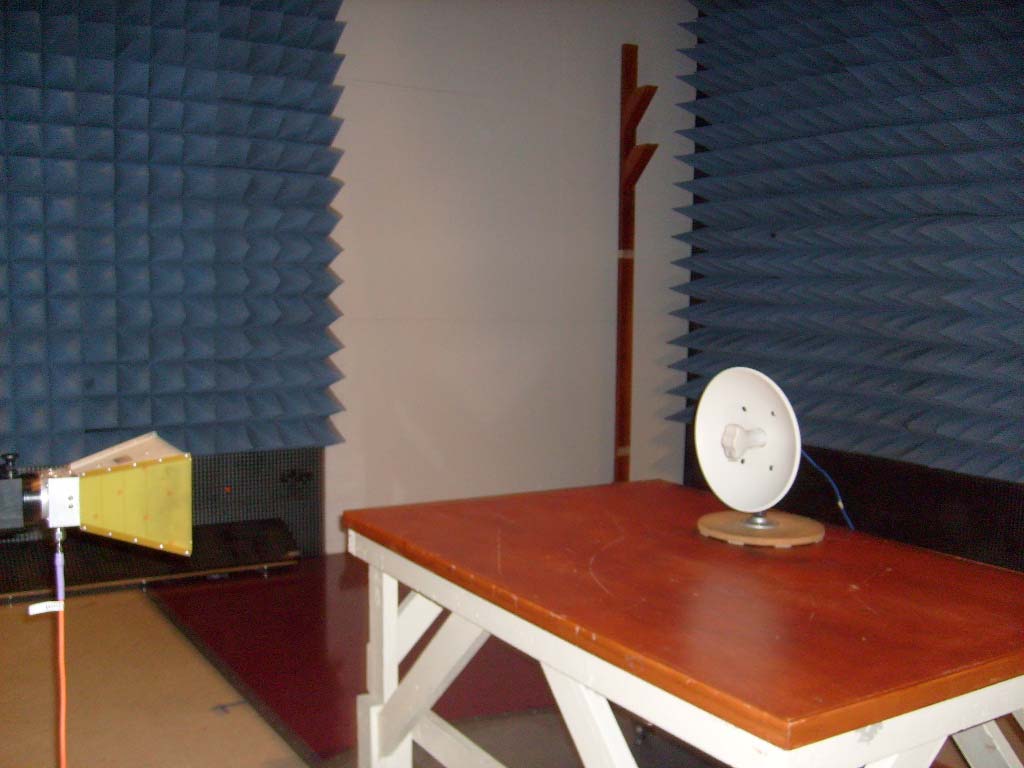

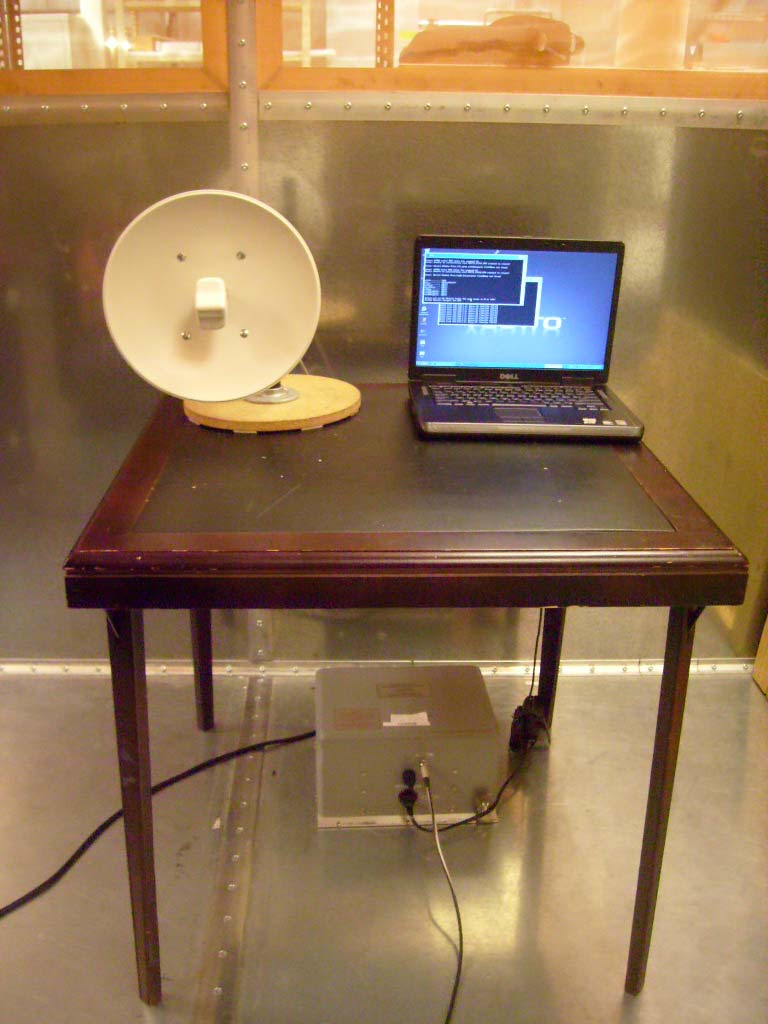

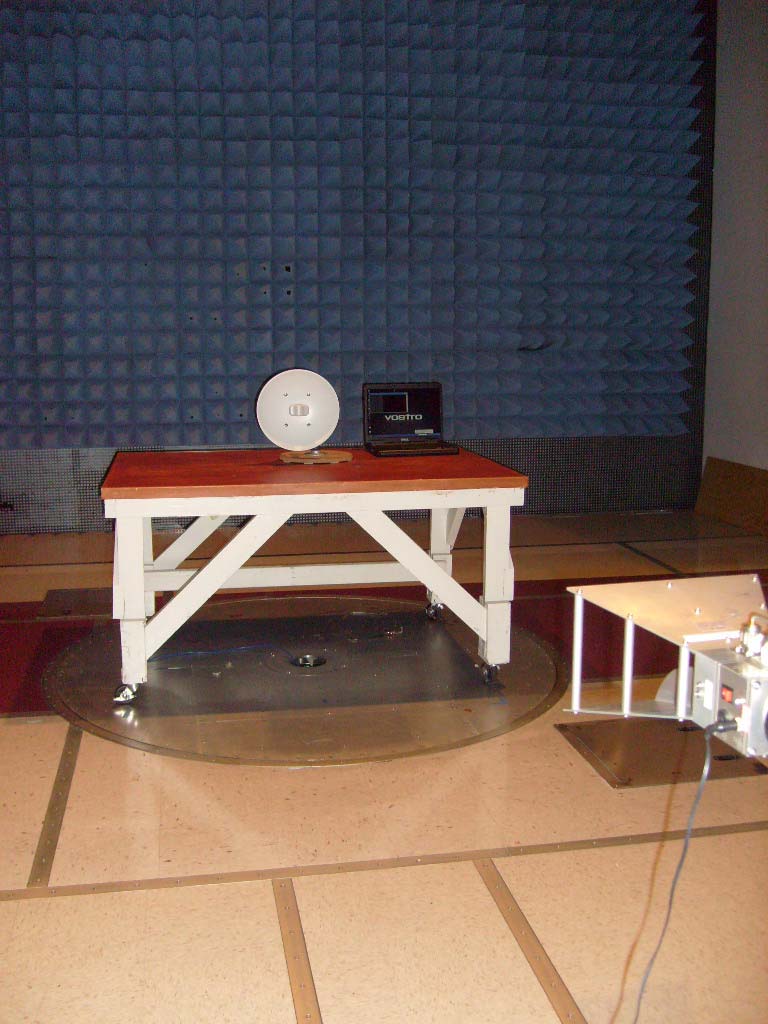

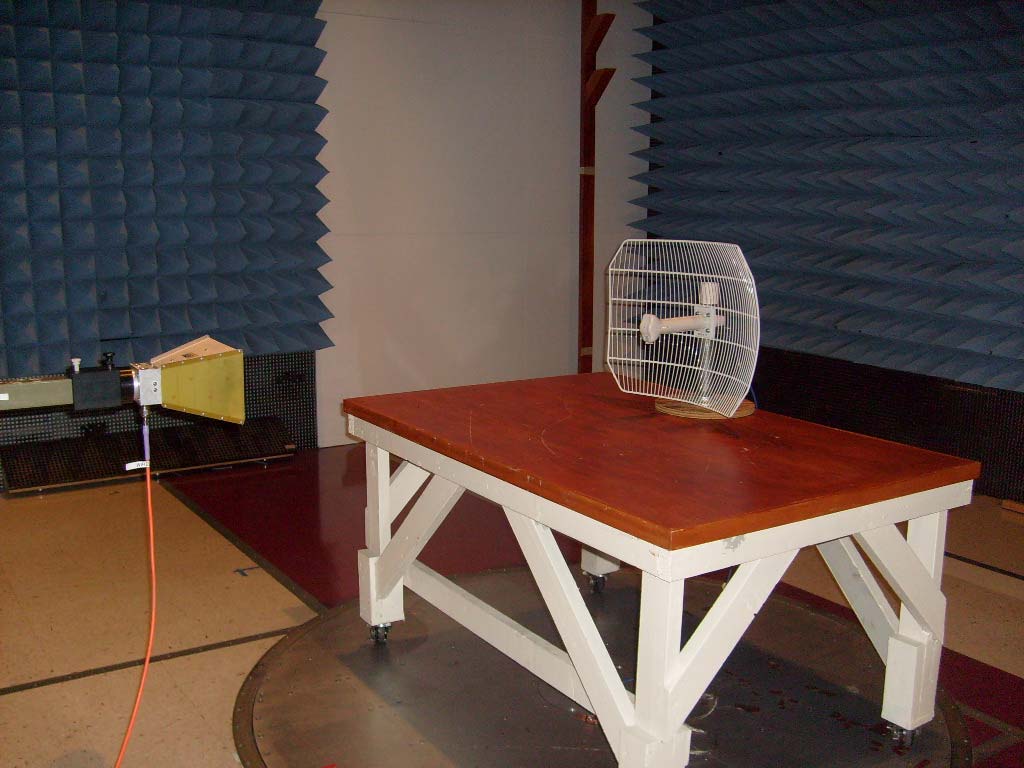

| Test Setup Photos | Test Setup Photos | 2016-08-22 | PDF 437.7 KB |
| Test Photos | Test Setup Photos | 2009-12-22 | PDF 437.7 KB |
| Test Report | Test Report | 2016-08-22 | PDF 1.5 MB |
| Agent Authorization Letter | Cover Letter(s) | 2016-08-22 | PDF 33.8 KB |
| Antenna Data Sheets | Cover Letter(s) | 2016-08-22 | PDF 162.4 KB |
| Antenna Expiration | Cover Letter(s) | 2016-08-22 | PDF 27.9 KB |
| Request for Confidentiality Letter | Cover Letter(s) | 2016-08-22 | PDF 514.1 KB |
| Confidentiality letter | Cover Letter(s) | 2009-12-22 | PDF 522.8 KB |
| Correspondence | Cover Letter(s) | 2009-12-22 | PDF 37.3 KB |
| MPE | RF Exposure Info | 2016-08-22 | PDF 26.5 KB |
| MPE | RF Exposure Info | 2009-12-22 | PDF 26.4 KB |
| antenna data sheets | RF Exposure Info | 2009-12-22 | PDF 161.6 KB |
| Internal Photos Metadata only | Internal Photos | PDF 785.5 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 120.8 KB | |
| Schematics Metadata only | Schematics | PDF 1.7 MB | |
| Theory of Operation Metadata only | Operational Description | PDF 107.1 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 38.2 KB |
Application Information
| Application ID | 3HTfTqjad3LulaukGg0iSg== |
|---|---|
| Final Action Date | 2016-08-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0012268215 |
| Model | M5G |
| Frequency Range | 5745-5825 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | LiteBeam M5-23 |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com  , 385-293-3532 |
| Agent | Amanda Amanda Amanda, Compliance Testing, LLC, 480-926-3100 |
| Test Firm | Greg Kovolenko, EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INC, greg.kovolenko@metlabs.com  , 4108444071 |
| TCB Email | amandar@compliancetesting.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 136.9 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The 22dBi dish antenna and 28dBi grid antenna are for point-to-point applications only |
