FCC ID SWX-NBE5AC16
Access Point
by Ubiquiti Inc.
Grantee Code: SWX Product Code: NBE5AC16
Latest application date: 2015-10-15
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5255-5340 MHz | Class II permissive change or modification of presently authorized equipment | 2015-10-15 |
| 5160-5245 MHz | Original Equipment | 2015-09-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2015-11-09 | PDF 3.5 MB |
| Manual | Users Manual | 2015-10-15 | PDF 3.6 MB |
| Internal Photos | Internal Photos | 2015-11-09 | PDF 422.4 KB |
| External Photos | External Photos | 2015-11-09 | PDF 593.3 KB |
| Label and Location | ID Label/Location Info | 2015-09-25 | PDF 719.2 KB |

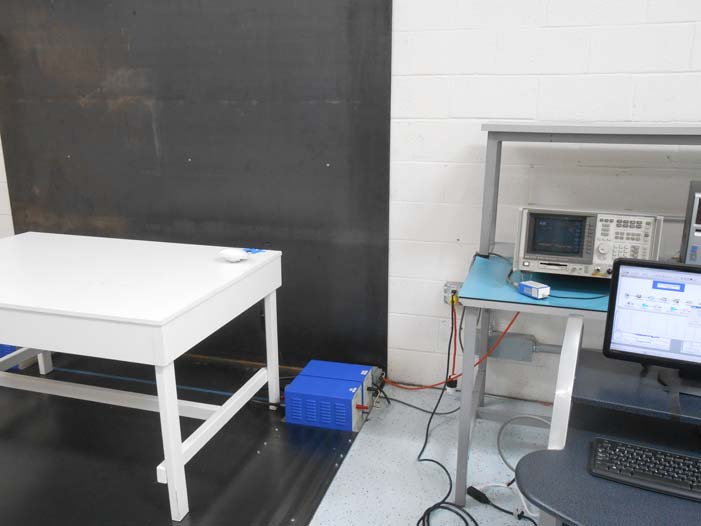

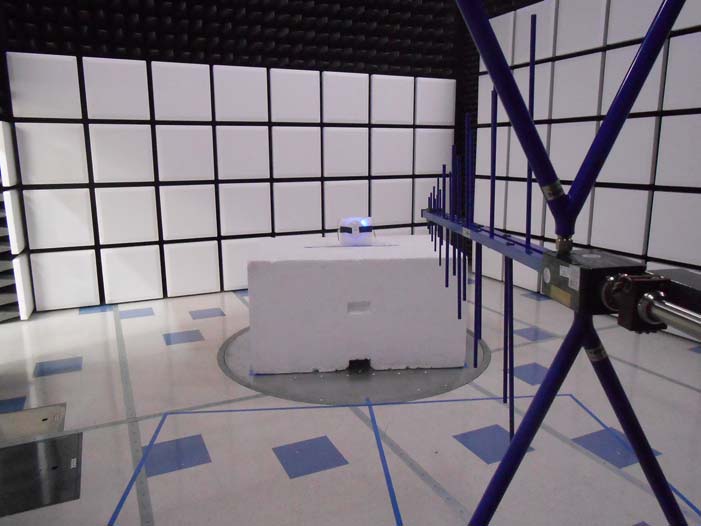

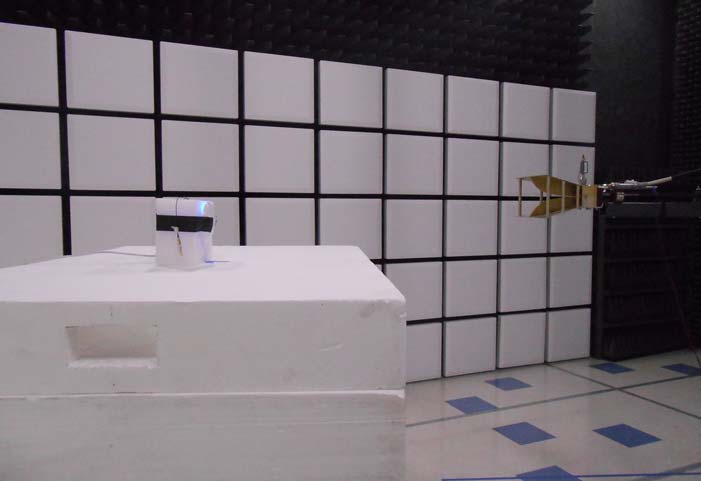

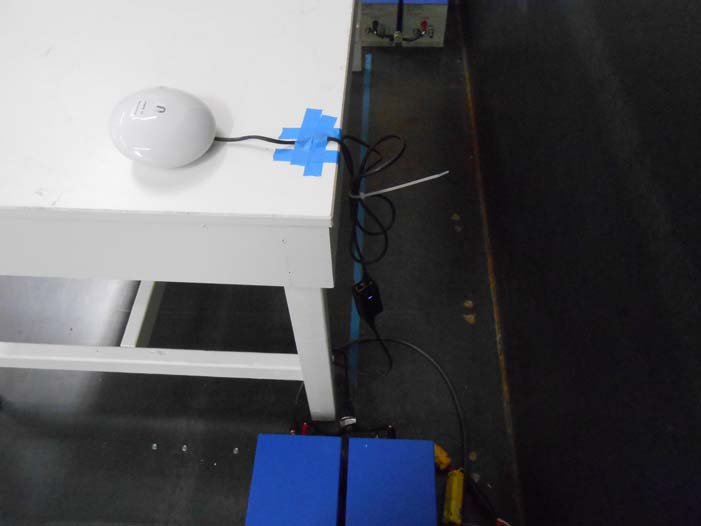

| Test Setup Photos | Test Setup Photos | 2015-11-09 | PDF 165.4 KB |
| Annex A DFS | Test Report | 2015-10-15 | PDF 407.8 KB |
| Annex A UNII-2 | Test Report | 2015-10-15 | PDF 4.4 MB |
| Annex B DFS | Test Report | 2015-10-15 | PDF 110.9 KB |
| Annex B UNII-2 | Test Report | 2015-10-15 | PDF 254 KB |
| Annex C DFS | Test Report | 2015-10-15 | PDF 21 KB |
| Annex C UNII-2 | Test Report | 2015-10-15 | PDF 1.9 MB |
| Annex D DFS | Test Report | 2015-10-15 | PDF 248.2 KB |
| Annex D UNII-2 | Test Report | 2015-10-15 | PDF 169.4 KB |
| Annex E UNII-2 | Test Report | 2015-10-15 | PDF 305.7 KB |
| Part 15.407 DFS | Test Report | 2015-10-15 | PDF 928.4 KB |
| Part 15.407 UNII-2 | Test Report | 2015-10-15 | PDF 605.5 KB |
| ANnex E UNII-3 | Test Report | 2015-09-25 | PDF 296.8 KB |
| Annex A UNII-1 | Test Report | 2015-09-25 | PDF 2.2 MB |
| Annex A UNII-3 | Test Report | 2015-09-25 | PDF 1.9 MB |
| Annex B UNII-1 | Test Report | 2015-09-25 | PDF 228 KB |
| Annex B UNII-3 | Test Report | 2015-09-25 | PDF 318.6 KB |
| Annex C UNII-1 | Test Report | 2015-09-25 | PDF 1 MB |
| Annex C UNII-3 | Test Report | 2015-09-25 | PDF 1 MB |
| Annex D UNII-1 | Test Report | 2015-09-25 | PDF 87 KB |
| Annex D UNII-3 | Test Report | 2015-09-25 | PDF 88.1 KB |
| Annex E UNII-1 | Test Report | 2015-09-25 | PDF 292.4 KB |
| Part 15.407 UNII-1 | Test Report | 2015-09-25 | PDF 543.2 KB |
| Part 15.407 UNII-3 | Test Report | 2015-09-25 | PDF 249.4 KB |
| Attestation Bridgemode | Attestation Statements | 2015-10-15 | PDF 168 KB |
| Agent Auth | Cover Letter(s) | 2015-10-15 | PDF 33.3 KB |
| C2PC Expedite Metadata only | Cover Letter(s) | 2015-10-15 | PDF 22.5 KB |
| C2PC Letter | Cover Letter(s) | 2015-10-15 | PDF 22.9 KB |
| DFS C2PC Expedite | Cover Letter(s) | 2015-10-15 | PDF 22.5 KB |
| Correspondence | Cover Letter(s) | 2015-09-25 | PDF 107.3 KB |
| Long Term Conf. | Cover Letter(s) | 2015-09-25 | PDF 19.2 KB |
| Short Term Conf. | Cover Letter(s) | 2015-09-25 | PDF 18.5 KB |
| Part 1.1310 UNII-2 | RF Exposure Info | 2015-10-15 | PDF 270.3 KB |
| Part 1.1310 UNII-1 | RF Exposure Info | 2015-09-25 | PDF 348.2 KB |
| Part 1.1310 UNII-3 | RF Exposure Info | 2015-09-25 | PDF 327.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 6.9 KB | |
| Schematics Metadata only | Schematics | PDF 291.5 KB | |
| Theory of OP Metadata only | Operational Description | PDF 16.9 KB | |
| Security Info Metadata only | SDR Software/Security Inf | PDF 209.7 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 70.9 KB |
Application Information
| Application ID | OZ1uxXMpOne8dvsVMtn+wg== |
|---|---|
| Final Action Date | 2015-10-15 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0012268215 |
| Model | NBE5AC16 |
| Frequency Range | 5255-5340 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Access Point |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com  , 385-293-3532 |
| Test Firm | Michael Schafer, Compliance Testing, LLC, michaels@compliancetesting.com  , 480-926-3100 |
| TCB Email | dianaw@compliancetesting.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Class II permissive change to add DFS bands. Power output listed is aggregate conducted. Device operates with specific antennas in a Point-to-Point, 2 x 2 MIMO configuration as described in this filing. This device supports 10MHZ, 20MHz, 30MHz, 40MHz, 50MHz, 60MHz and 80MHz BW modes. The antenna(s) used with this transmitter must be professionally installed and provide a minimum of 26.4cm separation from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| OZ1uxXMpOne8dvsVMtn+wg== | 2015-10-15 | Class II permissive change or modification of presently authorized equipment |
| tggOp1ZNWeSFljBkcStl7g== | 2015-09-25 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application tggOp1ZNWeSFljBkcStl7g==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 |
Date of Grant: 09/25/2015 Application Dated: 09/25/2015 |
| Ubiquiti Inc. |
| 685 Third Avenue |
| New York, NY 10017 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-NBE5AC16 |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 MO | 15E | 5160.0 - 5245.0 | 0.191 | ||
| 38 MO | 15E | 5735.0 - 5840.0 | 0.218 |
| Power output listed is aggregate conducted. Device operates with specific antennas in a Point-to-Point, 2 x 2 MIMO configuration as described in this filing. This device supports 10MHZ, 20MHz, 30MHz, 40MHz, 50MHz, 60MHz and 80MHz BW modes. The antenna(s) used with this transmitter must be professionally installed and provide a minimum of 26.4cm separation from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application tggOp1ZNWeSFljBkcStl7g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Ubiquiti Inc. 685 Third Avenue New York, NY 10017 United States |
Date of Grant: 09/25/2015 Application Dated: 09/25/2015 |
| Attention: Mark Feil , Compliance Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | SWX-NBE5AC16 |
| Name of Grantee: | Ubiquiti Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 MO | 15E | 5160.0 - 5245.0 | 0.191 | ||
| 38 MO | 15E | 5735.0 - 5840.0 | 0.218 |
| Power output listed is aggregate conducted. Device operates with specific antennas in a Point-to-Point, 2 x 2 MIMO configuration as described in this filing. This device supports 10MHZ, 20MHz, 30MHz, 40MHz, 50MHz, 60MHz and 80MHz BW modes. The antenna(s) used with this transmitter must be professionally installed and provide a minimum of 26.4cm separation from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
