FCC ID SWX-NBEAC
NBE-5AC-19
by Ubiquiti Inc.
Grantee Code: SWX Product Code: NBEAC
Latest application date: 2016-08-30
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5735-5840 MHz | Original Equipment | 2016-08-30 |
| 5735-5840 MHz | Original Equipment | 2015-06-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-08-30 | PDF 2 MB |
| User Manual | Users Manual | 2015-12-23 | PDF 2 MB |
| Internal Photos | Internal Photos | 2016-08-30 | PDF 2.4 MB |
| Internal Photos | Internal Photos | 2015-12-23 | PDF 2.4 MB |
| External Photos | External Photos | 2016-08-30 | PDF 999.3 KB |
| External Photos | External Photos | 2015-12-23 | PDF 999.2 KB |
| Label and Label Location | ID Label/Location Info | 2016-08-30 | PDF 104.6 KB |
| Label | ID Label/Location Info | 2015-06-29 | PDF 104.6 KB |

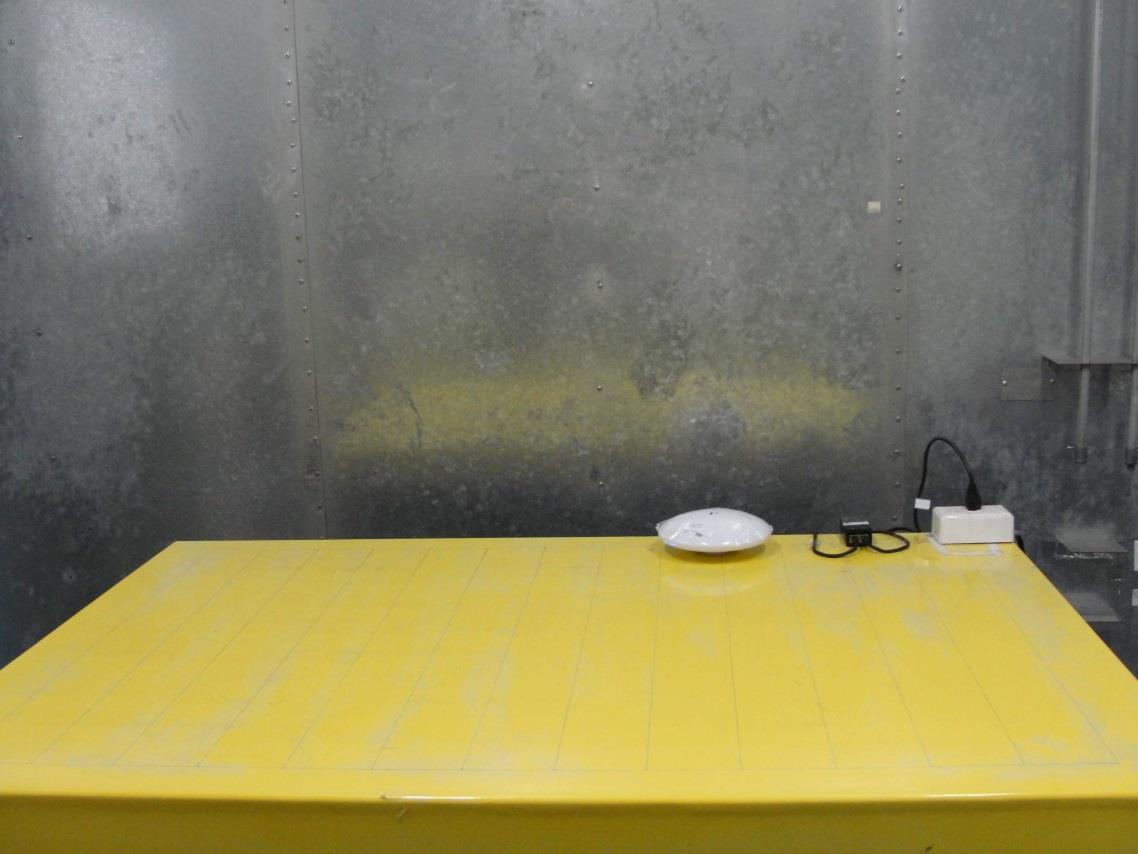

| Test Setup Photos | Test Setup Photos | 2016-08-30 | PDF 233.1 KB |

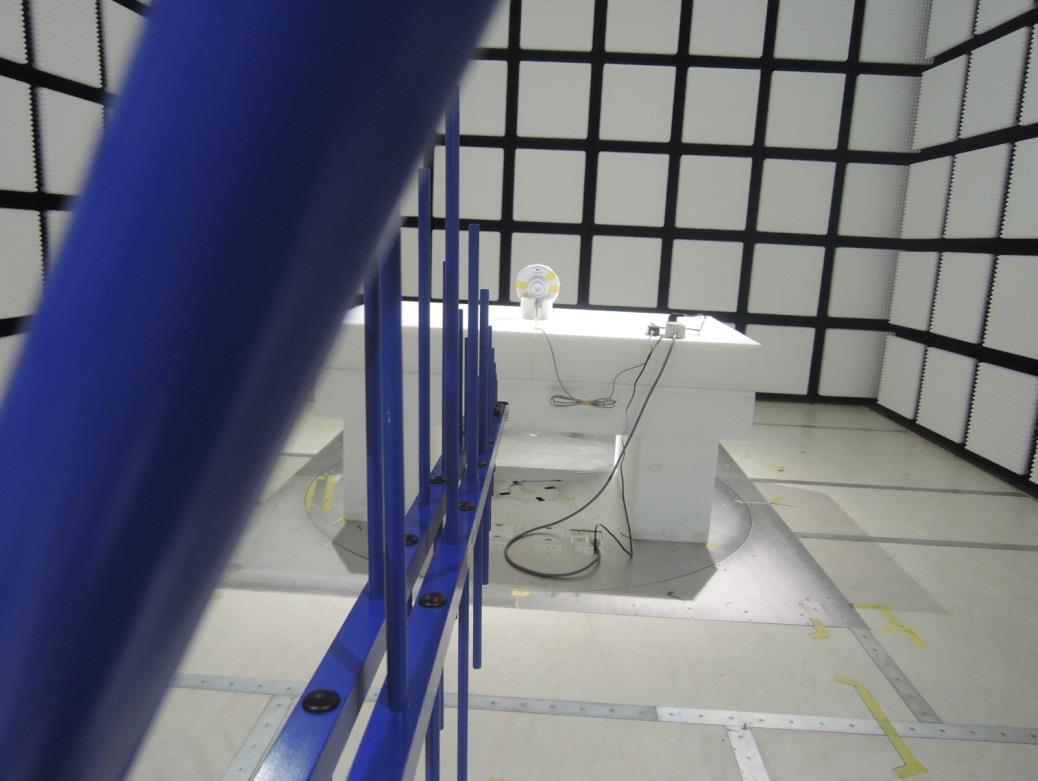

| Test Setup Photos | Test Setup Photos | 2015-12-23 | PDF 235.3 KB |

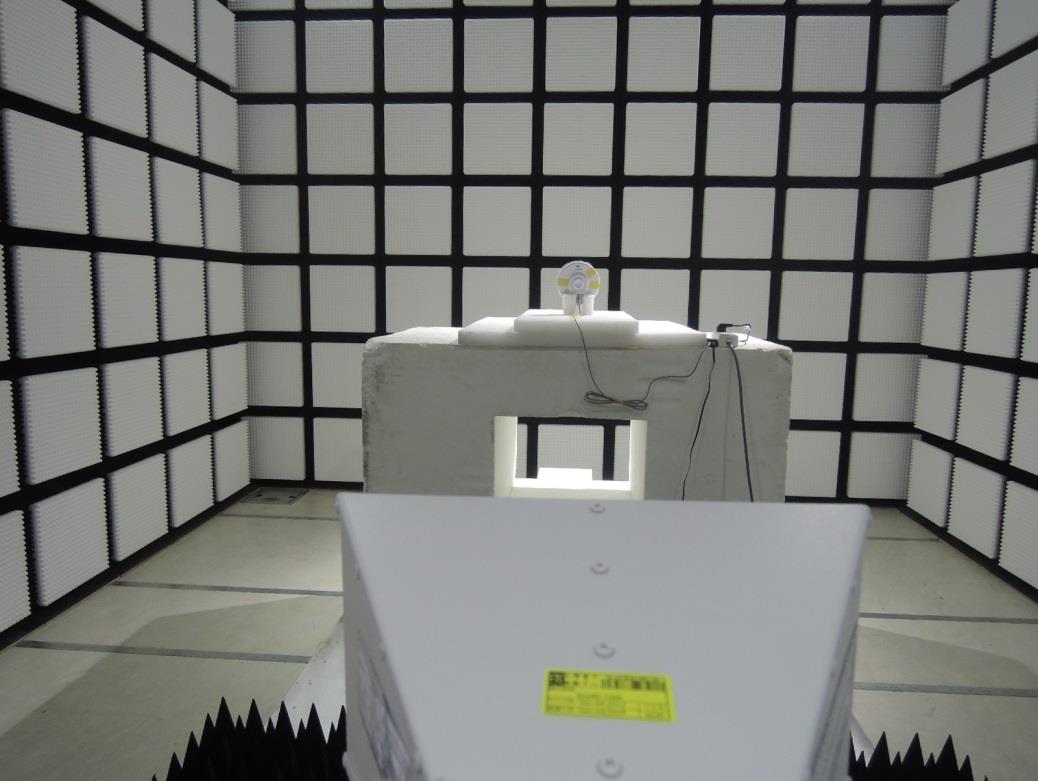

| Test Setup Photos | Test Setup Photos | 2015-12-23 | PDF 287.3 KB |
| Appendix A_Test Report | Test Report | 2016-08-30 | PDF 28.1 KB |
| Appendix B_Test Report | Test Report | 2016-08-30 | PDF 358.5 KB |
| Test Report | Test Report | 2016-08-30 | PDF 233.1 KB |
| Test Report | Test Report | 2015-06-29 | PDF 531.3 KB |
| Test Report DTS | Test Report | 2015-06-29 | PDF 3.5 MB |
| Test Report DTS Appendix A | Test Report | 2015-06-29 | PDF 28.1 KB |
| Test Report DTS Appendix B | Test Report | 2015-06-29 | PDF 362.4 KB |
| Agent Authorization Letter | Cover Letter(s) | 2016-08-30 | PDF 33.8 KB |
| Antenna Expiration | Cover Letter(s) | 2016-08-30 | PDF 84.4 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-08-30 | PDF 83.5 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-06-29 | PDF 85.9 KB |
| POA | Cover Letter(s) | 2015-06-29 | PDF 75.3 KB |
| MPE | RF Exposure Info | 2016-08-30 | PDF 338.2 KB |
| RF Exposure | RF Exposure Info | 2015-06-29 | PDF 338.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 25 KB | |
| Block Diagram System Metadata only | Block Diagram | PDF 16.6 KB | |
| Block Diagram WLAN Metadata only | Block Diagram | PDF 20.9 KB | |
| Schematics Metadata only | Schematics | PDF 344.9 KB | |
| Schematics Metadata only | Schematics | PDF 351.7 KB | |
| Operational Description Metadata only | Operational Description | PDF 9.1 KB | |
| Theory of Operation Metadata only | Operational Description | PDF 123.4 KB | |
| Security Exhibit Metadata only | SDR Software/Security Inf | PDF 452.6 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 54.3 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 55.7 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 76.1 KB |
Application Information
| Application ID | do0D88xQixBVPMEUnxfGug== |
|---|---|
| Final Action Date | 2016-08-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0012268215 |
| Model | NBEAC |
| Frequency Range | 5735-5840 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | NBE-5AC-19 |
| Responsible Party | Mark Feil, Compliance Director, compliance@ui.com  , 385-293-3532 |
| Agent | Amanda Amanda Amanda, Compliance Testing, LLC, 480-926-3100 |
| Test Firm | Jim Tsai, Sporton International Inc, jimtsai@sporton.com.tw  , 88633273456 |
| TCB Email | amandar@compliancetesting.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined output power conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 43 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 10, 20, 30, 40, 50, 60, and 80 MHz bandwidth modes. |
